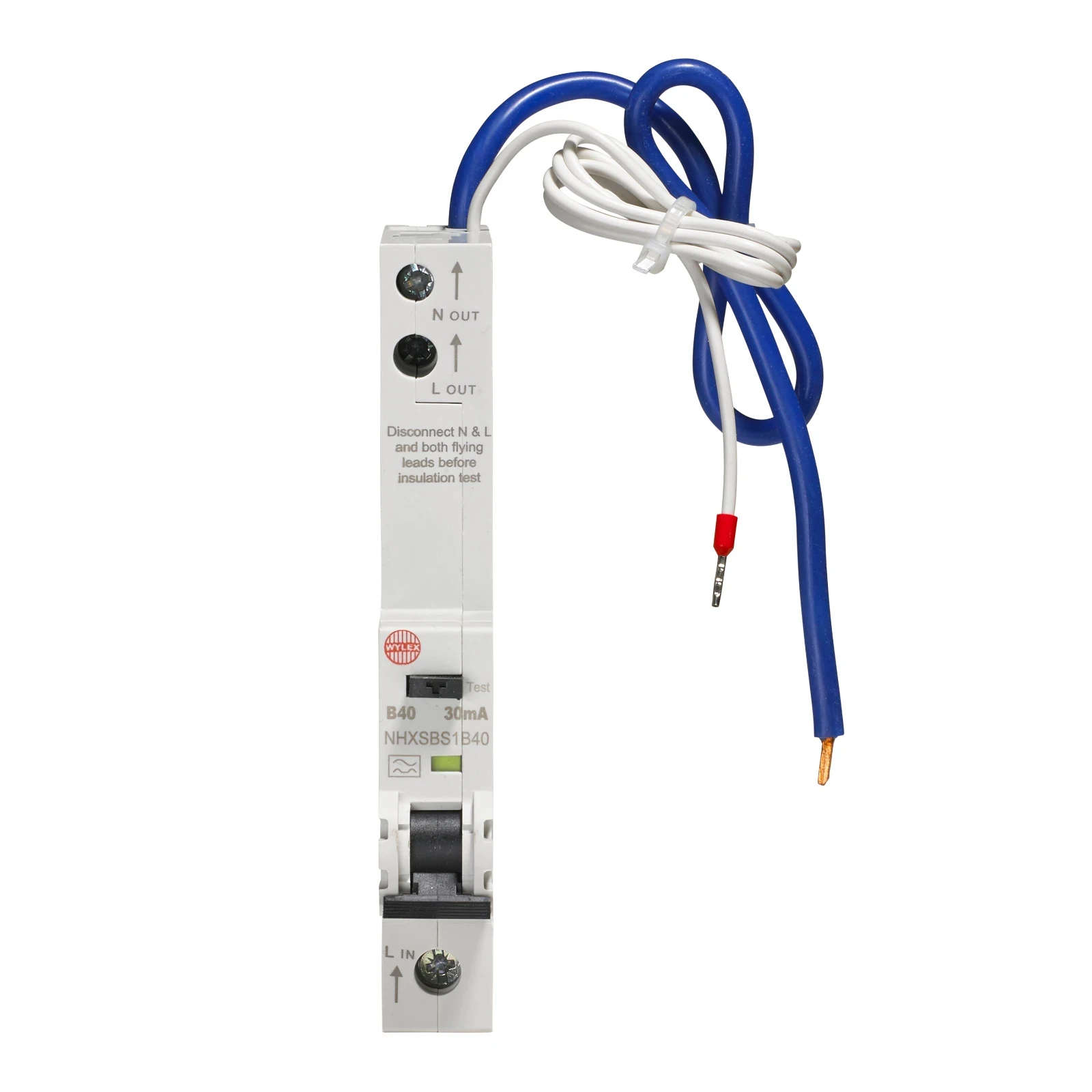

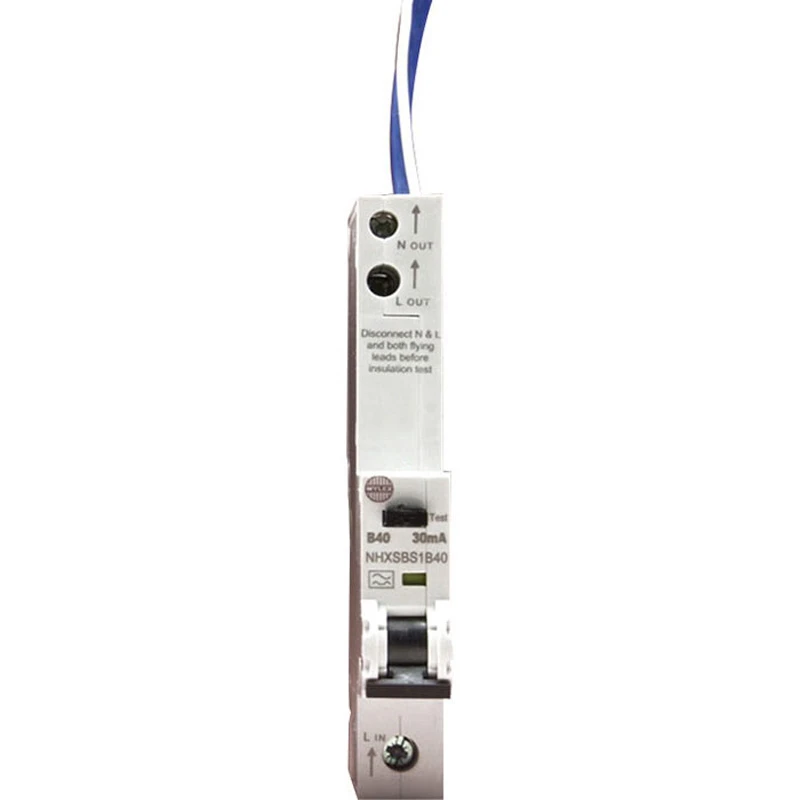

Wylex RCBO SP Class A Type B 1 Module 40A 30mA (NHXSBS1B40)
£39.25 Incl. VAT
· · Easy DIN rail fixing and extraction · · Push to test button · · Single pole switching · · Loss of Neutral Protection · · Real contact position indicator · · Safety terminals · · 30mA Trip sensitivity for protection of personnel and property · · Ambient Temperature -5 to 55°C · · AC leakage current type and B release characteristic
21 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Mounting method DIN rail Rated voltage 230 V Width in number of modular spacings 1 Number of poles (total) 2 Number of protected poles 1 Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated insulation voltage Ui 400 V Rated fault current 0.03 A Current limiting class 3 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated current 40 A Recess depth 74 mm Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Flush-mounted installation No Anti-nuisance tripping version No Concurrently switching N-neutral No With interlocking device No · Technical Data Sheet – Click to Download
