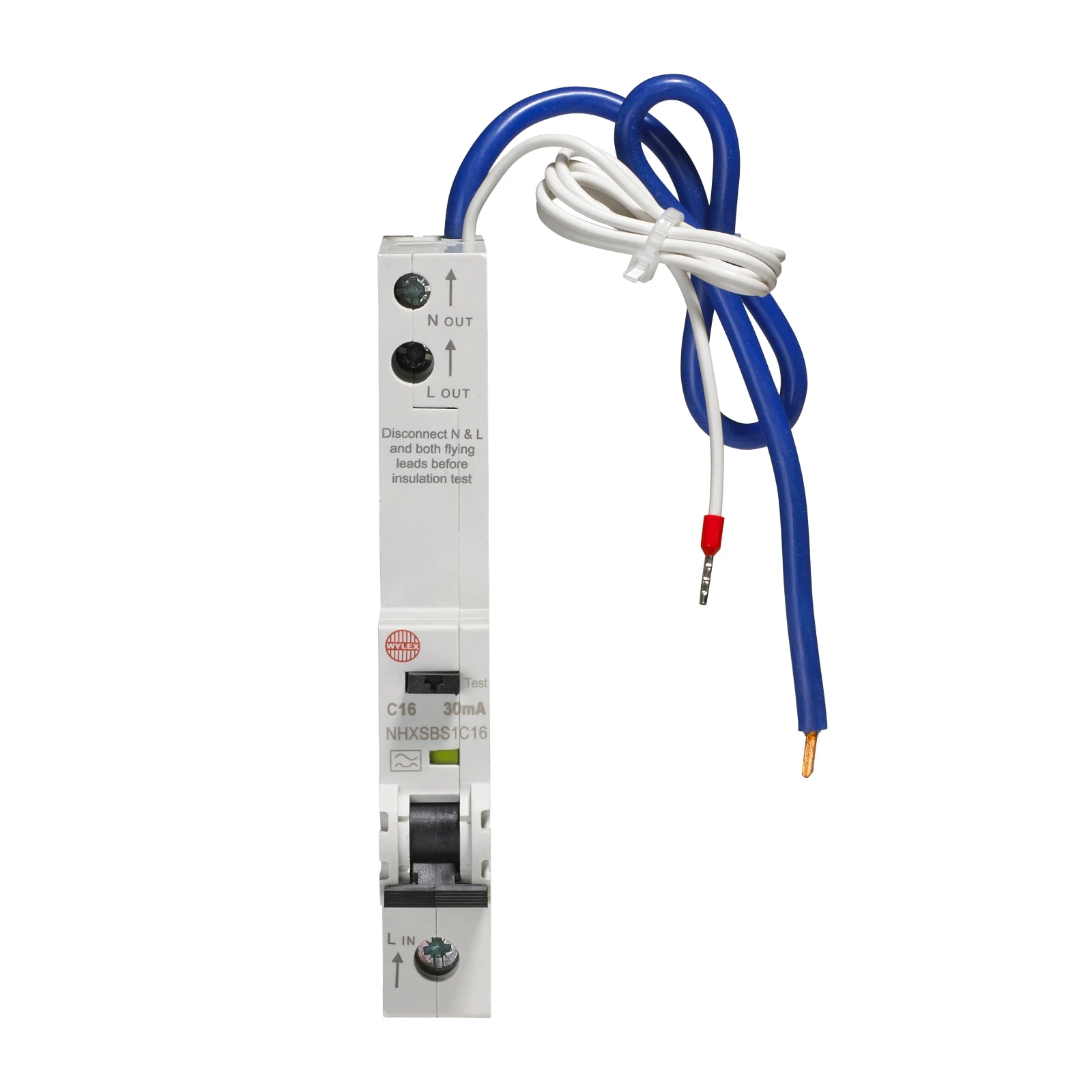

Wylex 16A 30mA SPN C Curve 6kA Type A RCBO
Wylex 16A 30mA SPN C Curve 6kA Type A RCBO

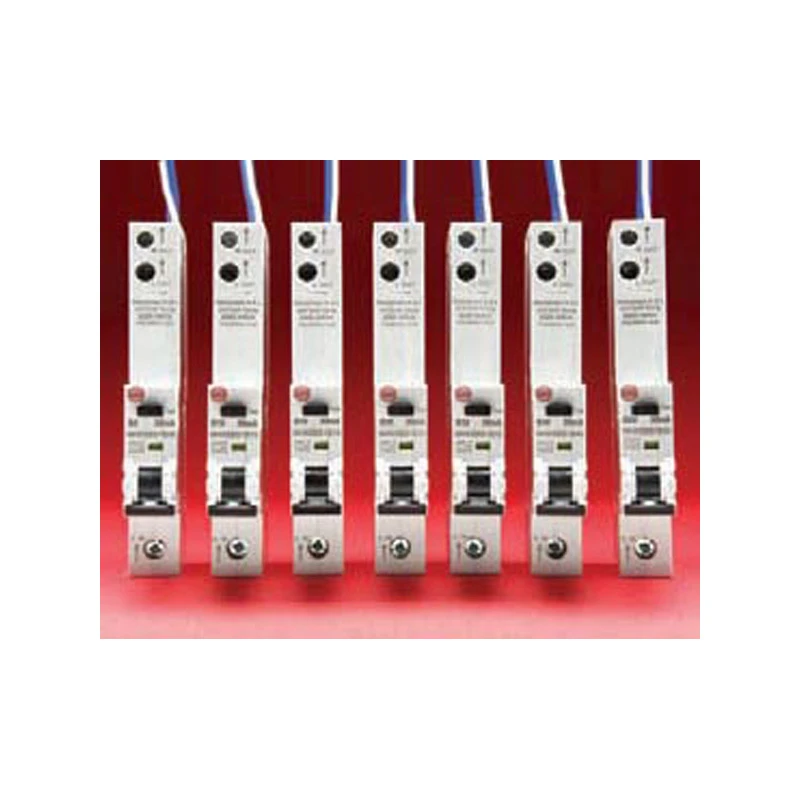

Wylex 16A 30mA SPN C Curve 6kA Type A RCBO - Image 2
Wylex 16A 30mA SPN C Curve 6kA Type A RCBO - Image 3

Wylex 16A 30mA SPN C Curve 6kA Type A RCBO

£44.75 Incl. VAT

Wylex NHX RCBO is a single pole, single module device, suitable for use in NM/NH Consumer Units. This comes with 600mm tail length and has rated 6kA switching with C characteristic curve. · · · Single module, RCBO · · 16A C curve (MCB), 30mA Type A (RCD) · · Single pole · · Balcony terminal position · · Suitable for use within Wylex NM/NH Consumer Units · · Unswitched Neutral · · Tail length 600mm · · BS EN 61009 · · AC leakage current type and C release characteristic

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHXSBS1C16 Categories: , , Brand: Product Code: 2500351566

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Mounting method DIN rail Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Over voltage category 3 Number of poles (total) 2 Rated insulation voltage Ui 400 V Width in number of modular spacings 1 Current limiting class 3 Number of protected poles 1 Rated current 16 A Rated fault current 0.03 A Rated voltage 230 V Recess depth 74 mm Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Anti-nuisance tripping version No With interlocking device No · Technical Data Sheet – Click to Download
