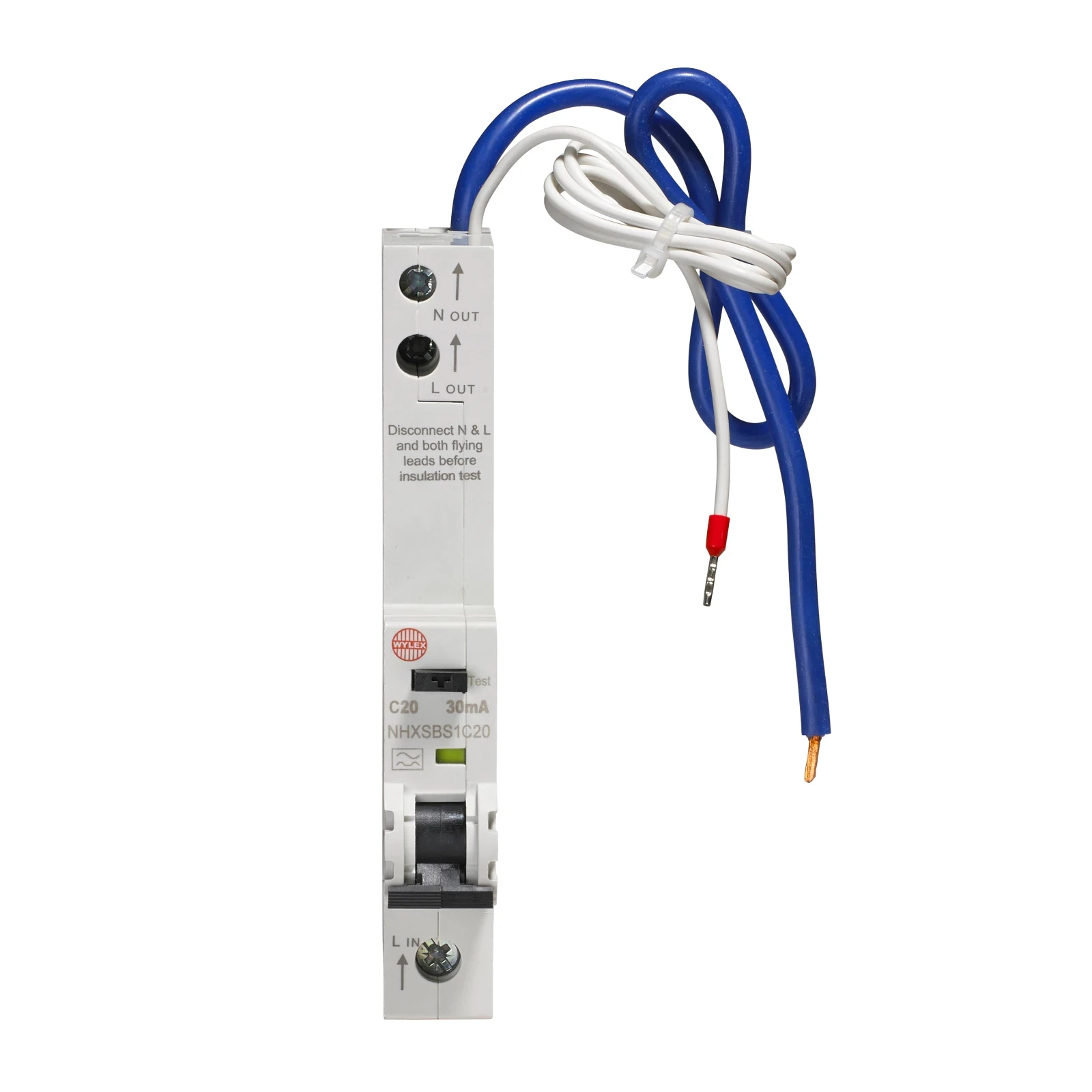

Wylex 20A 30mA SPN C Curve 6kA Type A RCBO
£44.75 Incl. VAT

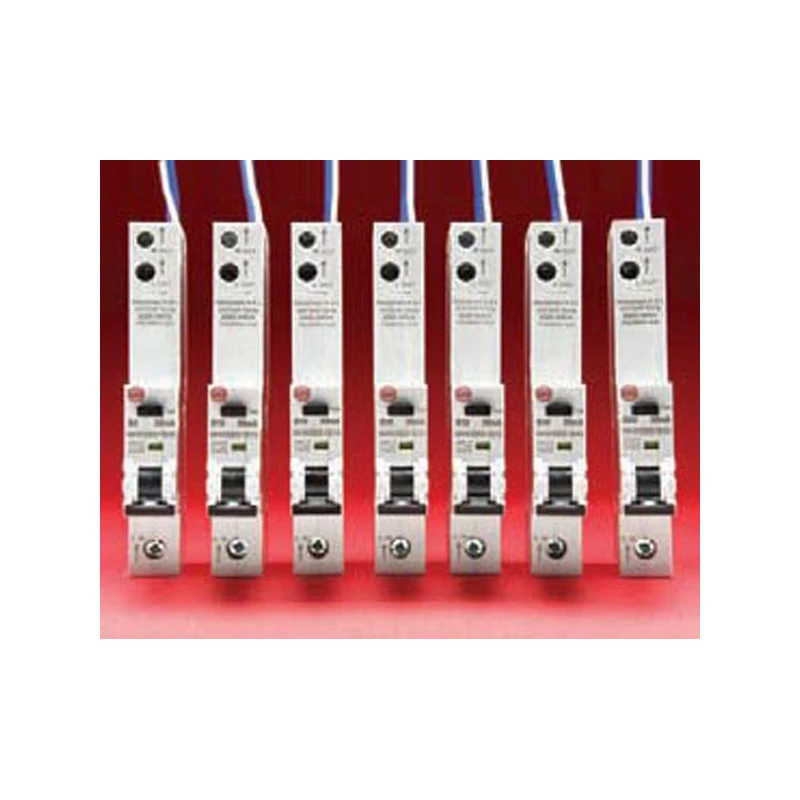

Wylex NHX RCBO is a single pole, single module device, suitable for use in NM/NH Consumer Units. This comes with 600mm tail length and has rated 6kA switching with C characteristic curve. · · · Single module, RCBO · · 20A C curve (MCB), 30mA Type A (RCD) · · Single pole · · Balcony terminal position · · Suitable for use within Wylex NM/NH Consumer Units · · Unswitched Neutral · · Tail length 600mm · · BS EN 61009 · · AC leakage current type and C release characteristic
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Mounting method DIN rail Recess depth 74 mm Rated current 20 A Rated voltage 230 V Rated impulse-withstand voltage (Uimp) 4 kV Current limiting class 3 Width in number of modular spacings 1 Number of protected poles 1 Over voltage category 3 Rated fault current 0.03 A Rated insulation voltage Ui 400 V Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Number of poles (total) 2 Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
