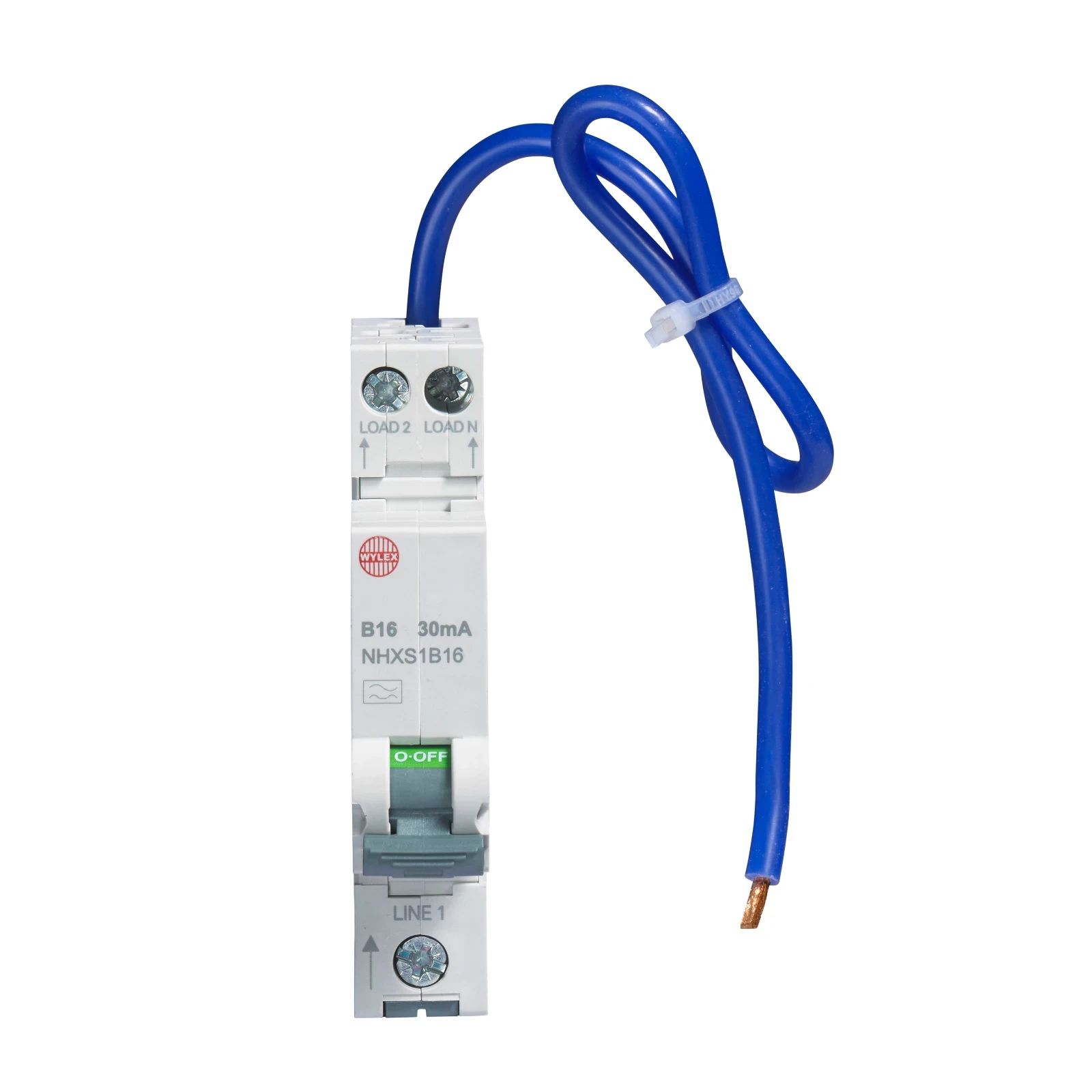

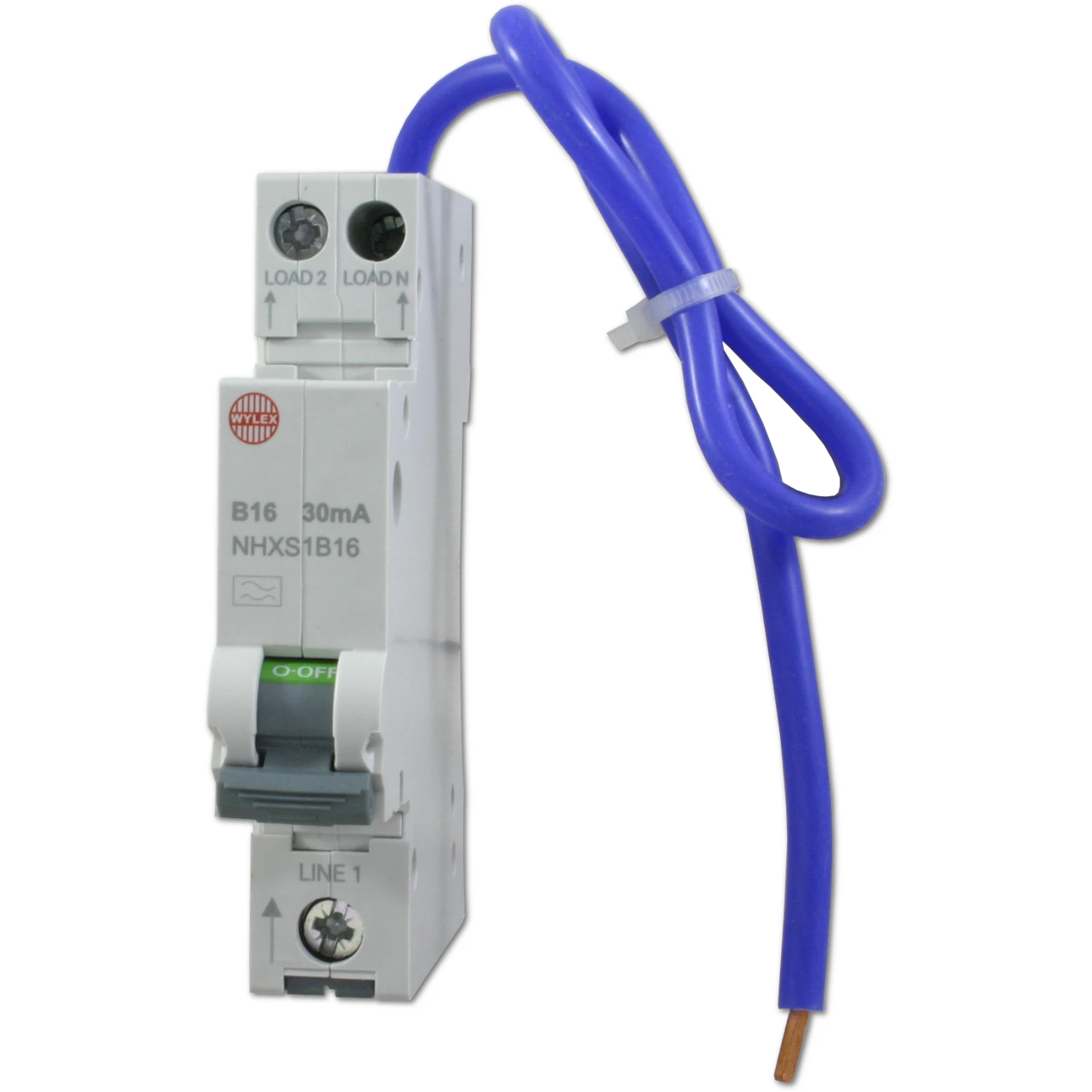

Wylex 16A 30mA SPswN B Curve 6kA Type A Miniature RCBO
Wylex 16A 30mA SPswN B Curve 6kA Type A Miniature RCBO
Wylex 16A 30mA SPswN B Curve 6kA Type A Miniature RCBO - Image 2
Wylex 16A 30mA SPswN B Curve 6kA Type A Miniature RCBO - Image 3

Wylex 16A 30mA SPswN B Curve 6kA Type A Miniature RCBO

£37.64 Incl. VAT

Miniature sized RCBO , 16A – 30mA, single module wide with two pole (SP & N) switching, Type B characteristic protection curve. no miss clamp tunnel terminal connections · · · Single module, Miniature RCBO · · 16A B curve (MCB), 30mA Type A (RCD) · · Single pole with switched neutral · · No miss busbar connection · · Fits NM & NMX consumer units · · Switching capacity 6kA · · Voltage 250V · · Mounting type Din rail · · Ambient Temp -25 – +55C · · IP20

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHXS1B16 Categories: , , Brand: Product Code: 2501076151

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Mounting method DIN rail Recess depth 73 mm Rated current 16 A Rated voltage 230 V Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 2 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Current limiting class 3 Rated insulation voltage Ui 400 V Number of protected poles 1 Width in number of modular spacings 1 Rated fault current 0.03 A Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral Yes Anti-nuisance tripping version No With interlocking device No · Technical Data Sheet – Click to Download
