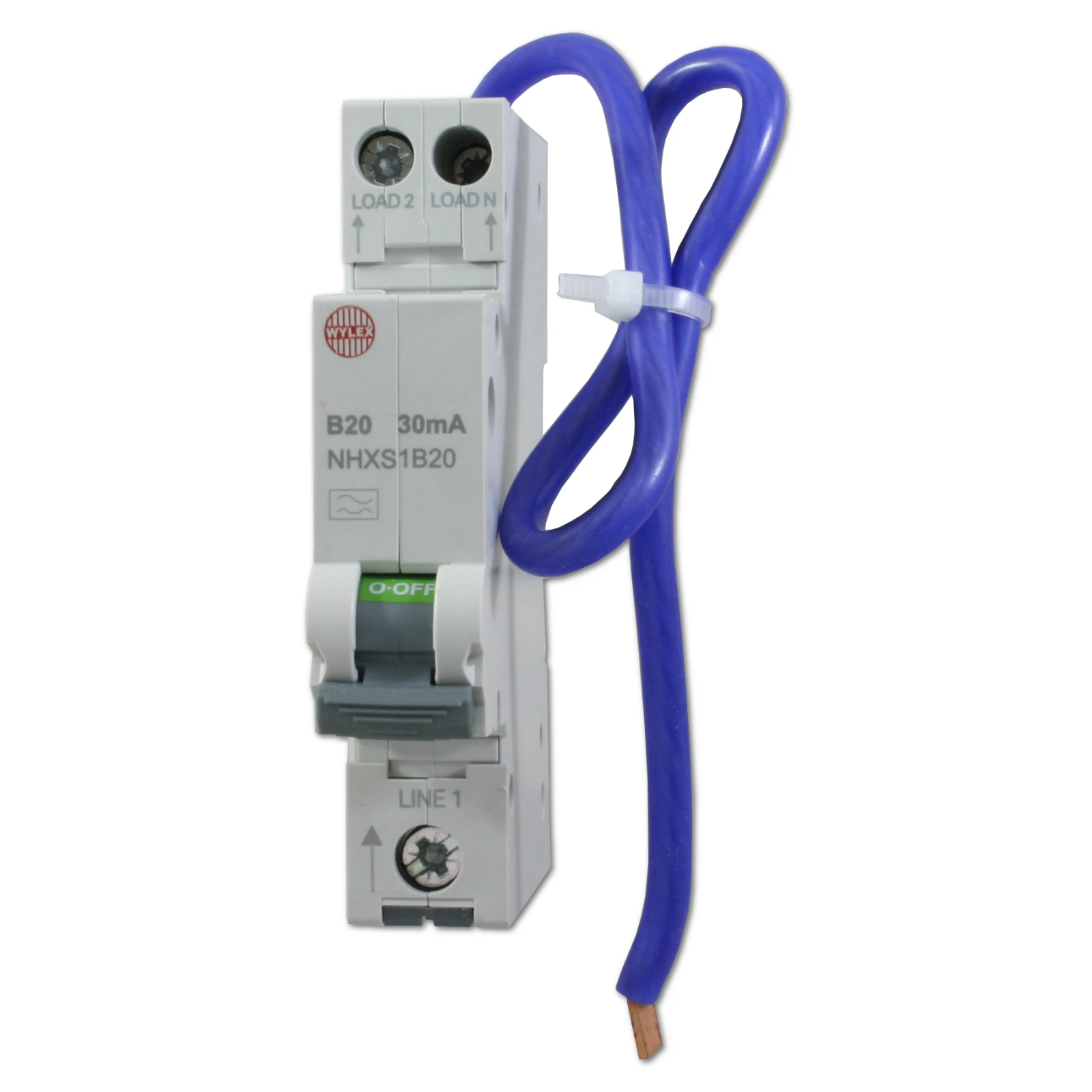

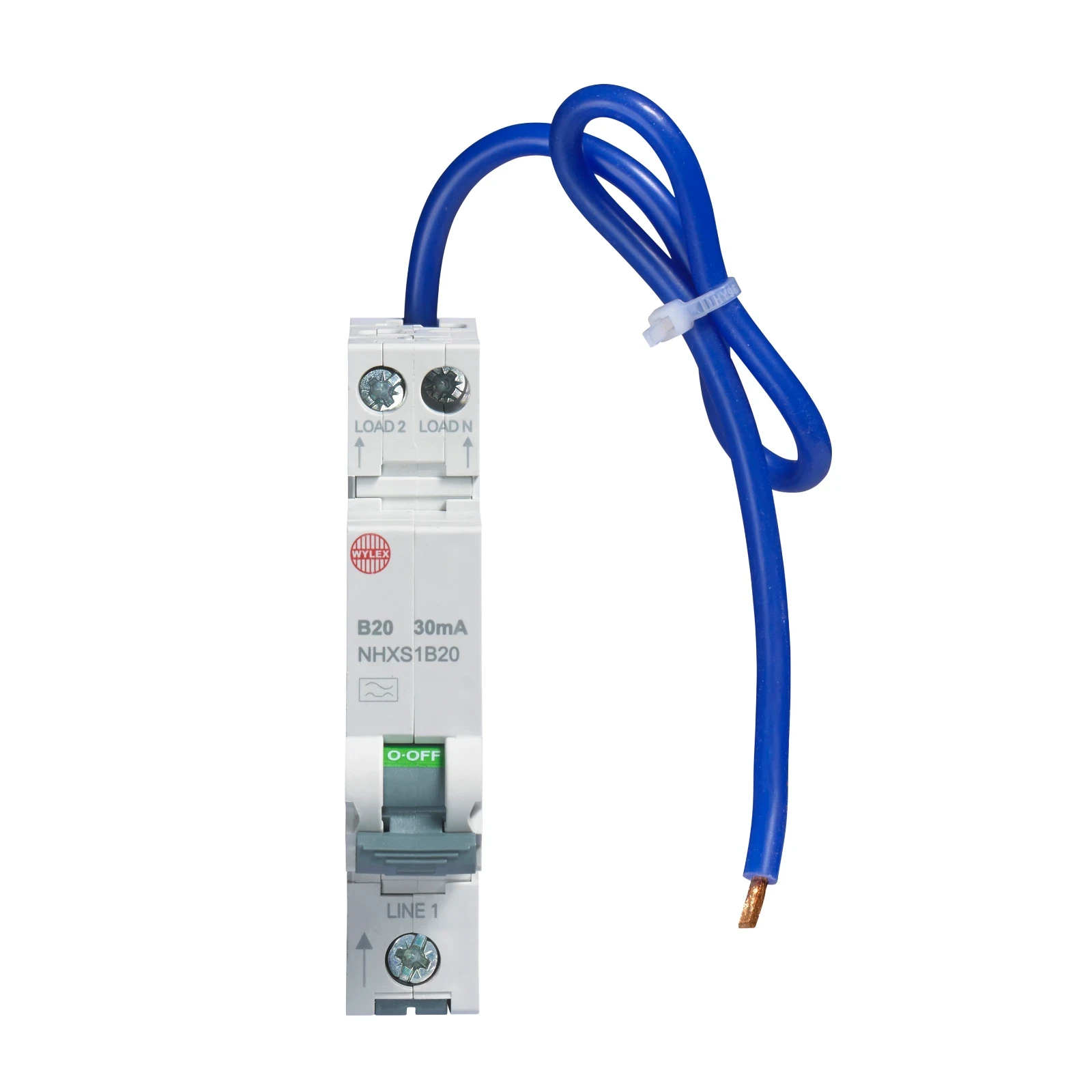

Wylex 20A 30mA SPswN B Curve 6kA Type A Miniature RCBO
£37.64 Incl. VAT
Miniature sized RCBO , 10A – 30mA, single module wide with two pole (SP & N) switching, Type B characteristic protection curve. no miss clamp tunnel terminal connections · · · Single module, Miniature RCBO · · 20A B curve (MCB), 30mA Type A (RCD) · · Single pole with switched neutral · · No miss busbar connection · · Fits NM & NMX consumer units · · Type A – Pure AC and pulsating DC sensitivity · · Tail length 600mm · · Tail length 600mm · · Suitable for use within Wylex NM/NMX Consumer Units · · BS EN 61009
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Mounting method DIN rail Number of poles (total) 2 Rated current 20 A Current limiting class 3 Over voltage category 3 Number of protected poles 1 Width in number of modular spacings 1 Rated fault current 0.03 A Rated insulation voltage Ui 400 V Recess depth 73 mm Rated voltage 230 V Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral Yes With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
