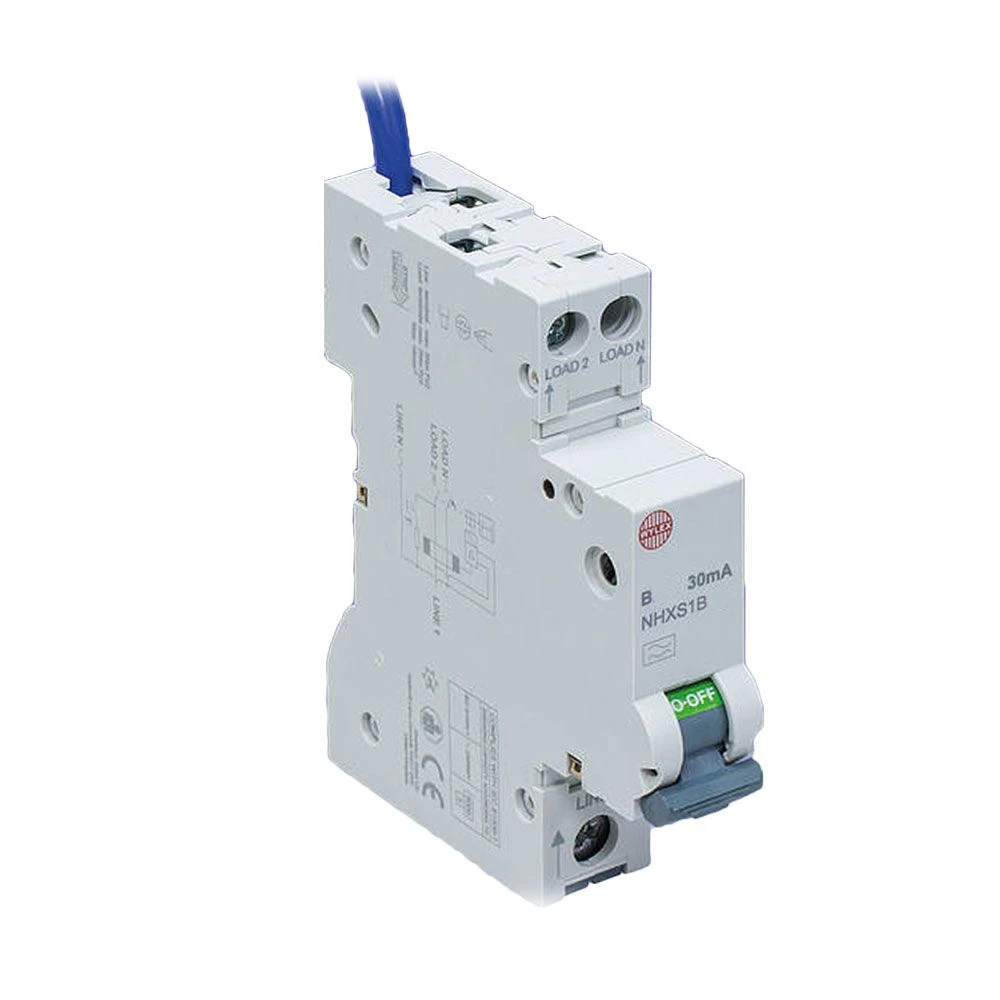

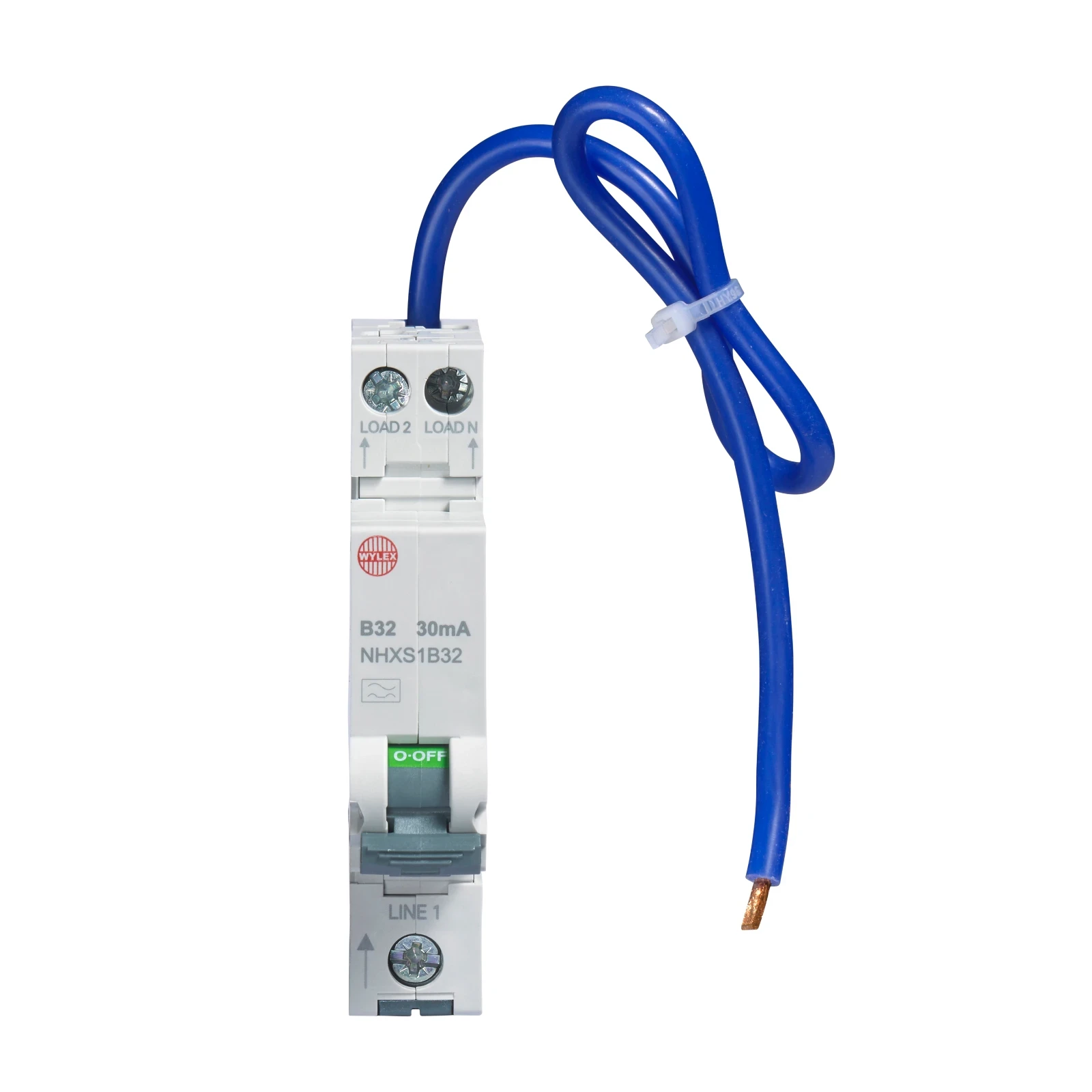

Wylex RCBO SP&N Single Module B Curve 32A 30mA

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Recess depth 73 mm Tripping characteristic (type/curve) B Rated insulation voltage Ui 400 V Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 2 Number of protected poles 1 Current limiting class 3 Rated current 32 A Width in number of modular spacings 1 Rated voltage 230 V Rated fault current 0.03 A Over voltage category 3 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral Yes Anti-nuisance tripping version No Flush-mounted installation No With interlocking device No · Technical Data Sheet – Click to Download
