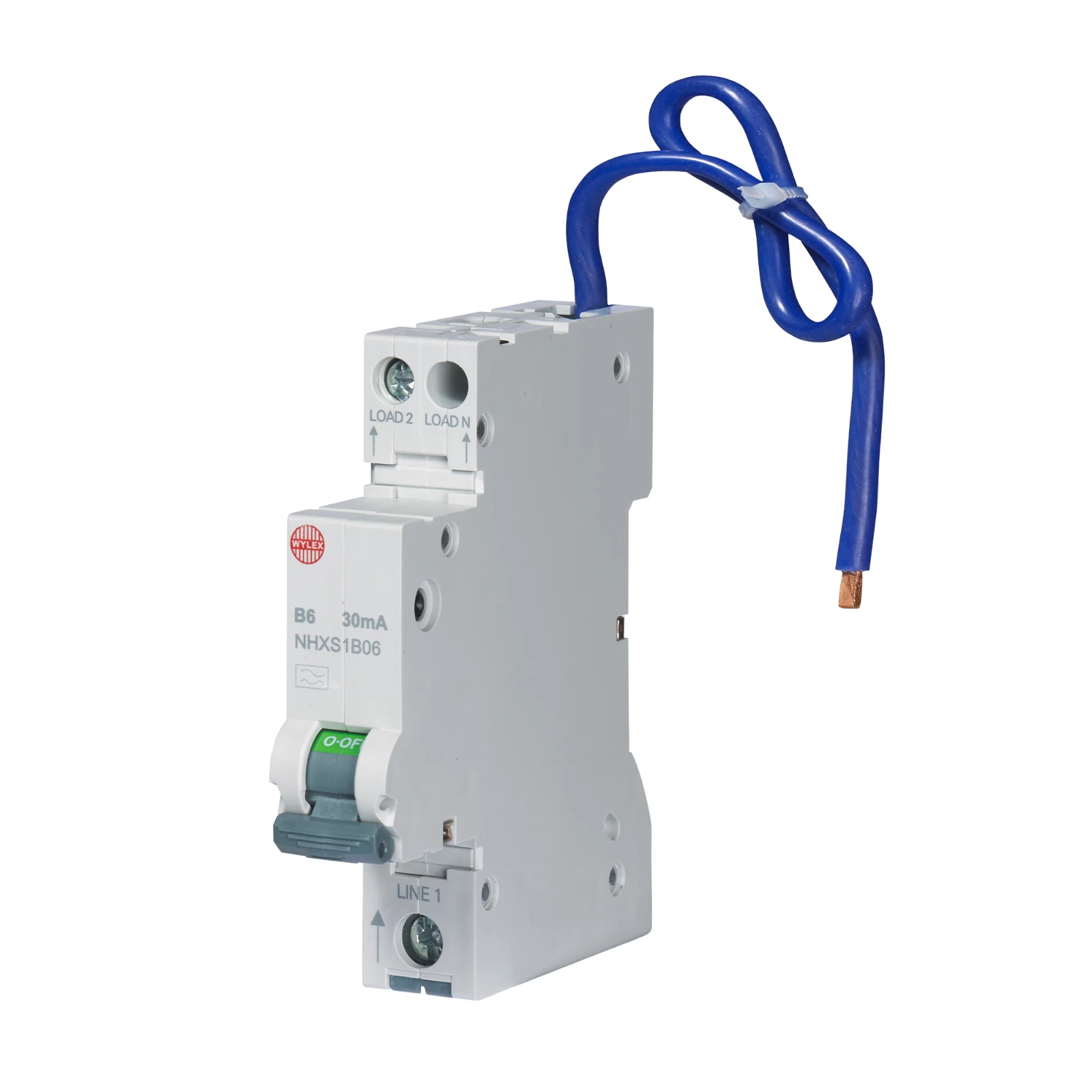

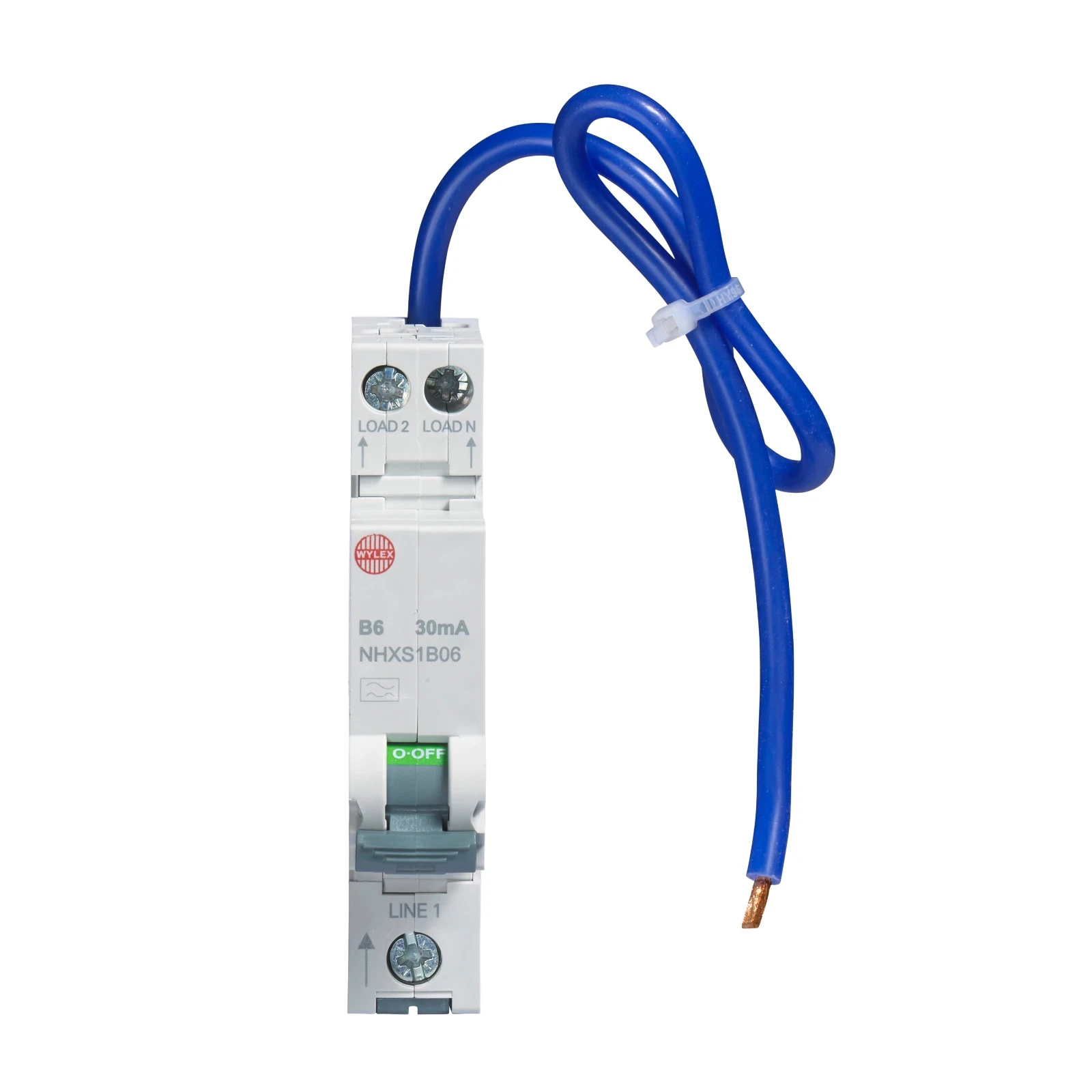

Wylex RCBO SP&N Single Module B Curve 6A 30mA

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Tripping characteristic (type/curve) B Rated current 6 A Rated voltage 230 V Width in number of modular spacings 1 Recess depth 73 mm Rated impulse-withstand voltage (Uimp) 4 kV Over voltage category 3 Number of poles (total) 2 Current limiting class 3 Concurrently switching N-neutral Yes Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 16 mm² Connectable conductor cross section solid-core 0.75 – 16 mm² Rated fault current 0.03 A Rated insulation voltage Ui 400 V Number of protected poles 1 Anti-nuisance tripping version No Flush-mounted installation No With interlocking device No · Technical Data Sheet – Click to Download
