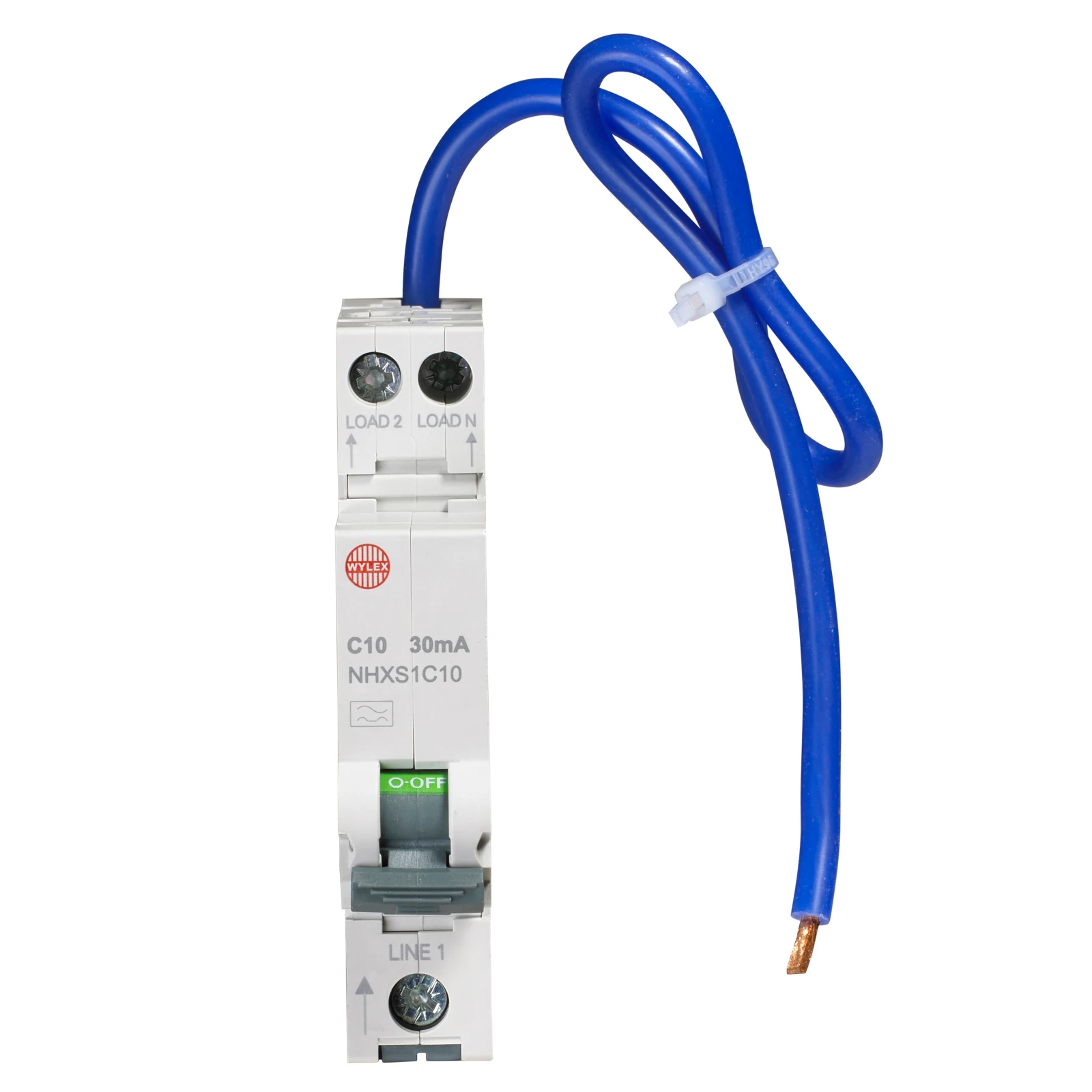

Wylex 10A 30mA SPswN C Curve 6kA Type A Miniature RCBO
Wylex 10A 30mA SPswN C Curve 6kA Type A Miniature RCBO
Wylex 10A 30mA SPswN C Curve 6kA Type A Miniature RCBO - Image 2
Wylex 10A 30mA SPswN C Curve 6kA Type A Miniature RCBO - Image 3

Wylex 10A 30mA SPswN C Curve 6kA Type A Miniature RCBO

£37.64 Incl. VAT

Miniature sized RCBO , 10A – 30mA, single module wide with two pole (SP & N) switching, Type C characteristic protection curve. no miss clamp tunnel terminal connections · · · Single module, Miniature RCBO · · 10A C curve (MCB), 30mA Type A (RCD) · · Single pole with switched neutral · · No miss busbar connection · · Fits NM & NMX consumer units · · Type A – Pure AC and pulsating DC sensitivity · · Tail length 600mm · · Tail length 600mm · · Suitable for use within Wylex NM/NMX Consumer Units · · BS EN 61009

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHXS1C10 Categories: , , Brand: Product Code: 2501076158

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Mounting method DIN rail Rated current 10 A Rated voltage 230 V Recess depth 73 mm Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Number of poles (total) 2 Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Over voltage category 3 Rated insulation voltage Ui 400 V Width in number of modular spacings 1 Current limiting class 3 Rated fault current 0.03 A Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Anti-nuisance tripping version No With interlocking device No Concurrently switching N-neutral Yes · Technical Data Sheet – Click to Download
