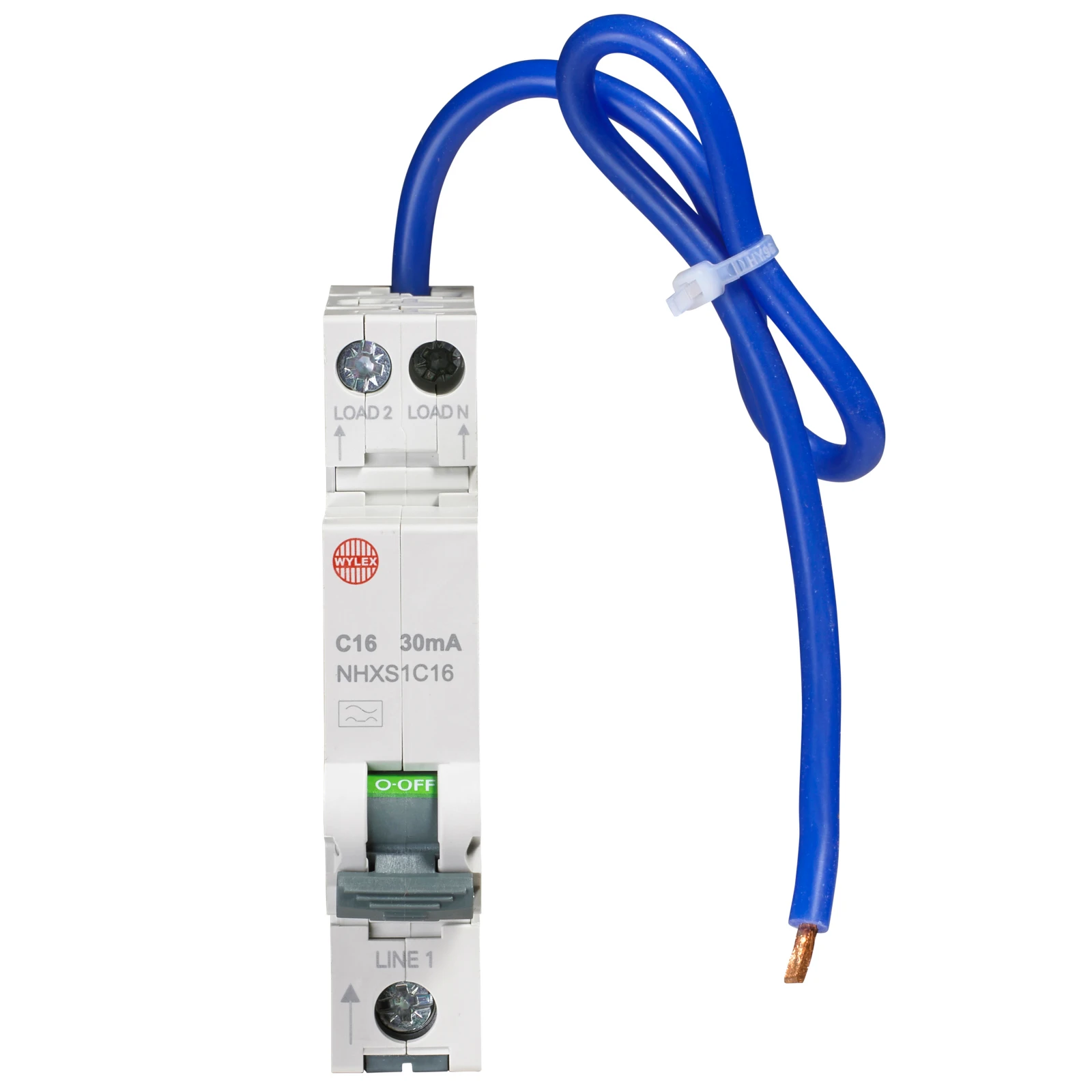

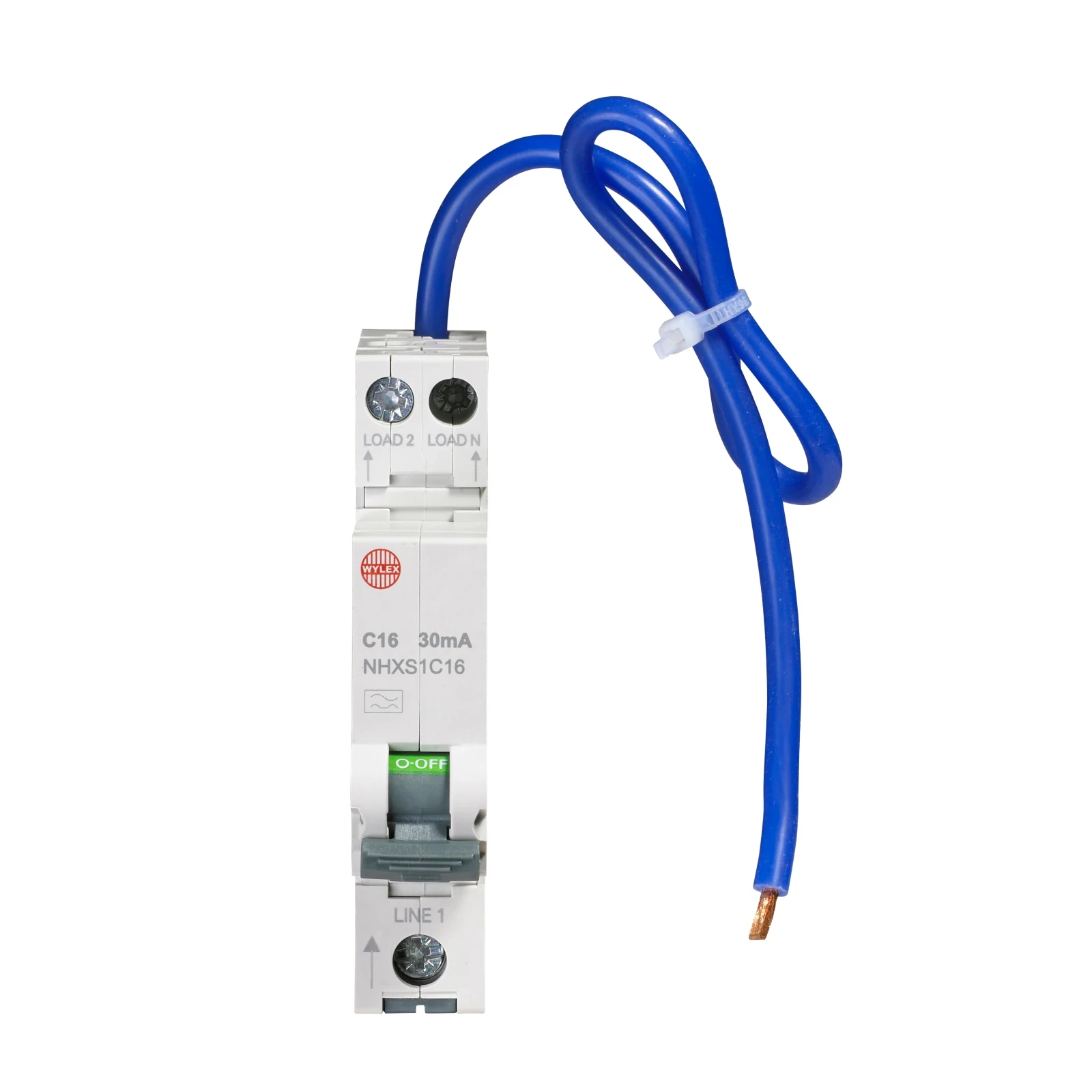

Wylex 16A 30mA SPswN C Curve 6kA Type A Miniature RCBO
£37.64 Incl. VAT
Miniature sized RCBO , 16A – 30mA, single module wide with two pole (SP & N) switching, Type C characteristic protection curve. no miss clamp tunnel terminal connections · · · Single module, Miniature RCBO · · 16A C curve (MCB), 30mA Type A (RCD) · · Single pole with switched neutral · · No miss busbar connection · · Fits NM & NMX consumer units · · Switching capacity 6kA · · Voltage 250V · · Mounting type Din rail · · Ambient Temp -25 – +45C · · IP20
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Mounting method DIN rail Rated voltage 230 V Recess depth 73 mm Rated current 16 A Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Number of poles (total) 2 Rated impulse-withstand voltage (Uimp) 4 kV Over voltage category 3 Number of protected poles 1 Current limiting class 3 Rated fault current 0.03 A Rated insulation voltage Ui 400 V Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C With interlocking device No Anti-nuisance tripping version No Concurrently switching N-neutral Yes · Technical Data Sheet – Click to Download
