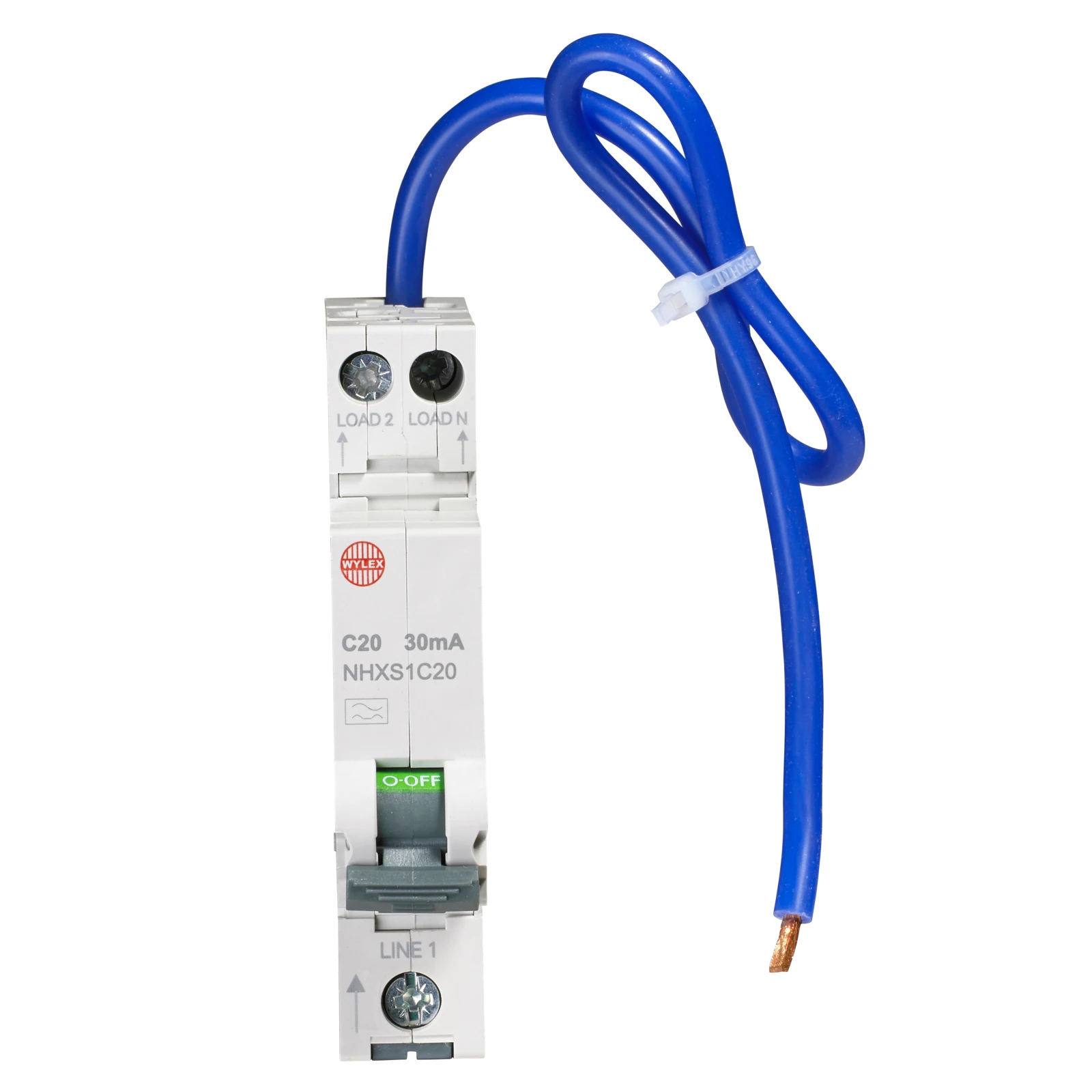

Product image supplied by the manufacturer
Circuit Breakers & Devices

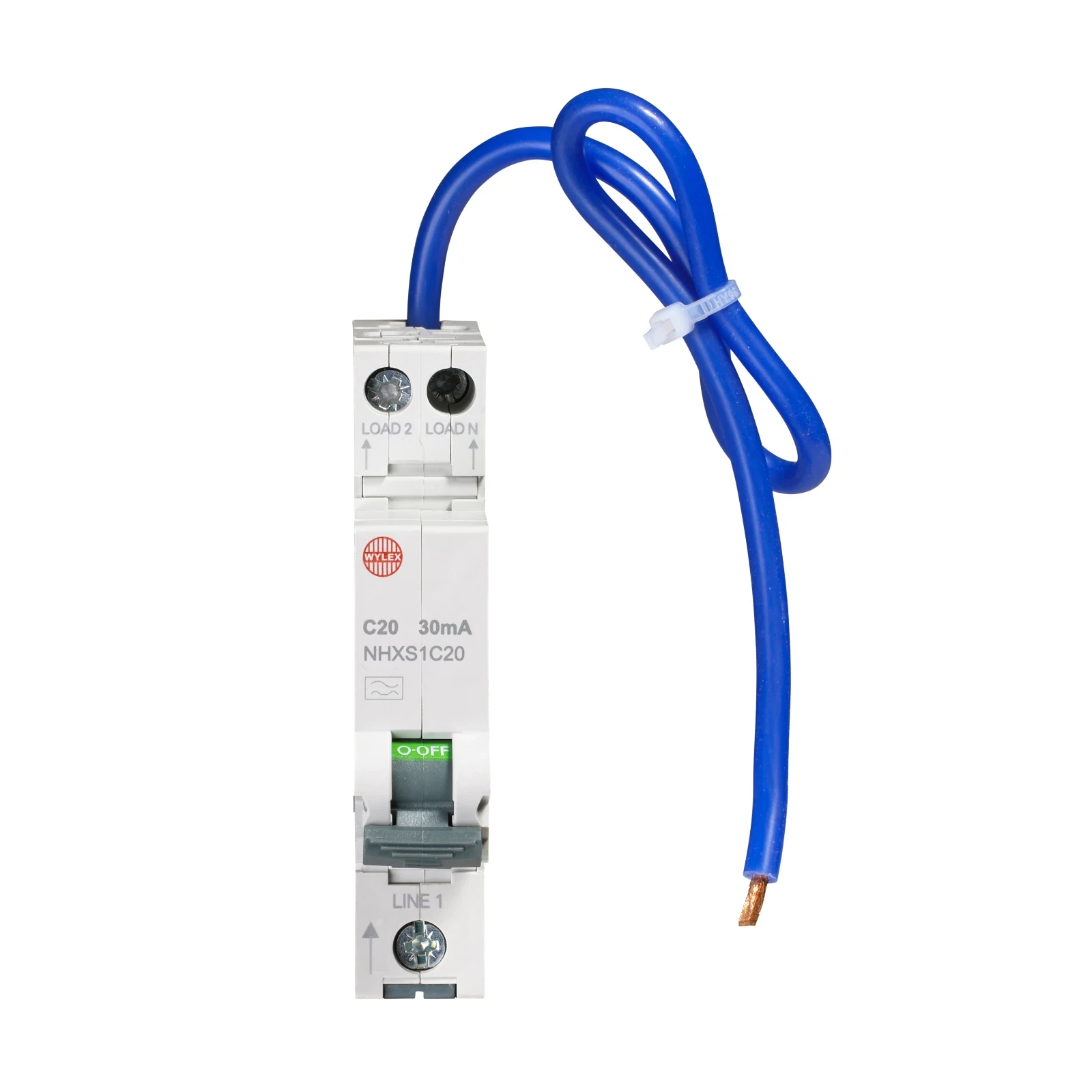

Wylex 20A 30mA SPswN C Curve 6kA Type A Miniature RCBO

Brand: WylexProduct code: NHXS1C20Go Magpie Ref: 5060062361144

Miniature sized RCBO , 20A – 30mA, single module wide with two pole (SP & N) switching, Type C characteristic protection curve. no miss clamp tunnel terminal connections · · · Single module, Miniature RCBO · · 20A C curve (MCB), 30mA Type A (RCD) · · Single pole with switched neutral · · No miss busbar connection · · Fits NM & NMX consumer units · · Miniature Size, 1 module wide · · DIN Rail mounting and retaining clip · · 6 kA breaking capacity · · Type A – Pure AC and pulsating DC sensitivity

£37.64inc VAT£31.37 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Tripping characteristic (type/curve) C Number of poles (total) 2 Recess depth 73 mm Rated current 20 A Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Current limiting class 3 Rated voltage 230 V Number of protected poles 1 Over voltage category 3 Rated fault current 0.03 A Rated insulation voltage Ui 400 V Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 1 Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C With interlocking device No Concurrently switching N-neutral Yes Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
