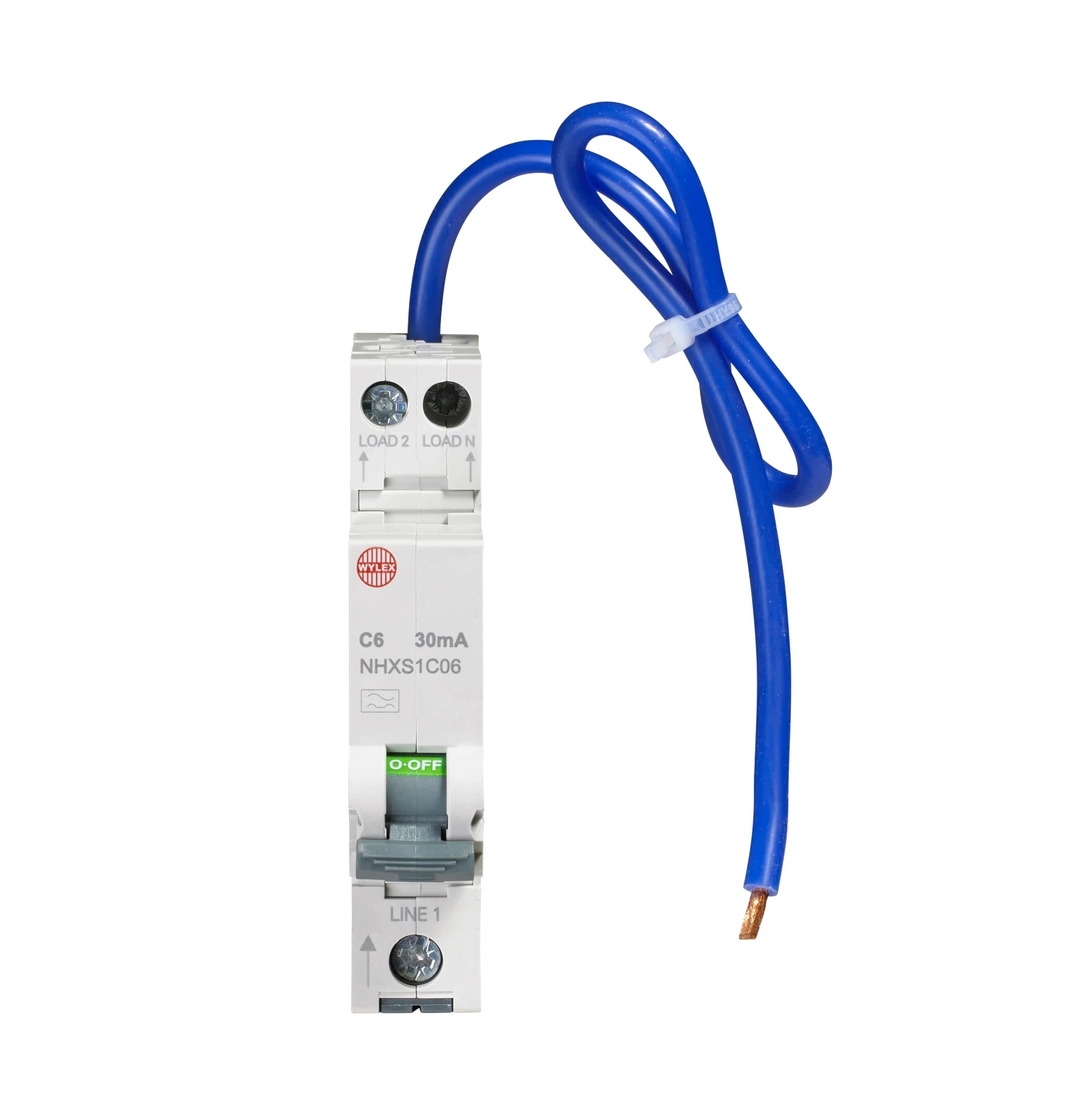

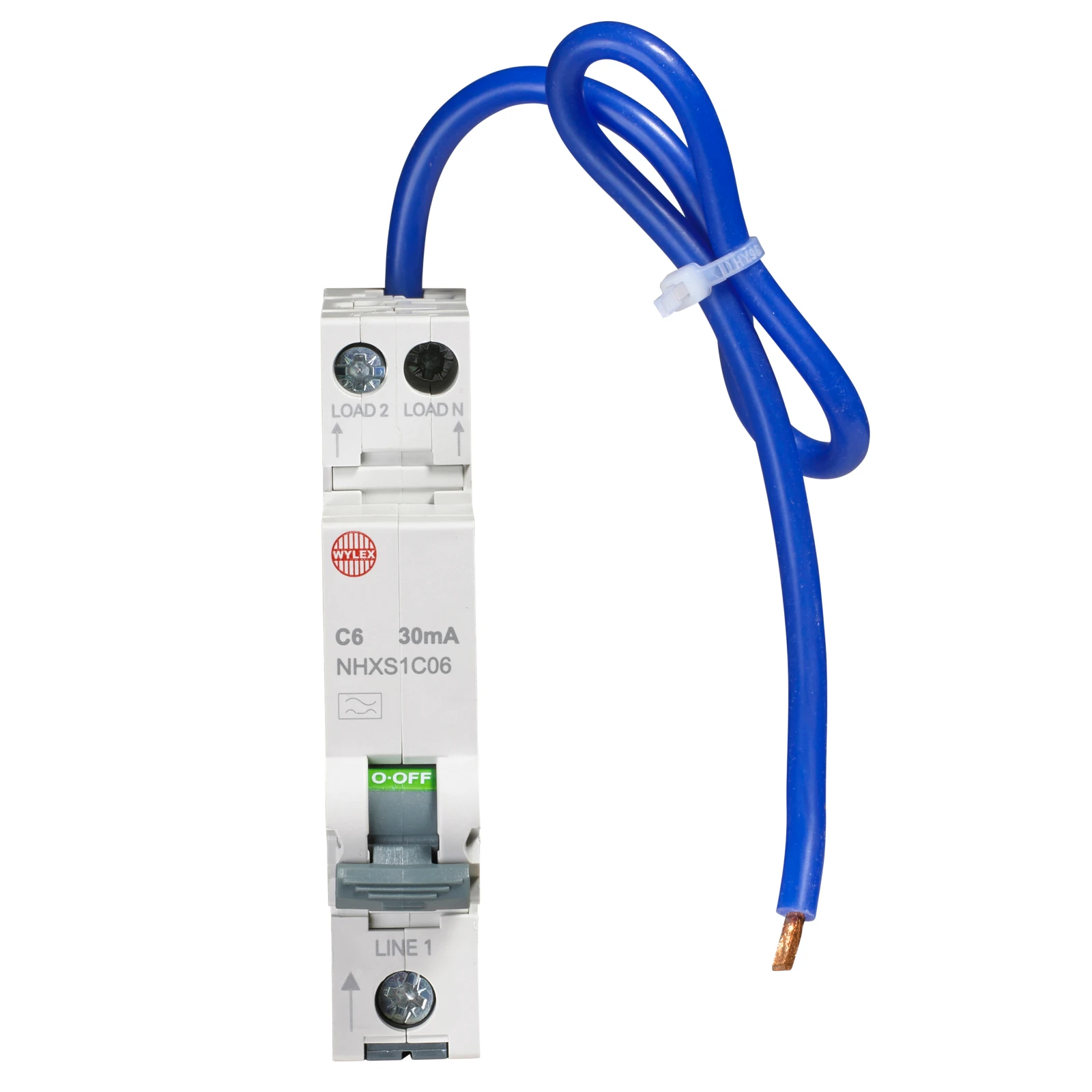

Wylex 6A 30mA SPswN C Curve 6kA Type A Miniature RCBO
Wylex 6A 30mA SPswN C Curve 6kA Type A Miniature RCBO
Wylex 6A 30mA SPswN C Curve 6kA Type A Miniature RCBO - Image 2
Wylex 6A 30mA SPswN C Curve 6kA Type A Miniature RCBO - Image 3

Wylex 6A 30mA SPswN C Curve 6kA Type A Miniature RCBO

£39.36 Incl. VAT

Miniature sized RCBO , 6A – 30mA, single module wide with two pole (SP & N) switching, Type C characteristic protection curve. no miss clamp tunnel terminal connections · · · Single module, Miniature RCBO · · 6A C curve (MCB), 30mA Type A (RCD) · · Single pole with switched neutral · · No miss busbar connection · · Fits NM & NMX consumer units · · Switching capacity 6kA · · Voltage 250V · · Mounting type Din rail · · Ambient Temp -25 – +45C · · IP20

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHXS1C06 Categories: , , , , , Brand: Product Code: 2501076157

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Mounting method DIN rail Recess depth 73 mm Rated current 6 A Rated voltage 230 V Width in number of modular spacings 1 Rated insulation voltage Ui 400 V Current limiting class 3 Number of protected poles 1 Rated fault current 0.03 A Number of poles (total) 2 Over voltage category 3 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral Yes Anti-nuisance tripping version No With interlocking device No · Technical Data Sheet – Click to Download
