Circuit Breakers & Devices

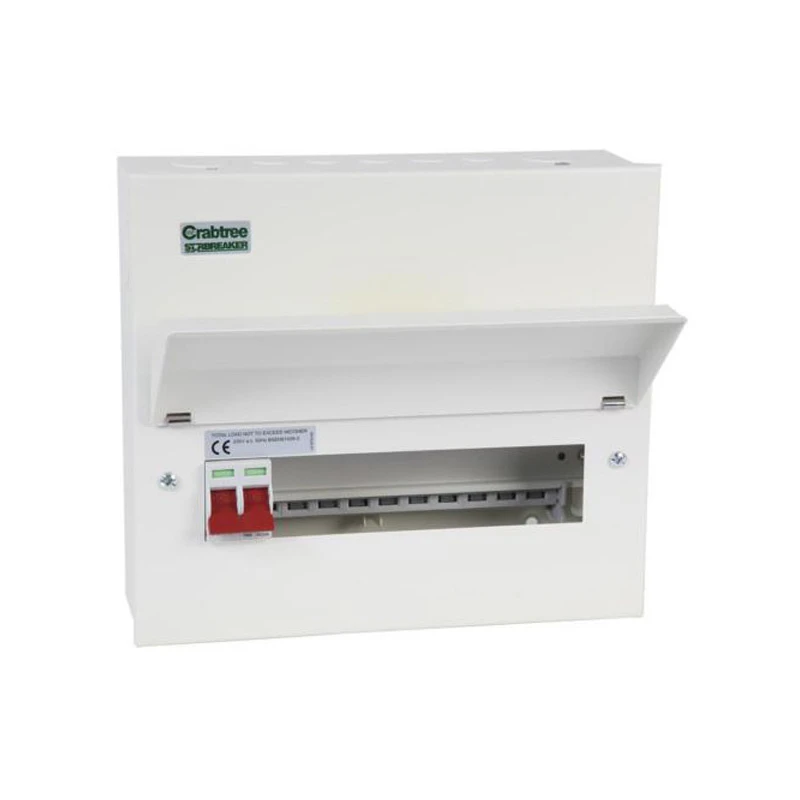

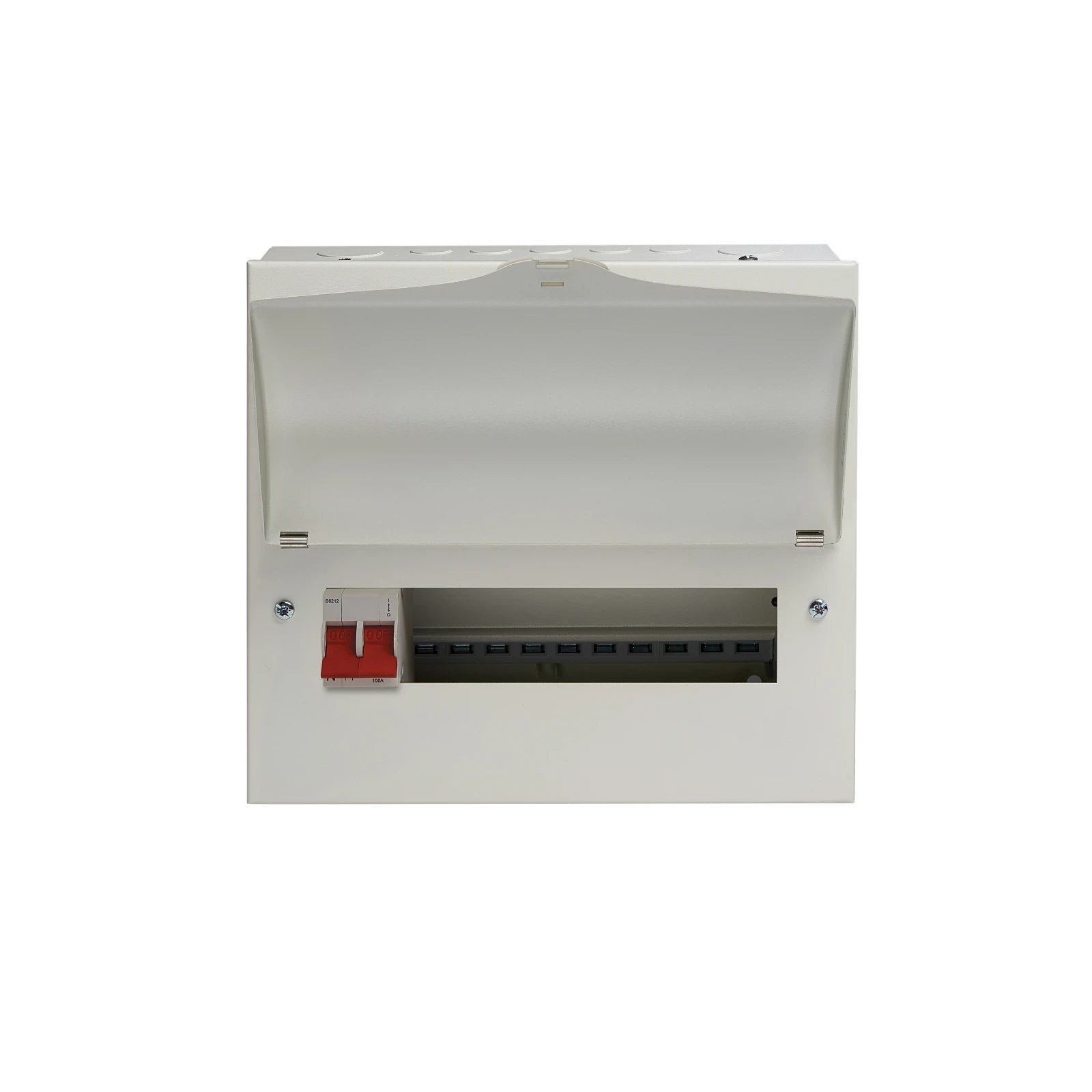

Crabtree 10 Way Consumer Unit Main Switch 100A

Brand: CrabtreeProduct code: 510/2BGo Magpie Ref: 5060062358546

It comes in full metal enclosure, no exposed plastic parts and low smoke fume paint. It has top hinged self-closing, stay shut door and metal hinges. Non combustible cover blanks for unused ways. Cable entry knockouts on all sides and large square knockouts on the rear. · · · 10W Main switch only consumer unit · · Includes a 100A main switch with twin line and neutral supply terminals and a 100A insulated plug in busbar assembly · · Accepts all Starbreaker miniature final circuit protection devices; MCBs, RCBOs and AFDDs · · Accepts the Starbreaker miniature type 2 SPD, SBT2SPD3W/1 · · Constructed from a full metal enclosure with curved visor and temporary locking facility · · Current rating 100A · · No. of outgoing ways 10 · · Mounting type Surface · · Surge Protection Fitted NO · · Voltage 230V

£75.10inc VAT£62.58 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Small distribution board equipped Width 292 mm Depth 121 mm Height 261 mm Width in number of modular spacings 12 Number of phases 1 Main switch rated current 100 A Number of poles main switch 2 Total number of groups 1 Number of outgoing ways 10 Lockable Yes Extension possible No With transparent cover No Over voltage-/surge protection No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
