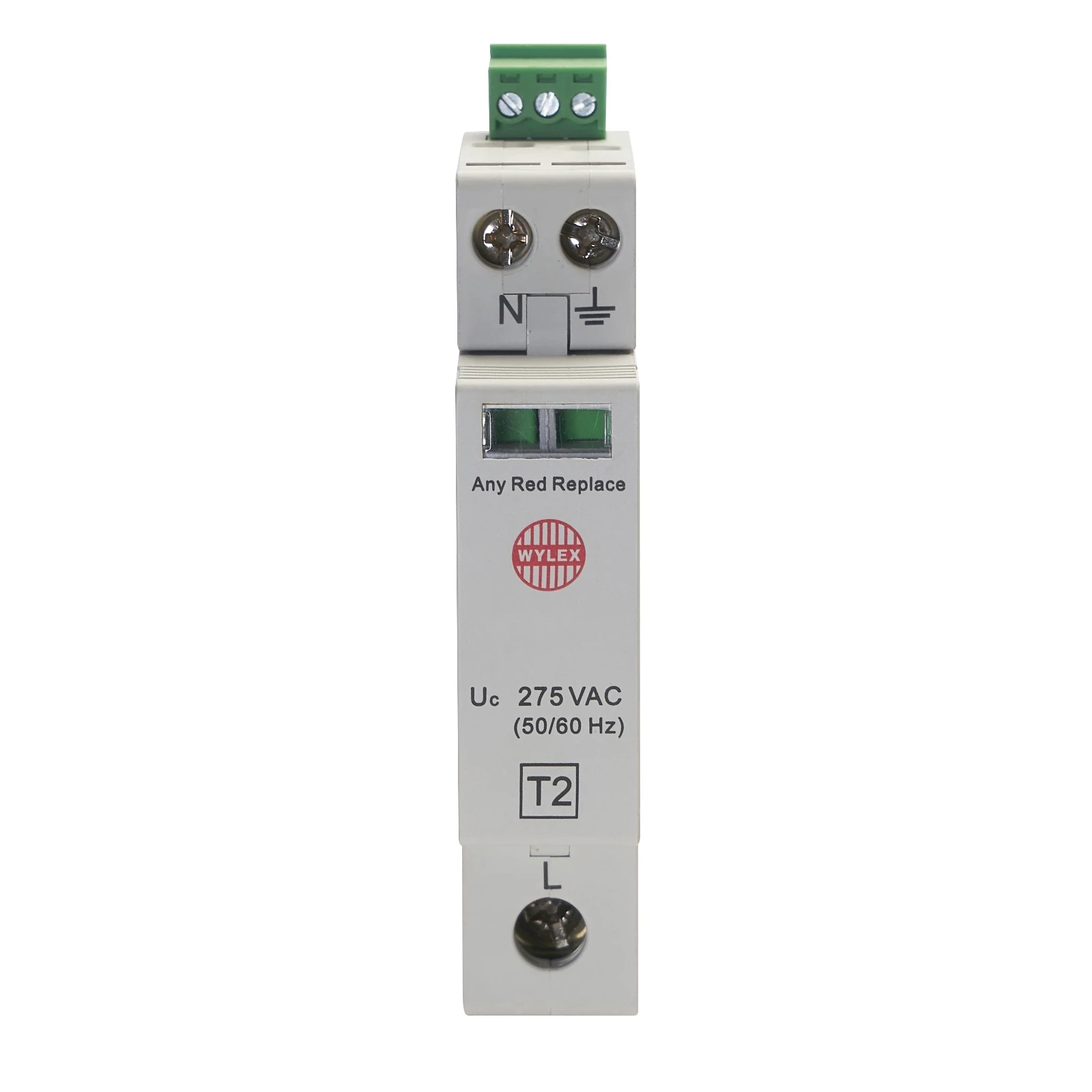

Wylex Type 2 Miniature SPD Kit
Wylex Type 2 Miniature SPD Kit
Wylex Type 2 Miniature SPD Kit - Image 2
Wylex Type 2 Miniature SPD Kit - Image 3

Wylex Type 2 Miniature SPD Kit

£71.29 Incl. VAT

· · Type 2 SPD kit · · For Wylex consumer units and NH L range Type A SPN Distribution Boards · · DIN rail mounting, single module, including all connections · · Status indication and volt free contact for remote monitoring · · Replacement protective element (cartridge) is available, NMT2SPD/P

154 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NMT2SPD3W/1 Categories: , , Brand: Part Number: 2501371151

Description

Technical Specifications  Technical Specifications Surge protection device for power supply systems Max. conductor cross section solid (solid, stranded) 25 mm² Max. discharge surge current (8/20) 40 kA Short-circuit breaking capacity (Isccr) 25 kA Voltage protection level N-PE 1.3 kV Voltage protection level L-N 1.3 kV Nominal discharge surge current 8/20 µs (In) 20 kA Voltage protection level 1.3 kV Max. voltage (Uc) 275 V With remote signalling contact Yes System configuration TN-S Yes Integrated backup fuse Yes Type / Test class 2 Yes System configuration TT Yes System configuration TN-C-S Yes · Technical Data Sheet – Click to Download
