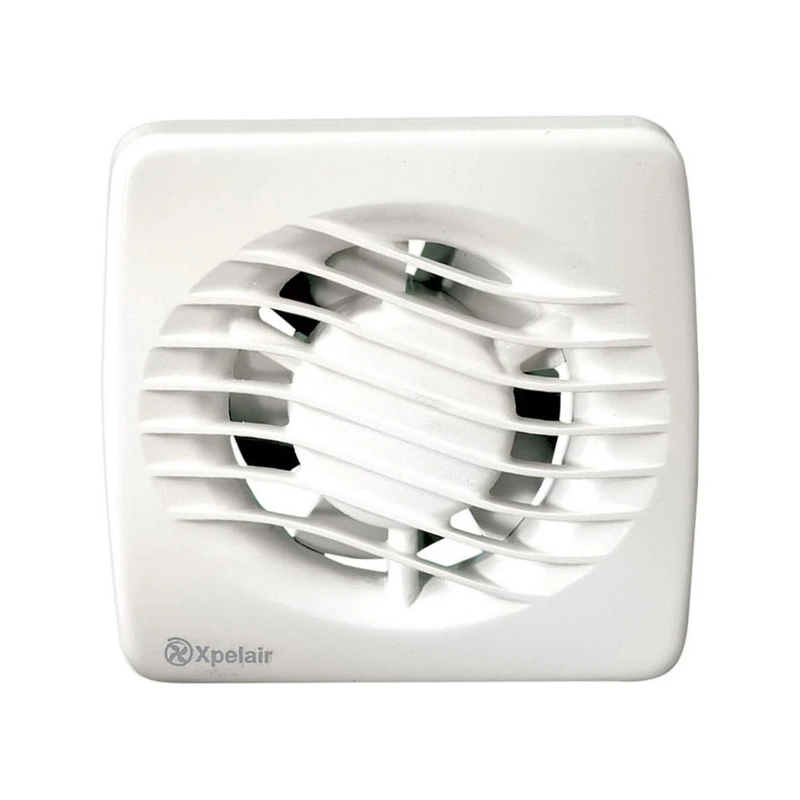

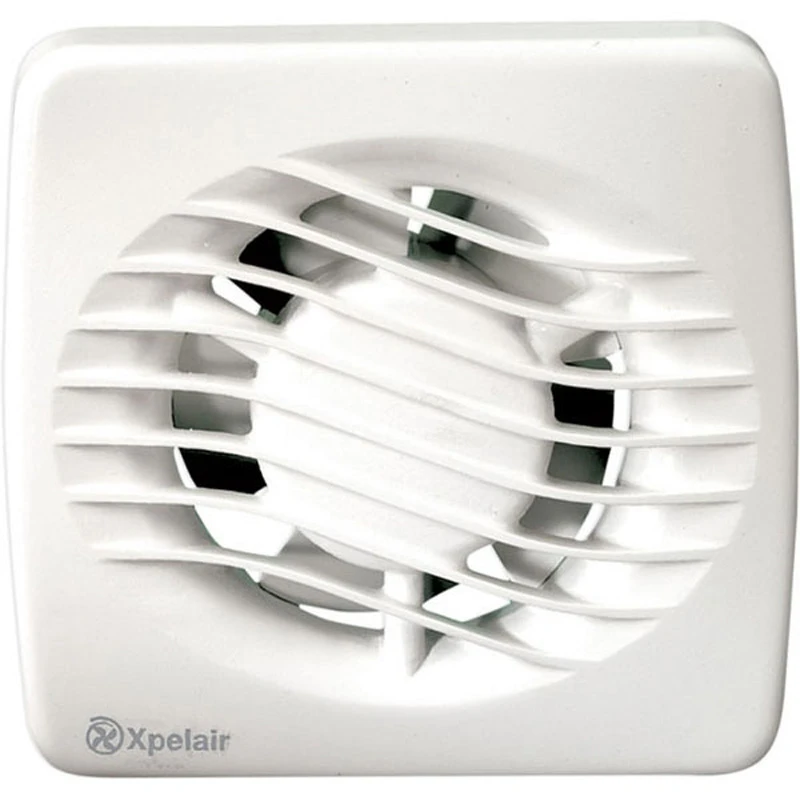

Xpelair Fan Axial Extract Toilet/Bathroom 1 Speed 12w 100mm White
£46.87 Incl. VAT
Xpelair 90839AW 100mm extract fan with wall and window fitting kit. It is a comprehensive range of stylish, compact and easy to install single speed extractor fan. Suitable for a wide range of applications including bathrooms, shower rooms and toilets, including zones 1 and 2. This DX100 extractor fan comes with a complete universal mounting kit comprising of a wall tube, gasket x2, outer grille and skirt moulding for window mounting in single glazing up to 6mm. Also suitable for wall or ceiling mounting. It also includes an air operated backdraught shutter, outer grille and ducting. For use with an external switch or sensor and it is typically connected to the room lighting circuit. · · · Colour: White · · Mounting Type: Wall/Window · · Weight: 1.2kg · · Frequency: 50Hz · · Hole Size: 115mm (Wall), 125mm (Window), 110mm (Shaft/Ducting) · · IP Rating: IPX5 · · Wattage: 12W · · Extract Rate: 21 · · Single speed|Supplied with universal fitting kit · · Part F and ErP compliant|IPX5 rated in zone 1|100mm extract fan|Operated by remote switch or sensor
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Wall mounted fan (recessed mounted) Degree of protection (IP rating) IPX5 Colour White Operation Movement sensor Height 155 mm Width 165 mm Power consumption 12 W Connection voltage 240 V Air volume, free flow 76 m³/h Suitable for transformer control No Recess diameter 100 mm Suitable for electronic control No With non-return valve No · Technical Data Sheet – Click to Download
