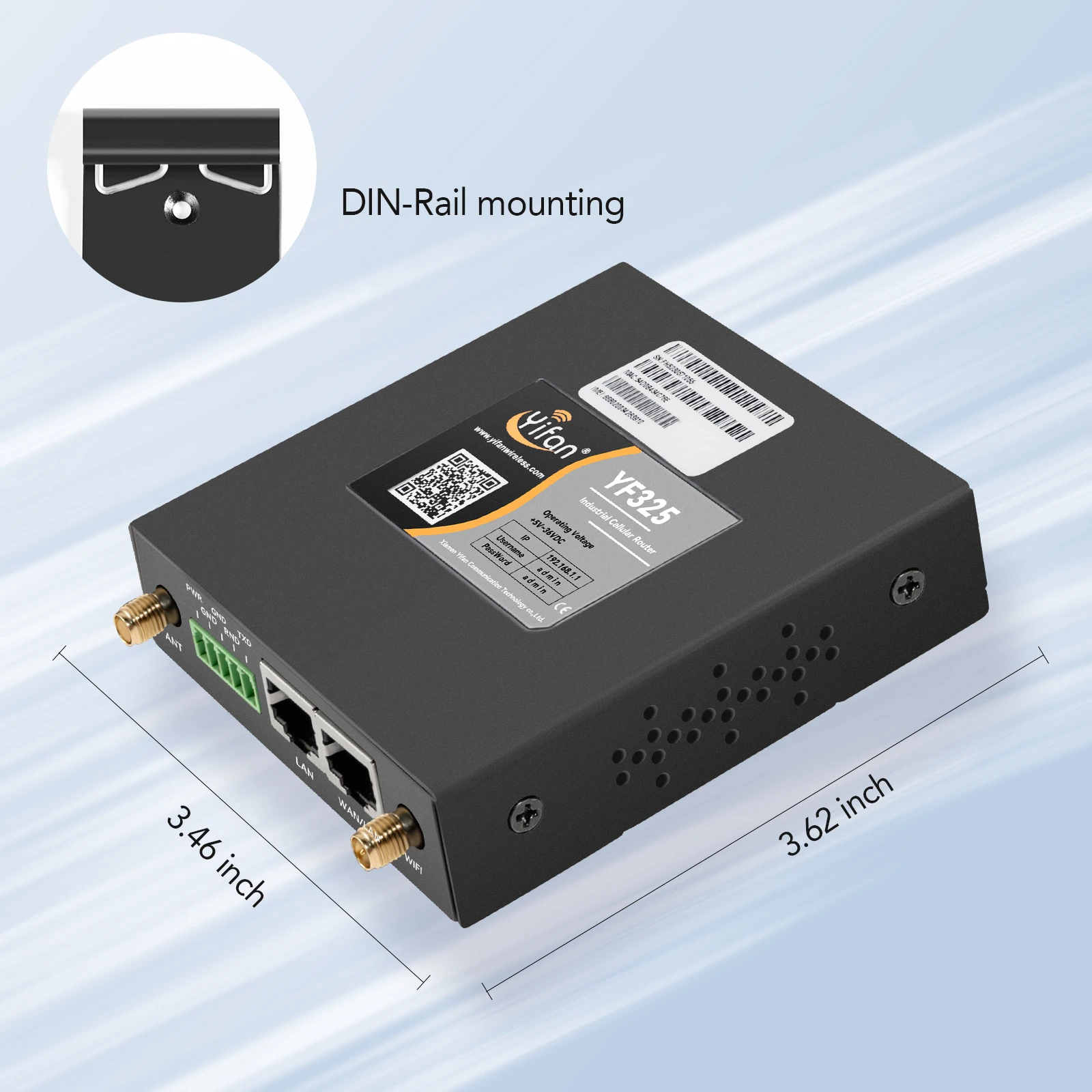

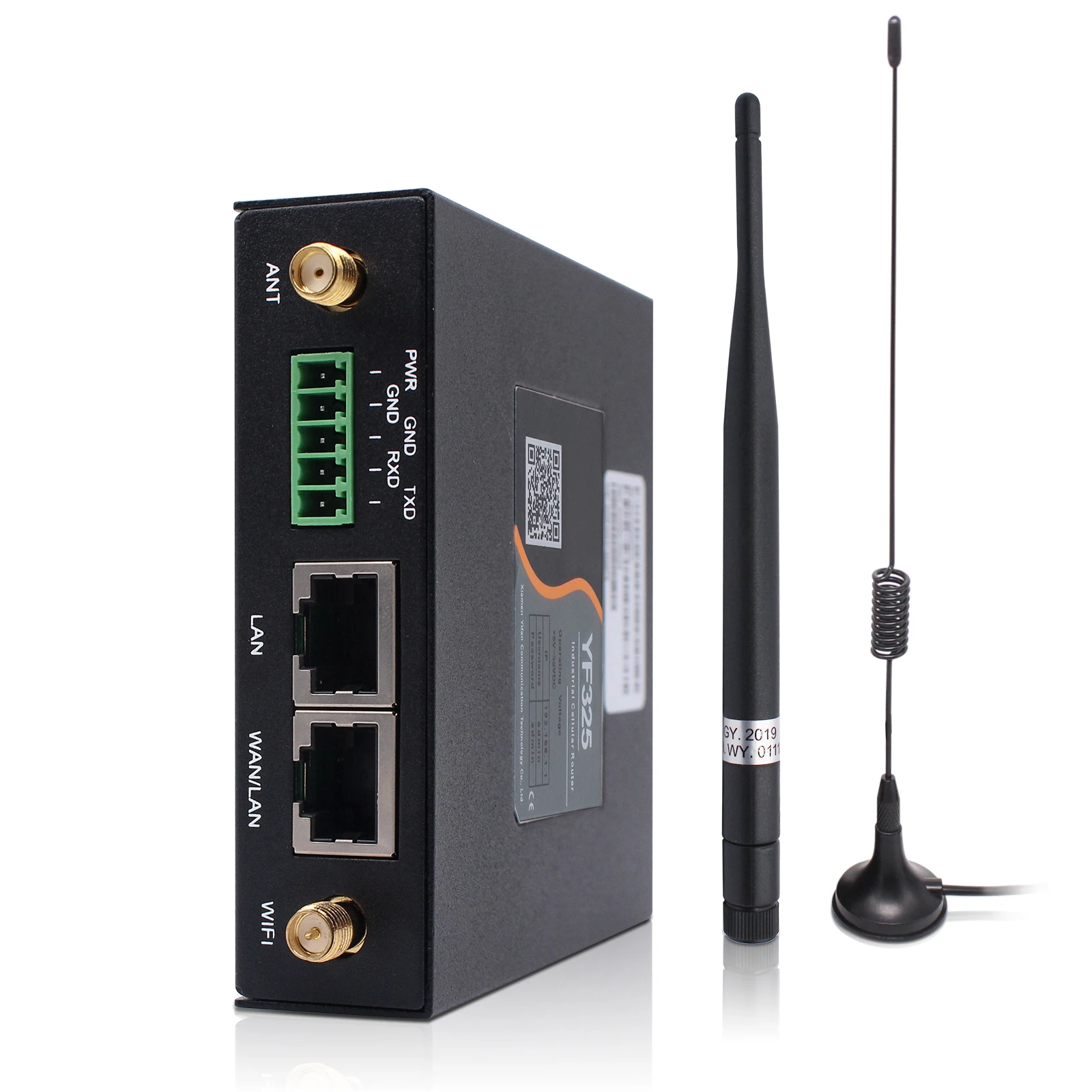

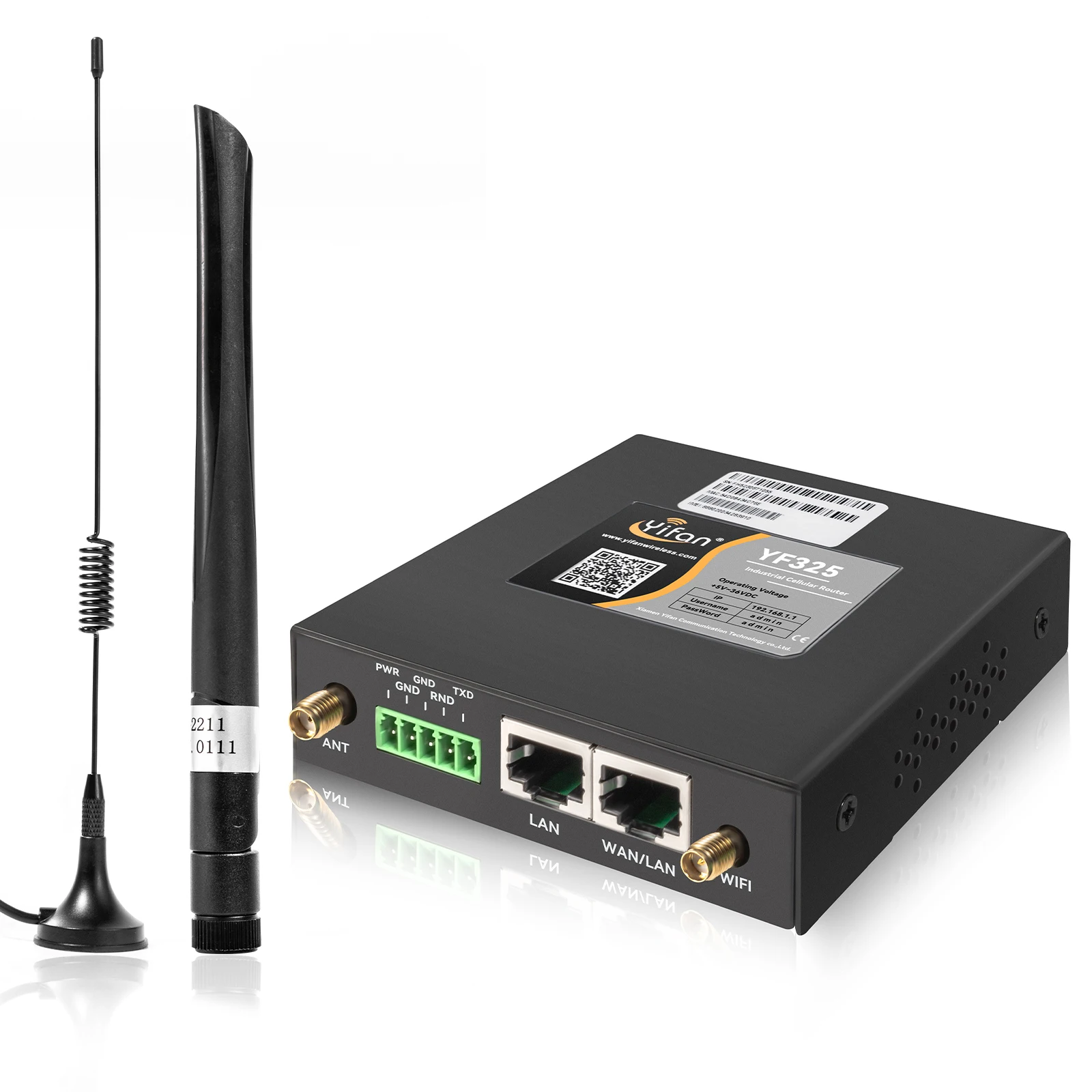

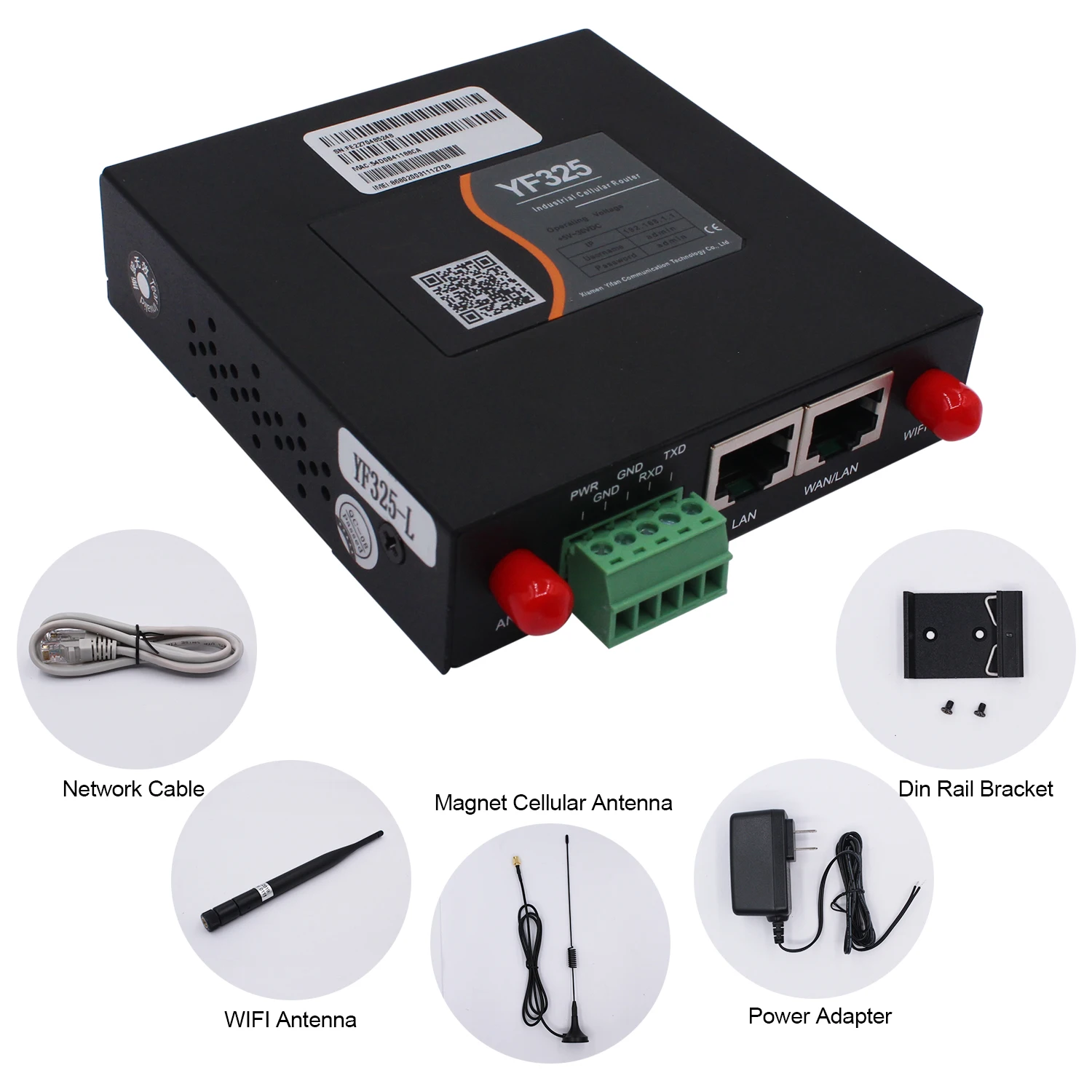

YF325 4G FDD CAT4 CAT1 Modem L610-EU Industrial LTE VPN GRE L2TP L610-LA Router Dual SIM Card Slot External Antennas LAN/Wi-Fi

Description

YF325 Series Cellular WIFI ROUTER is a kind of cellular terminal device that provides large data transfer function by public GPRS/EDGE/UMTS/HSDPA/HSUPA/HSPA+/LTE network. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration. ATM application Smart meter CCTV camera bus wifi sharing Main Functions *High-powered industrial cellular module *High-powered industrial 32bits CPU *Support hardware and software WDT *Support auto recovery mechanism, including online detect, auto redial when offline to make router always online *Support multiple WAN access methods, including static IP, DHCP, PPPOE, *Support double link backup between LTE&GPRS and WAN(PPPOE, ADSL) (optional) *Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE) *Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE) *Support local and remote firmware upgrade, import and export configure file. Frequency band: LTE FDD: B1/B3/B7/B8/B20/B28 GSM/GPRS/EDGE : 900/1800MHz Optional: LTE FDD: B1/2/3/4/5/7/8/28/66 GSM/GPRS/EDGE: 850/900/1800/1900MHZ Bandwith LTE CAT1:10Mbps(DL),5Mbps(UL) GPRS: 85.6kbps(DL),85.6kbps(UL) Interface Wan/Lan: WAN/LAN configurable; 1* 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection Lan: 1 *10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection serial:1* RS232/RS485 port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, (space, mark)(optional) Baud rate: 2400~115200 bp 5G outdoor cpe 5G indoor cpe 4G Outdoor CPE Router Our Company Certifications Packing

.
