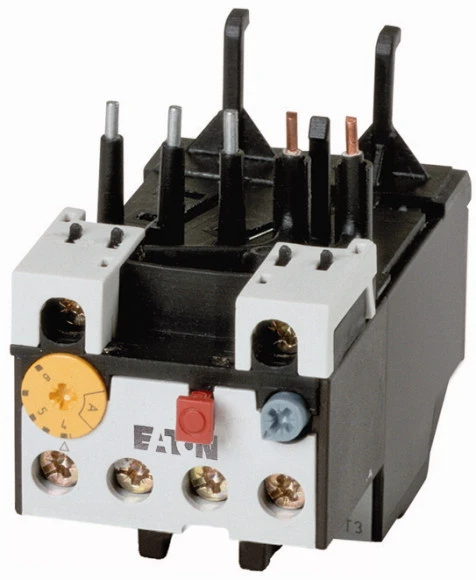

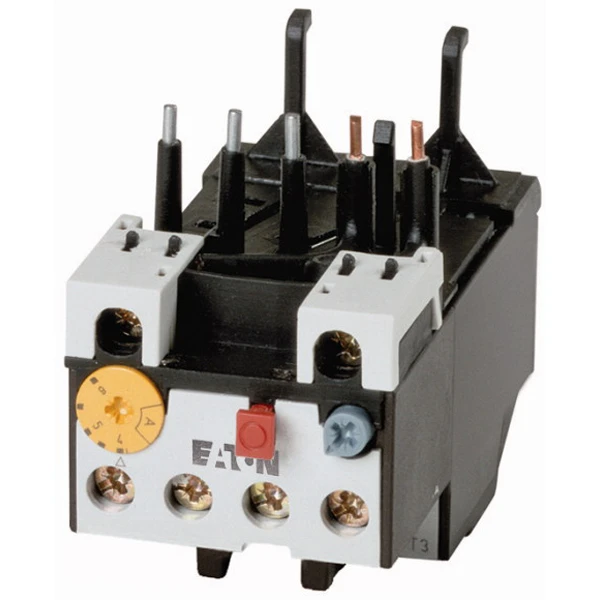

ZB12 Relay 1xNO + 1xNC 1.6-2.4A 150g 45x88x120mm
ZB12 Relay 1xNO + 1xNC 1.6-2.4A 150g 45x88x120mm
ZB12 Relay 1xNO + 1xNC 1.6-2.4A 150g 45x88x120mm - Image 2
ZB12 Relay 1xNO + 1xNC 1.6-2.4A 150g 45x88x120mm - Image 3
ZB12 Relay 1xNO + 1xNC 1.6-2.4A 150g 45x88x120mm - Image 4

ZB12 Relay 1xNO + 1xNC 1.6-2.4A 150g 45x88x120mm

£49.39 Incl. VAT

Eaton ZB12-2.4 overload relay with screw connection. The 278437 XTOB2P4BC1 relay is suitable for protection of Ex e-motors. It features test/off button, reset pushbutton manual/auto and trip-free release. It provides finger and back-of-hand proof protection against direct contact when actuated from front (EN 50274). Suitable for use with DILM7, DILM9, DILM12, DILM15, DIULM7, DIULM9, DIULM12, SDAINLM12, SDAINLM16, SDAINLM22. · · · Height: 120mm · · Range: ZB12 · · Width: 45mm · · Weight: 150g · · Depth: 88mm · · Reset Type: Automatic / Manual · · Overload Range: 1.6 – 2.4A

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ZB12-2.4 Categories: , , Brand: Part Number: 2500157282

Description

Technical Specifications  Technical Specifications Thermal overload relay Mounting method Direct attachment Release class CLASS 10 A Type of electrical connection of main circuit Screw connection Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as normally closed contact 1 Max. rated operation voltage Ue 690 V Number of auxiliary contacts as change-over contact 0 Adjustable current range 1.6 – 2.4 A Reset function push-button Yes Reset function input No Reset function automatic Yes · Technical Data Sheet – Click to Download
