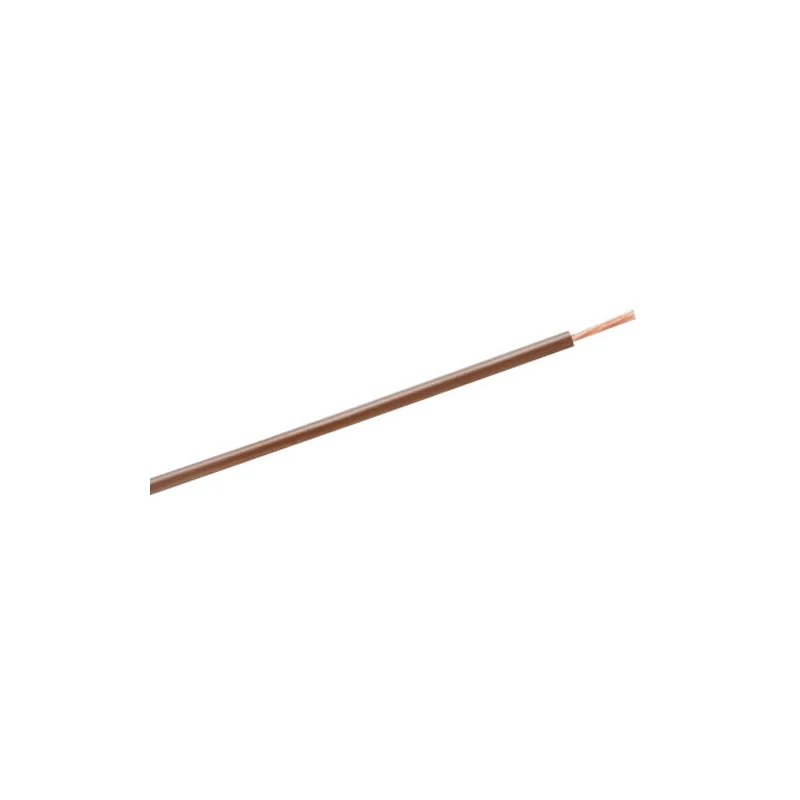

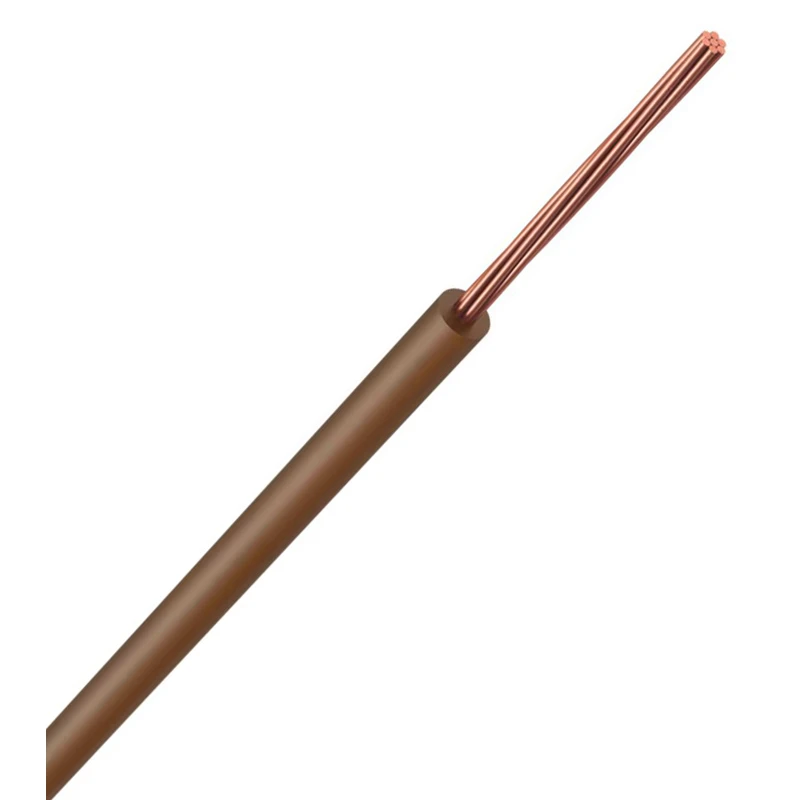

1-Core 2.5mm ² Solid 6491X Cable 100m Brown
1-Core 2.5mm ² Solid 6491X Cable 100m Brown
1-Core 2.5mm ² Solid 6491X Cable 100m Brown - Image 2
1-Core 2.5mm ² Solid 6491X Cable 100m Brown - Image 3
1-Core 2.5mm ² Solid 6491X Cable 100m Brown - Image 4

1-Core 2.5mm ² Solid 6491X Cable 100m Brown

£52.44 Incl. VAT

6491X solid round PVC cable used in conduit wiring for distributor boards and switchboards. 6491X cable is a single core low voltage insulated cable manufactured in accordance with BS EN 50525-2-31 (previously BS6004) and is intended for use in closed installation ducts, and in embedded or semi-flush exposed conduits. · · · 2.5mm ² · · Brown · · 1 Core · · 450/750V rated · · Meets BS EN 50525-2-31:2011 standards · · Class 1 solid plain copper conductor to EN 60228 · · Length: 100m

48800 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-2.5-BRN100 CABLE-RX Categories: , , Brand: Part Number: 2500003195

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Armouring/reinforcement None Sheath colour Blue Conductor material Copper Core colour Blue Sheath material Polyvinyl chloride (PVC) Core insulation material Polyvinyl chloride (PVC) Core identification Colour Min. permitted bending radius, stationary application/permanent installation 22 mm Nominal voltage U0 450 V Max. conductor temperature 70 °C Conductor Diameter 2.5 mm Number of cores 1 Outer diameter approx. 3.6 mm Nominal cross sectional area of conductor 2.5 mm² Conductor surface Bare Nominal voltage U 750 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Oil resistant according to IEC 60811-404 No Twisted cores No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
