Cable

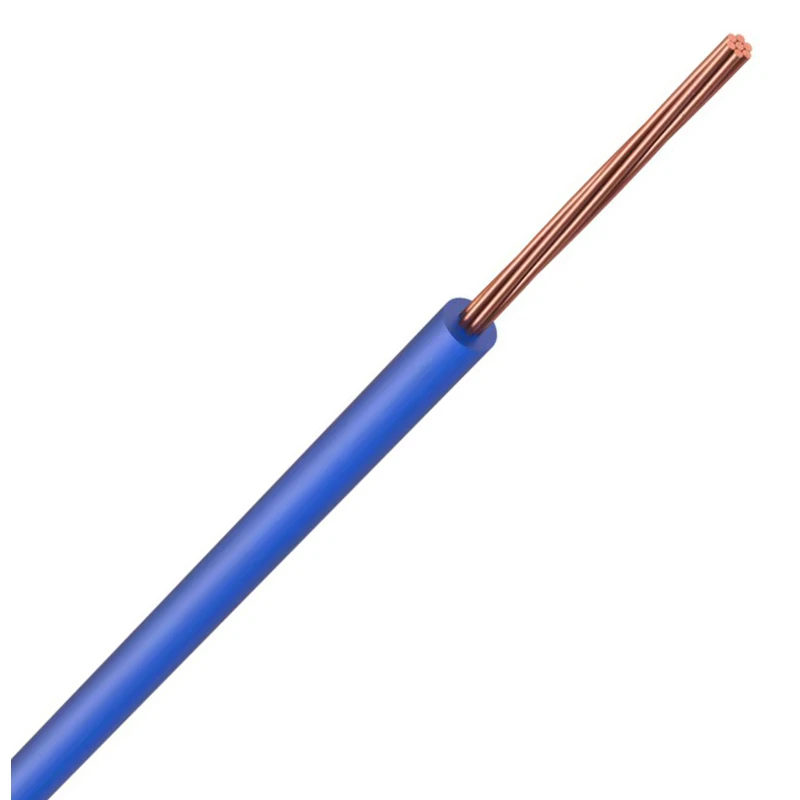

Commodity Cables 6491X 4.0mm² Blue PVC Basec Cable Single 1-Core

Brand: Commodity CablesProduct code: 6491X-4.0-BLU100 CABLE-RXGo Magpie Ref: 5060062330263

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491X4.0BLU100 is an Insulated Conduit Wiring Cable made of plain annealed copper conductor with PVC insulation. This general-purpose cable offers class-2 stranded plain copper conductors to BS EN 60228:2005 (previously BS6360). It is installed in surface · · · Cable Size: 4.0mm · · Colour: Blue · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31

£109.56inc VAT£91.30 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Conductor category Class 2 = stranded Core colour Blue Sheath colour Blue Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) Conductor surface Bare Core identification Colour Nominal cross sectional area of conductor 4 mm² Max. conductor temperature 70 °C Min. permitted bending radius, stationary application/permanent installation 26 mm Conductor Diameter 4 mm Outer diameter approx. 4.2 mm Nominal voltage U 750 V Number of cores 1 Nominal voltage U0 450 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Twisted cores No Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
