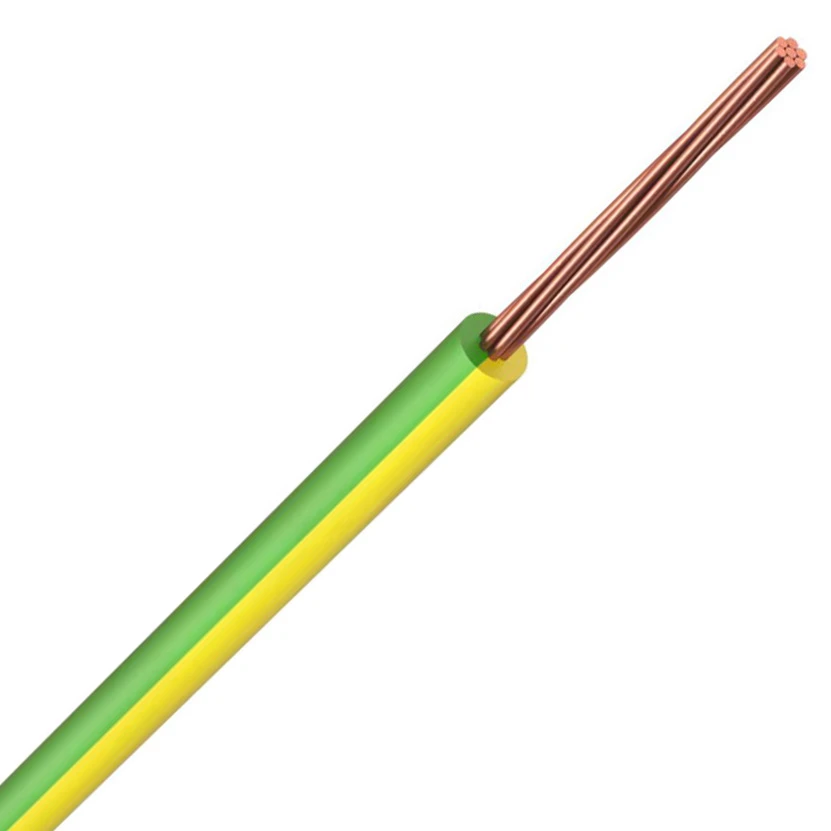

1-Core 4mm² Stranded Conduit Wire 100m Green/Yellow
1-Core 4mm² Stranded Conduit Wire 100m Green/Yellow
1-Core 4mm² Stranded Conduit Wire 100m Green/Yellow - Image 2
1-Core 4mm² Stranded Conduit Wire 100m Green/Yellow - Image 3
1-Core 4mm² Stranded Conduit Wire 100m Green/Yellow - Image 4

1-Core 4mm² Stranded Conduit Wire 100m Green/Yellow

£86.94 Incl. VAT

This cable is suitable for power and lighting circuits and building wiring. It is also ideal for the internal wiring of appliances, semi-flush exposed conduits, and embedded conduits and as well as in closed installation ducts. · · · 4mm² · · Green/Yellow · · 1 Core · · 450/750V rated · · 4.61?/km maximum conductor resistance at 20°C · · Class 2 stranded copper to EN 60228 conductor · · H07V-R type · · Length: 100m

21800 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-4.0-G/Y100 CABLE-RX Categories: , , Brand: Part Number: 2500003437

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Conductor category Class 2 = stranded Core colour Blue Sheath colour Blue Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) Core identification Colour Min. permitted bending radius, stationary application/permanent installation 26 mm Nominal voltage U0 450 V Max. conductor temperature 70 °C Conductor Diameter 4 mm Number of cores 1 Outer diameter approx. 4.2 mm Nominal cross sectional area of conductor 4 mm² Conductor surface Bare Nominal voltage U 750 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Twisted cores No Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
