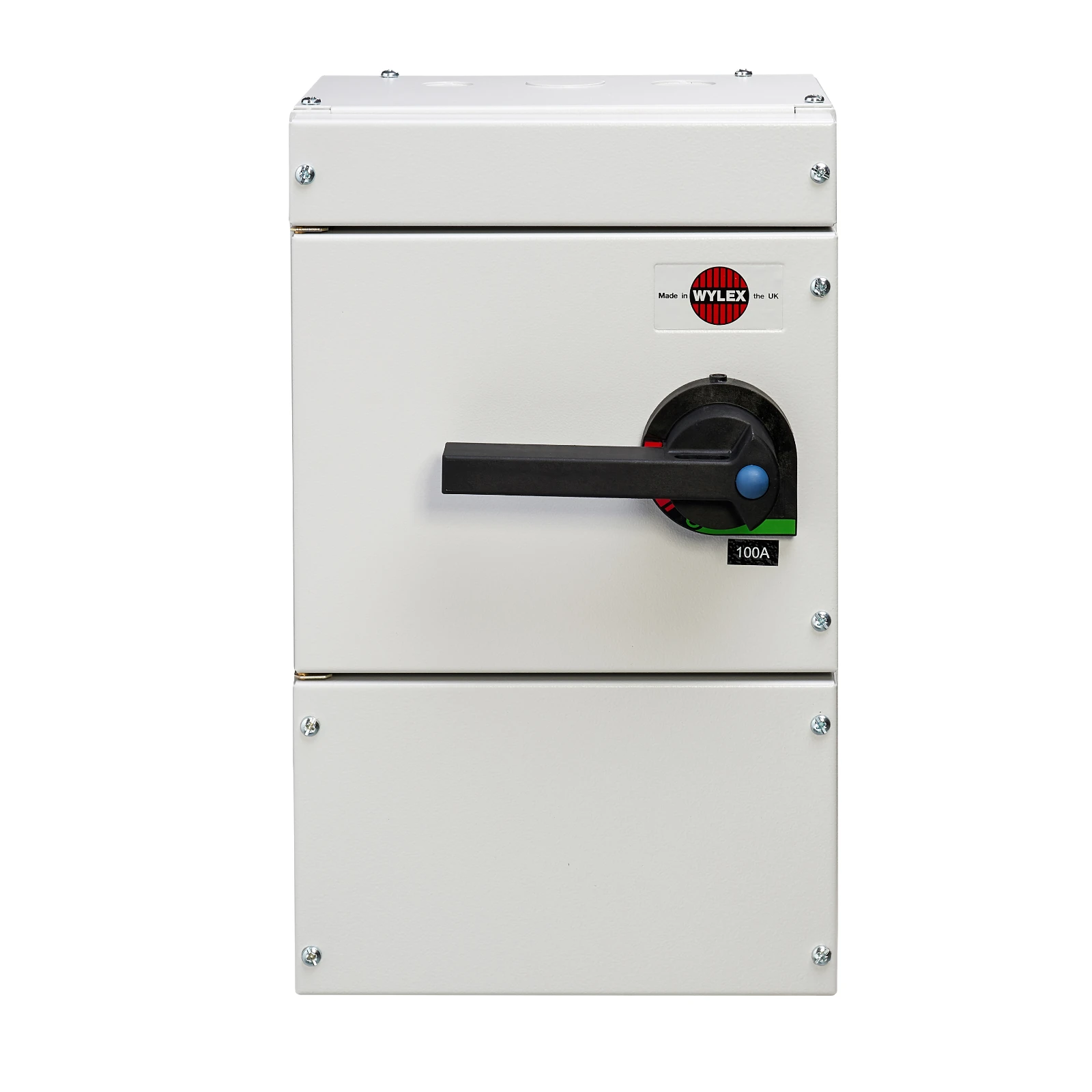

100A 3P+N Fuse Combination Unit c/w Fuses
100A 3P+N Fuse Combination Unit c/w Fuses

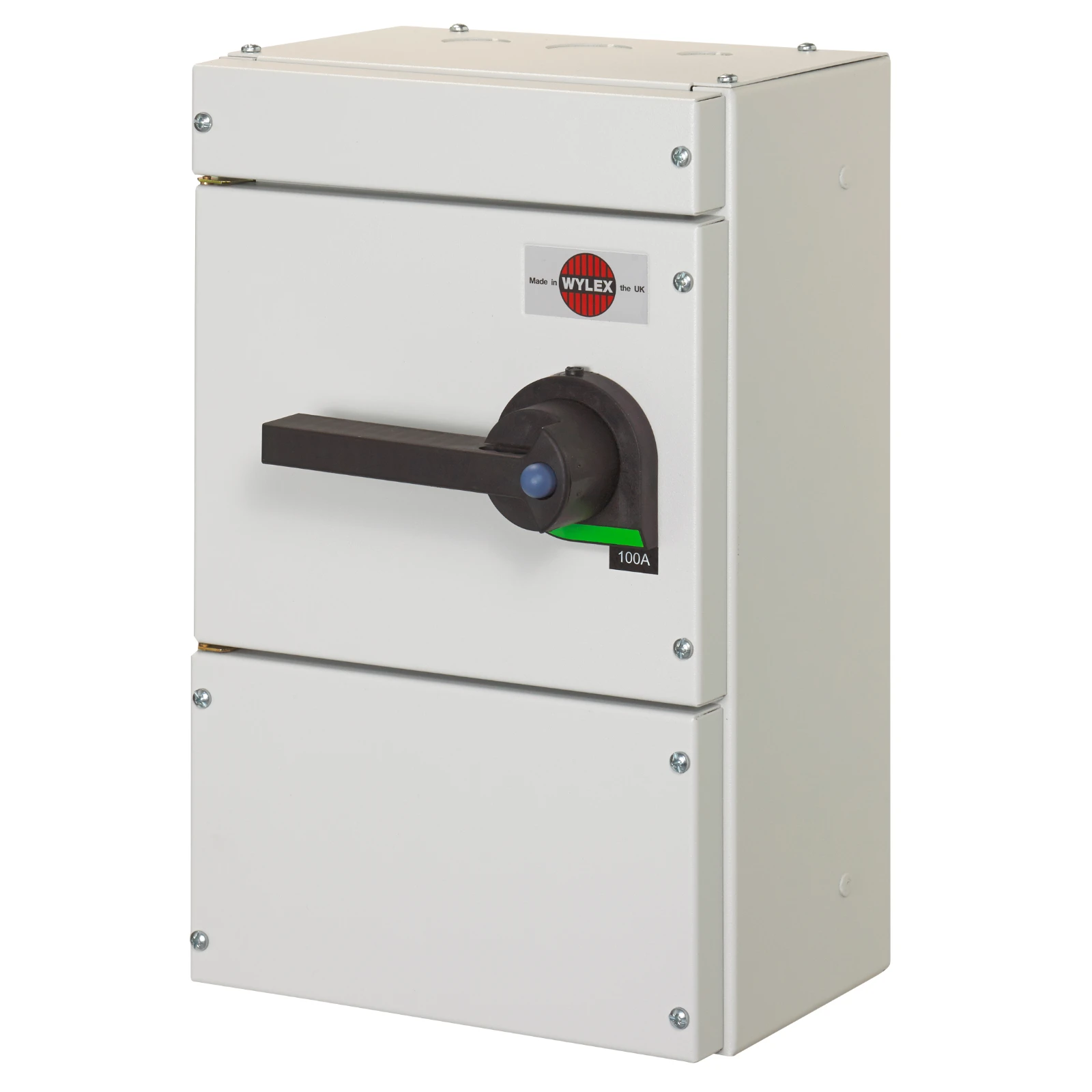

100A 3P+N Fuse Combination Unit c/w Fuses - Image 2
100A 3P+N Fuse Combination Unit c/w Fuses - Image 3

100A 3P+N Fuse Combination Unit c/w Fuses

£470.06 Incl. VAT

Robust steel enclosures with cable glanding plate supplied top and bottom removable door opens through 180 for ease of access. · · · Supplied with 100A fuses. · · Painted RAL 7035 steel enclosure 425mmH x 263mmW x 188mmD. Front door reversible, opening to 180° · · Operating handle can be padlocked. · · Accommodates cable spreading room up to 70mm² 4 core. · · Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (NHCSB2) is required.

6 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHTPSF100 Categories: , , Brand: Part Number: 2500116472

Description

Technical Specifications  Technical Specifications Fuse switch disconnector Number of poles 3 Rated permanent current Iu 100 A Conditioned rated short-circuit current Iq 20 kA Rated operation power at AC-23, 400 V 37 kW Rated short-time withstand current lcw 1.5 kA Max. rated operation voltage Ue AC 415 V With error protection No Suitable for busbar mounting No Suitable for front mounting 4-hole No Suitable for floor mounting No Version as safety switch No Version as main switch Yes Motor drive optional No Equipped with connectors Yes Motor drive integrated No Version as emergency stop installation No · Technical Data Sheet – Click to Download
