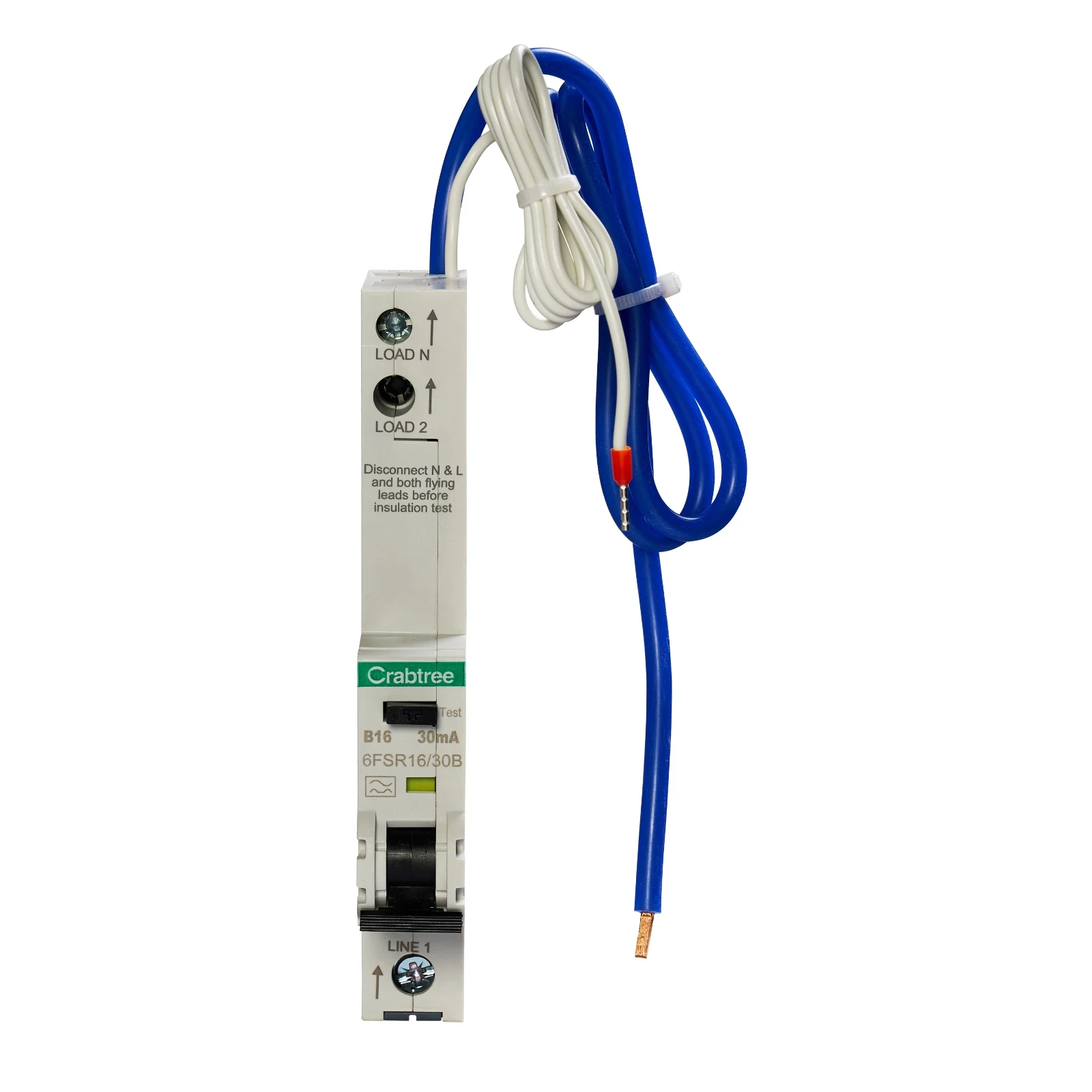

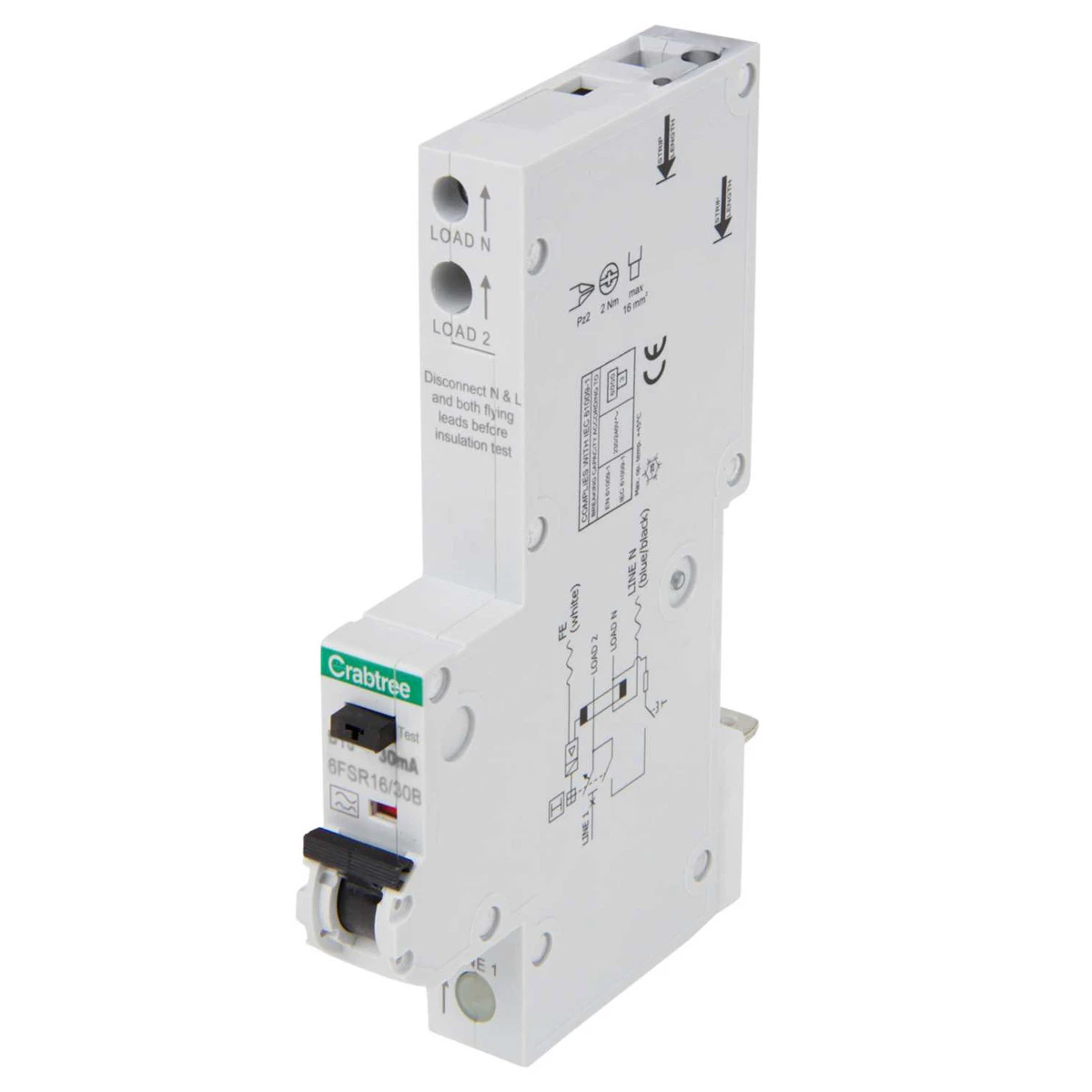

Crabtree 16A 30mA SPN B Curve 6kA Type A RCBO
Brand: CrabtreeProduct code: 6FSR16/30BGo Magpie Ref: 5060062305965
A Residual Current Circuit Breaker, combination with miniature circuit breaker in a compact single module design. An RCBO with a rated residual tripping current of 30mA meeting the requirements of can be used for circuits and cable installation. · · · Single module, RCBO · · 16A B curve (MCB), 30mA Type A (RCD) · · Single pole · · Cross section conductor 0.75-16mm² · · B release characteristic
£50.22inc VAT£41.85 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Mounting method DIN rail Recess depth 74 mm Rated current 16 A Rated voltage 230 V Rated insulation voltage Ui 400 V Width in number of modular spacings 1 Number of poles (total) 2 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Over voltage category 3 Rated fault current 0.03 A Current limiting class 3 Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C With interlocking device No Concurrently switching N-neutral No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
