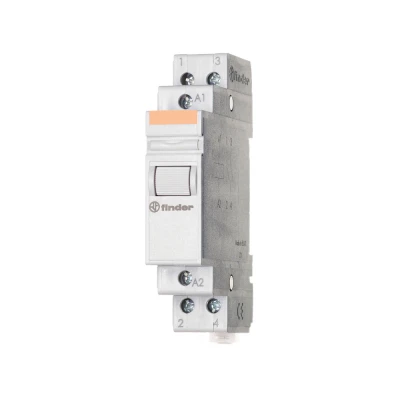

22 SERIES – Modular Monostable Relays

This modular monostable relay is equipped with 20A, 250VAC cadmium-free contacts rated at 5000V AC1. This relay has a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent. · · · Double phase switch 2 NO (DPST-NO) · · 17.4 mm wide · · Test button · · Identification label · · Cadmium free contact material · · 35 mm rail (EN 60715) mount · · Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine. · · Vibration resistance 5gn · · Shock resistance: 30-50gn · · IP20 Degree of Protection
