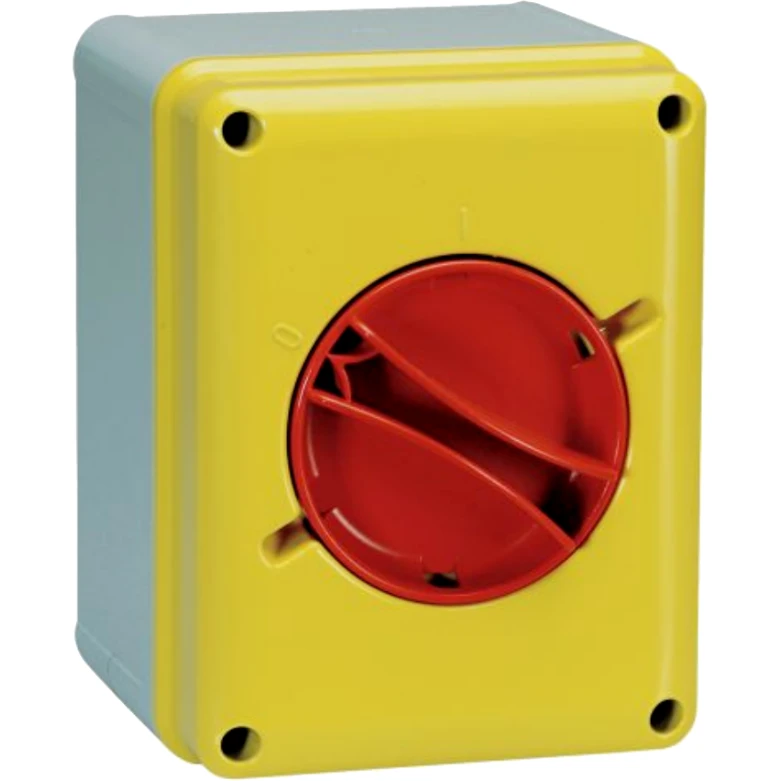

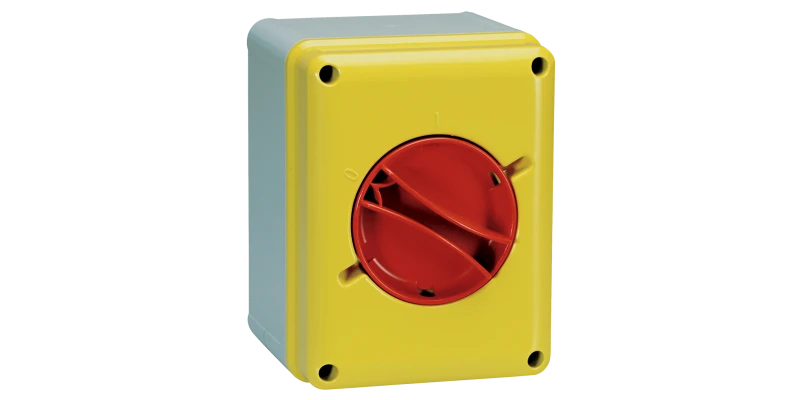

Lewden Isolator Switch 4P 32A
£27.17 Incl. VAT
Isolator switches fully rated to AC3-AC23A Switching category, permitting safe operation even with highly inductive loads. The techno polymer material ensurestop level resilience to physical impacts and chemicals. The handle is lockable in the off position and the front cover interlocked in the on position providing security against unauthorised interventions. · · · Emergency Rotary Isolators – IP65, IK08 · · Ensures the powering down (entire or partial) of the system, isolating it safely from any electrical power supply · · AC3-AC23A category and is also suitable for highly inductive loads. · · Insulating material for wall-mounting standard applications.
30 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Number of auxiliary contacts as normally closed contact – Number of auxiliary contacts as normally open contact – Rated operation power at AC-3, 400 V – kW Rated permanent current Iu – A Number of poles 4 Max. rated operation voltage Ue AC – V Rated permanent current at AC-21, 400 V – A Switching power at 400 V – kW Rated permanent current at AC-23, 400 V – A Rated short-time withstand current lcw – kA Conditioned rated short-circuit current Iq – kA Rated operating voltage 690 – 690 V Version as safety switch No Suitable for front mounting centre No Version as maintenance-/service switch No Version as emergency stop installation Yes Rated operation power at AC-23, 400 V – kW Number of switches 1 Number of auxiliary contacts as change-over contact – Version as main switch No Suitable for floor mounting No Motor drive integrated No Suitable for distribution board installation No Voltage release optional No Motor drive optional No Suitable for front mounting 4-hole No Version as reversing switch No Suitable for intermediate mounting No Interlockable No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
