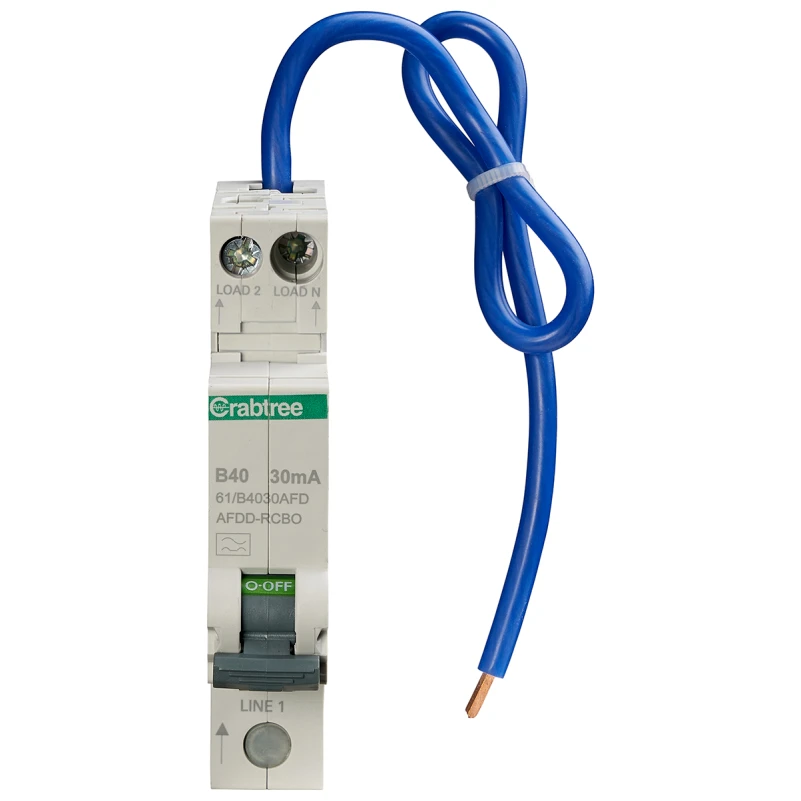

40A 30mA SPswN B Curve 6kA Type A Miniature AFDD RCBO

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated voltage 230 V Rated current 40 A Tripping characteristic (type/curve) B Number of poles (total) 2 Over voltage category 3 Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Recess depth 73 mm Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Width in number of modular spacings 1 Rated fault current 0.03 A Current limiting class 3 Rated insulation voltage Ui 400 V Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral Yes Flush-mounted installation No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
