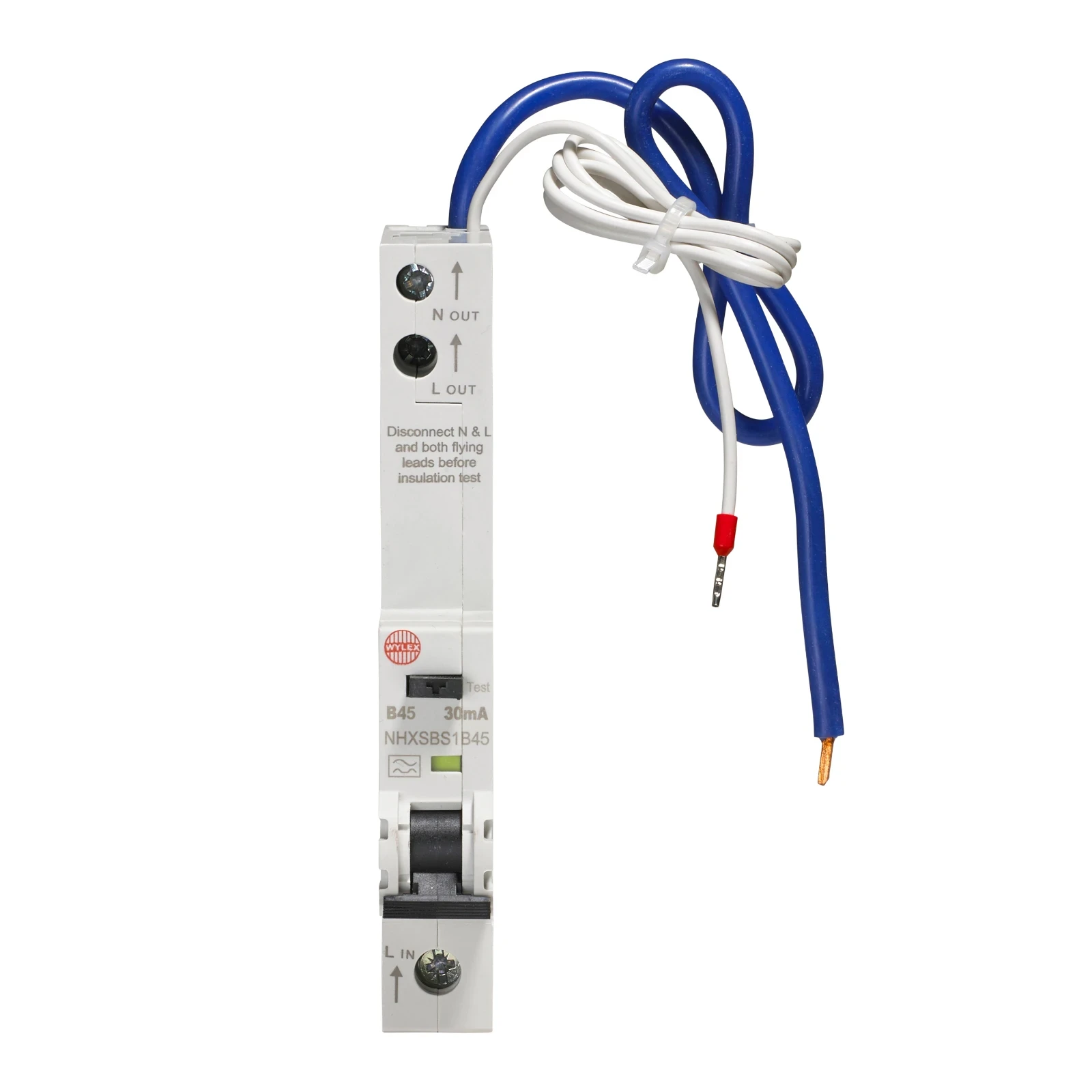

45A 30mA SPN B Curve 6kA Type A RCBO

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Tripping characteristic (type/curve) B Rated current 45 A Rated voltage 230 V Recess depth 74 mm Over voltage category 3 Current limiting class 3 Width in number of modular spacings 1 Rated fault current 0.03 A Number of poles (total) 2 Rated insulation voltage Ui 400 V Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Flush-mounted installation No Anti-nuisance tripping version No Concurrently switching N-neutral No With interlocking device No · Technical Data Sheet – Click to Download
