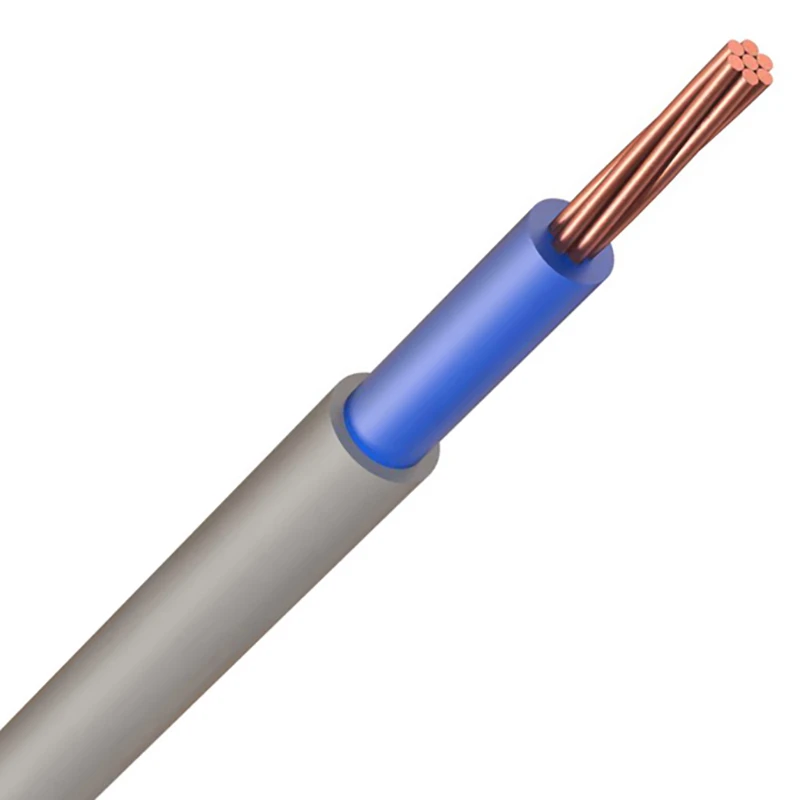

6181YH 1.5mm² Grey/Blue PVC Double Insulated Basec Cable 1-Core Tails
£0.44 Incl. VAT
This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6181Y1.5 is a Harmonised Circular Single Core Cable made up of a plain copper conductor and PVC insulation and sheathing suitable for surface wiring installation.. Ideal for installation in areas with minimal risk of mechanical damage · · · Cable Size: 1.5mm² · · Colour: Grey/Blue · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Tails · · Material: PVC · · Standard: BS6004
600 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Armouring/reinforcement None Protective barrier None Conductor category Class 1 = solid Sheath colour Grey Number of cores 1 Nominal cross sectional area of conductor 1.5 mm² Core identification Colour Conductor surface Bare Core insulation material Polyvinyl chloride (PVC) Sheath material Polyvinyl chloride (PVC) Core colour Blue Conductor material Copper Max. conductor temperature 70 °C Conductor Diameter 1.5 mm Nominal voltage U0 300 V Nominal voltage U 500 V Outer diameter approx. 4.5 mm Permitted cable outer temperature during assembling/handling 0 – 60 °C Drain wire No Twisted cores No Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No · Technical Data Sheet – Click to Download
