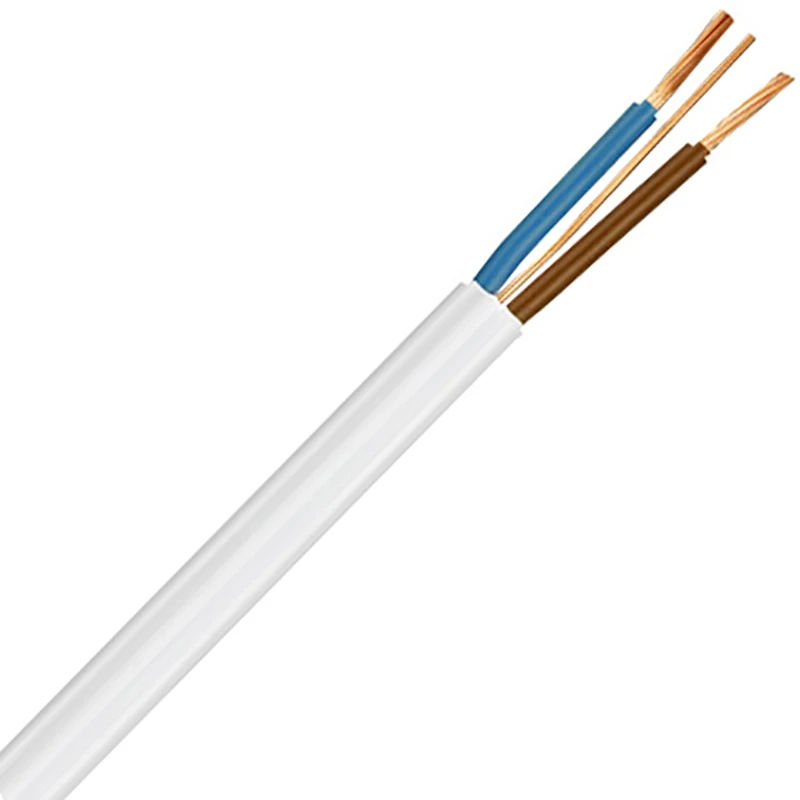

6242BH 4.0mm² White Basec Twin and Earth Cable
6242BH 4.0mm² White Basec Twin and Earth Cable
6242BH 4.0mm² White Basec Twin and Earth Cable - Image 2
6242BH 4.0mm² White Basec Twin and Earth Cable - Image 3
6242BH 4.0mm² White Basec Twin and Earth Cable - Image 4

6242BH 4.0mm² White Basec Twin and Earth Cable

£186.30 Incl. VAT

· · Operating temperature: -25°C to 80°C · · Fixed Bending radius r=3D · · Acid gas emission to BS EN 50267 · · Smoke emission to BS EN 50268 · · Flame propagation to BS EN 50265 · · Suitable for domestic and commercial applications · · Produces lower levels of smoke and fumes under fire conditions

105400 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6242BH-4.0-WHI100 CABL-RX Categories: , , Brand: Part Number: 2500142916

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Core colour Several Conductor category Class 2 = stranded Protective barrier None Conductor material Copper Sheath colour White Conductor surface Bare Core identification Colour Core insulation material Polyolefin Sheath material Polyolefin Number of cores 2 Permitted cable outer temperature during assembling/handling 0 – 80 °C Nominal voltage U 500 V Nominal voltage U0 300 V Max. conductor temperature 90 °C Conductor Diameter 4 mm Nominal cross sectional area of conductor 4 mm² Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No Drain wire Yes · Technical Data Sheet – Click to Download
