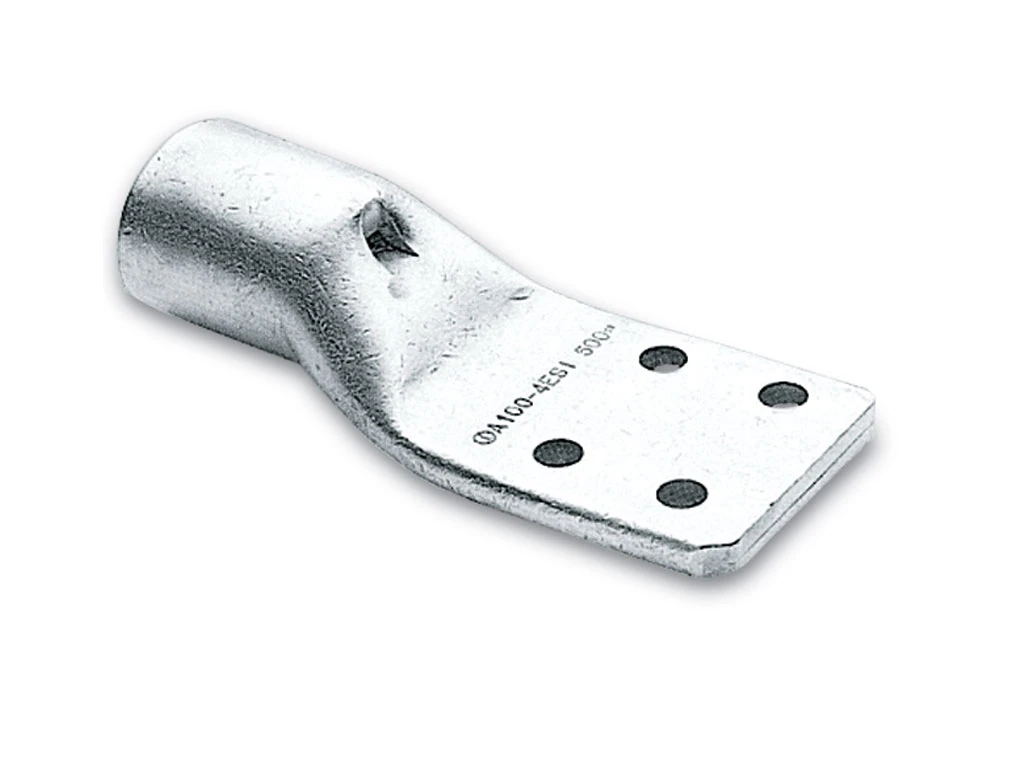

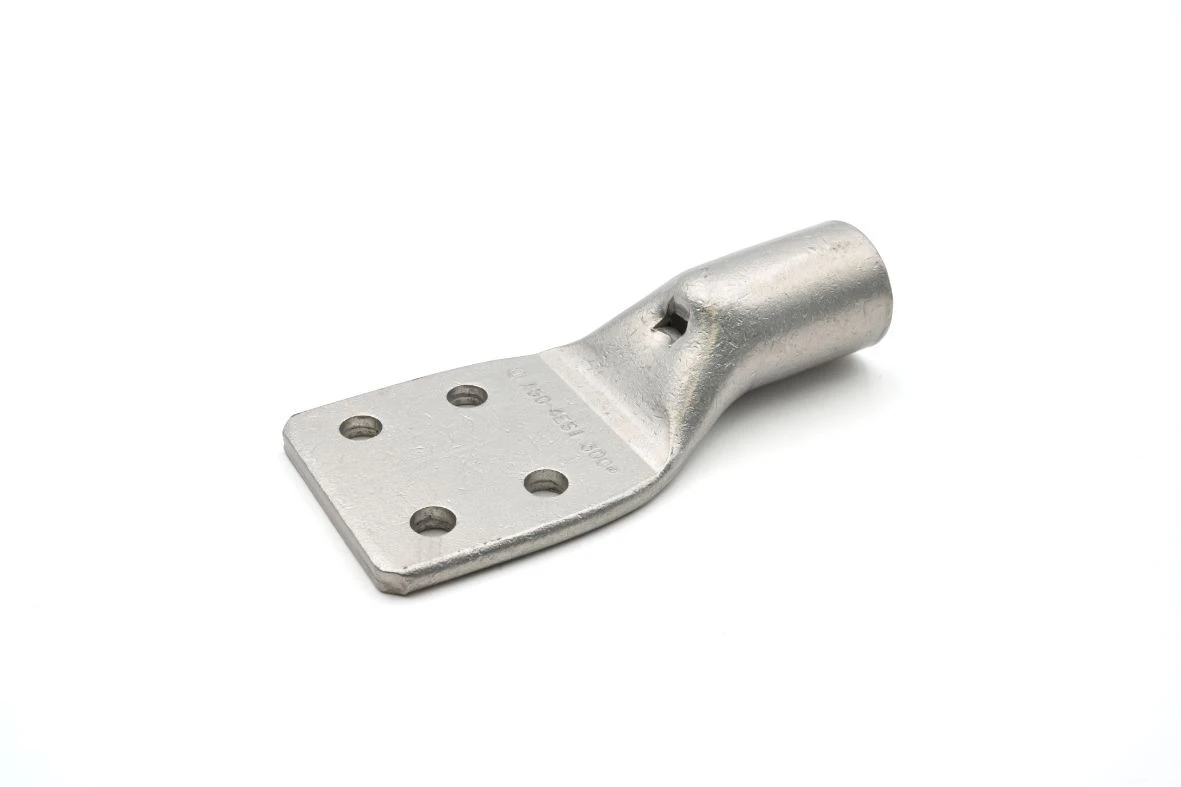

630mm² Copper lug 4-ESI fixing [Pack of 5]
630mm² Copper lug 4-ESI fixing [Pack of 5]
630mm² Copper lug 4-ESI fixing [Pack of 5] - Image 2
630mm² Copper lug 4-ESI fixing [Pack of 5] - Image 3
630mm² Copper lug 4-ESI fixing [Pack of 5] - Image 4

630mm² Copper lug 4-ESI fixing [Pack of 5]

£54.64 Incl. VAT

630mm² Copper tube crimping lug with 4-ESI fixing · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Four hole stud fixing in accordance with EA specifications

19 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A120-4ESI Categories: , , Brand: Part Number: 2500025548

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Flange shape Special shape Material Copper Conductor category Class 5 = flexible Surface protection Tinned Nominal cross section 630 mm² Bolt dimension (metric) 8 Number of fixing holes 4 Insulated No With sight-hole Yes Slender flange model No
