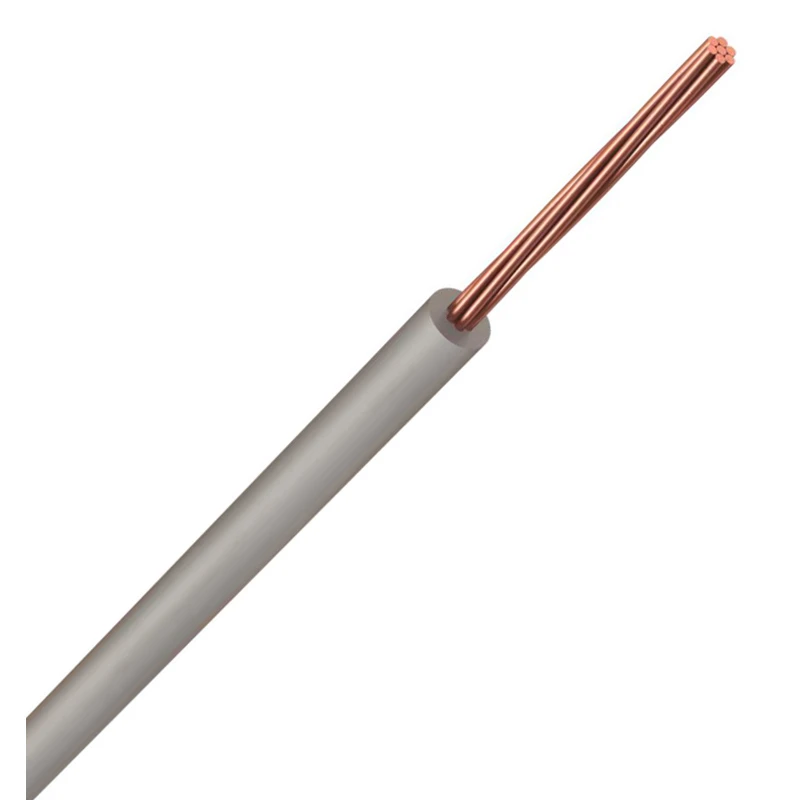

6491B 6.0mm² Grey Basec Cable 1-Core
6491B 6.0mm² Grey Basec Cable 1-Core
6491B 6.0mm² Grey Basec Cable 1-Core - Image 2
6491B 6.0mm² Grey Basec Cable 1-Core - Image 3
6491B 6.0mm² Grey Basec Cable 1-Core - Image 4

6491B 6.0mm² Grey Basec Cable 1-Core

£114.54 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491B6.0 (also known as HO7Z-R) is a general purpose single core cable made up of a plain annealed copper stranded circular conductor complete with low smoke and zero halogen (LSZH) sheathing for use in conduit and trunking. · · · Cable Size: 6.0mm² · · Colour: Grey · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41

900 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491B-6.0-GRY100 CABLE-RX Categories: , , Brand: Part Number: 2500142386

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour Brown Conductor category Class 2 = stranded Armouring/reinforcement None Number of cores 1 Conductor surface Bare Nominal cross sectional area of conductor 6 mm² Conductor Diameter 6 mm Core identification Colour Core colour Blue Conductor material Copper Nominal voltage U0 450 V Nominal voltage U 750 V Max. conductor temperature 90 °C Outer diameter approx. 4.8 mm Permitted cable outer temperature during assembling/handling 0 – 80 °C Oil resistant according to IEC 60811-404 No Twisted cores No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
