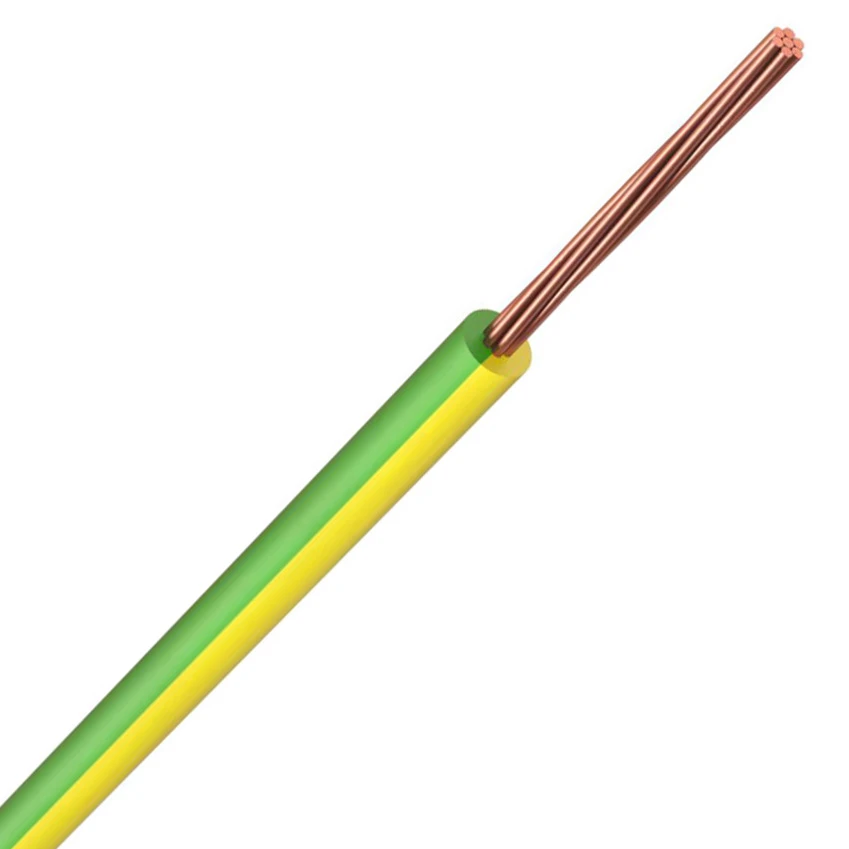

Commodity Cables 6491B 6.0mm Green/Yellow Basec Cable 1-Core
Commodity Cables 6491B 6.0mm Green/Yellow Basec Cable 1-Core
Commodity Cables 6491B 6.0mm Green/Yellow Basec Cable 1-Core - Image 2
Commodity Cables 6491B 6.0mm Green/Yellow Basec Cable 1-Core - Image 3

Commodity Cables 6491B 6.0mm Green/Yellow Basec Cable 1-Core

Pack of 500

£634.80 Incl. VAT

This product is packaged as 100m Reel. Hence when ordering, a mutiple of 100 needs to be entered. 6491B6.0 (also known as HO7Z-R) is a general purpose single core cable made up of a plain annealed copper stranded circular conductor complete with low smoke and zero halogen (LSZH) sheathing for use in conduit and trunking. · · · BS7211 LSOH Insulated non sheathed cable · · Single Core for use in conduit & trunking · · Plain annealed stranded copper conductors · · No. of cores: 1 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491B-6.0-G/Y500 CABLE-RX Categories: , Brand: Product Code: 2500507524

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour Brown Armouring/reinforcement None Conductor category Class 2 = stranded Core colour Blue Conductor material Copper Conductor surface Bare Core identification Colour Number of cores 1 Permitted cable outer temperature during assembling/handling 0 – 80 °C Outer diameter approx. 4.8 mm Max. conductor temperature 90 °C Nominal voltage U0 450 V Conductor Diameter 6 mm Nominal cross sectional area of conductor 6 mm² Nominal voltage U 750 V Twisted cores No Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
