70mm² Copper Lug Flexible M8 [Pack of 50]
70mm² Copper Lug Flexible M8 [Pack of 50]
70mm² Copper Lug Flexible M8 [Pack of 50] - Image 2
70mm² Copper Lug Flexible M8 [Pack of 50] - Image 3
70mm² Copper Lug Flexible M8 [Pack of 50] - Image 4

70mm² Copper Lug Flexible M8 [Pack of 50]

£2.10 Incl. VAT

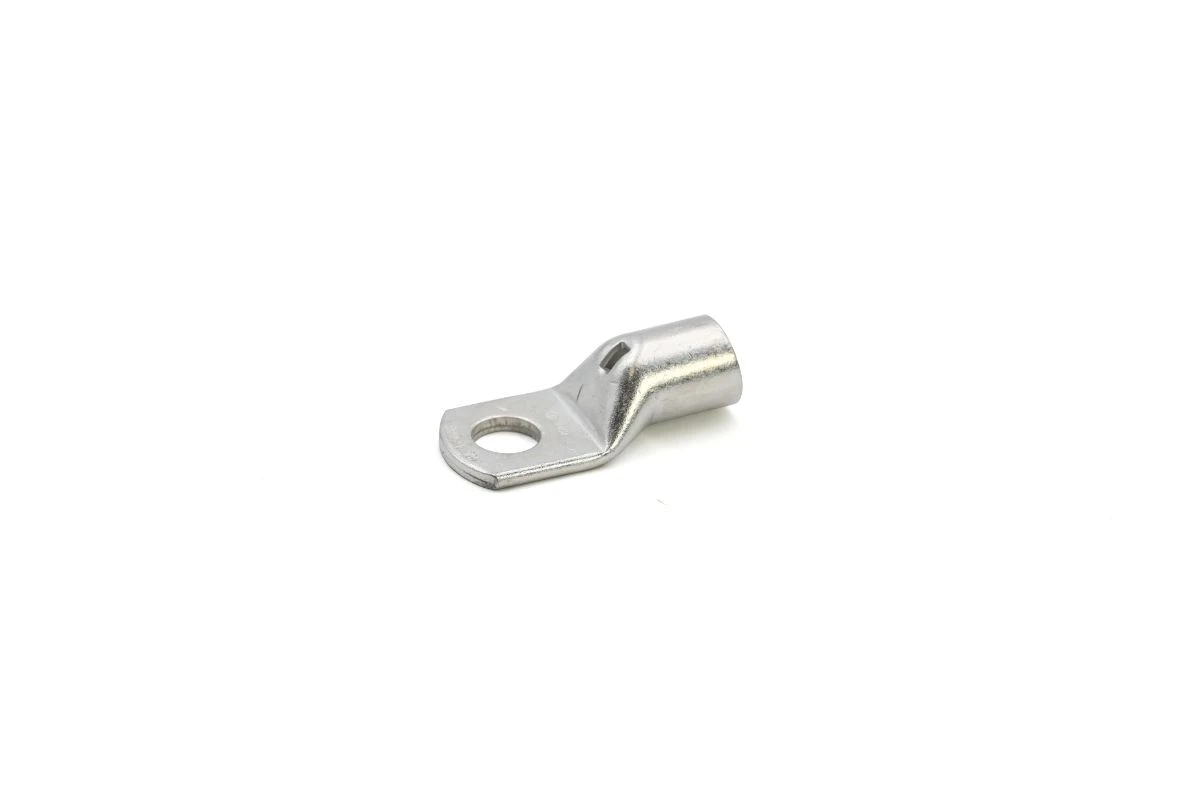

70mm² Copper tube crimping lug for extra flexible copper conductor M8 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Tab/Pin Size: 17 mm · · Diameter: 13 mm · · Length Min Max: 47 mm · · Width: 23 mm

69 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A17-M8 Categories: , , Brand: Part Number: 2500005418

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Conductor category Class 6 = very flexible Connecting angle 180° (horizontal) Material Copper Surface protection Tinned AWG size 00 Nominal cross section 70 mm² Flange shape Ring shape Number of fixing holes 1 Bolt dimension (metric) 8 Insulated No With sight-hole Yes Slender flange model No
