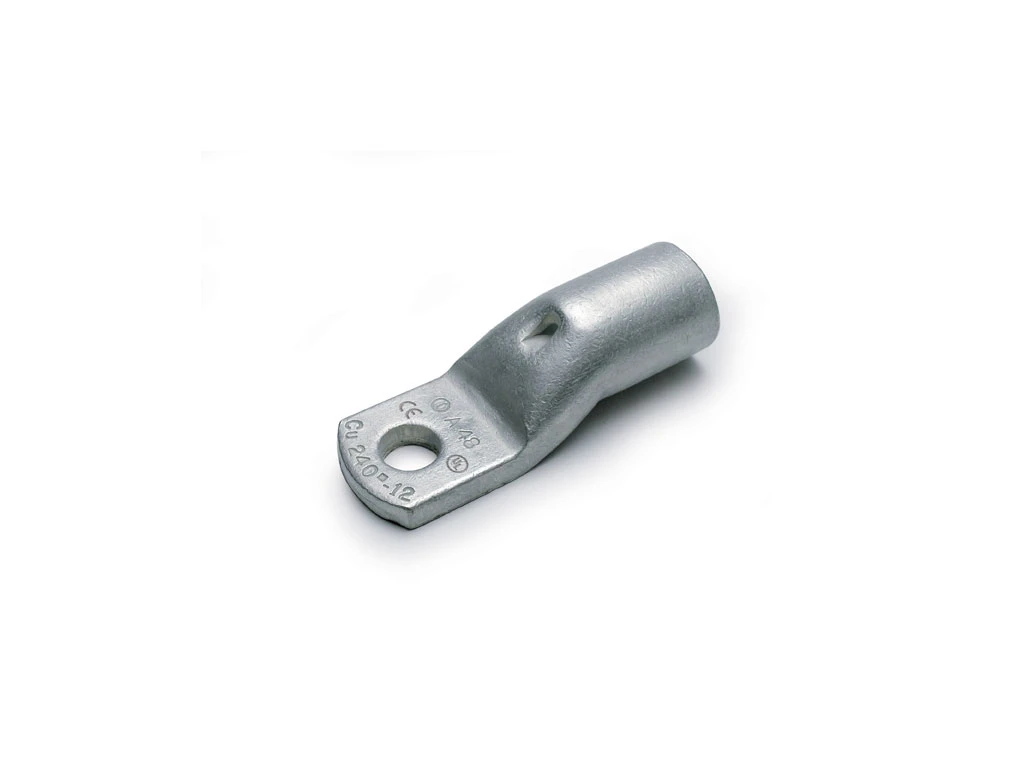

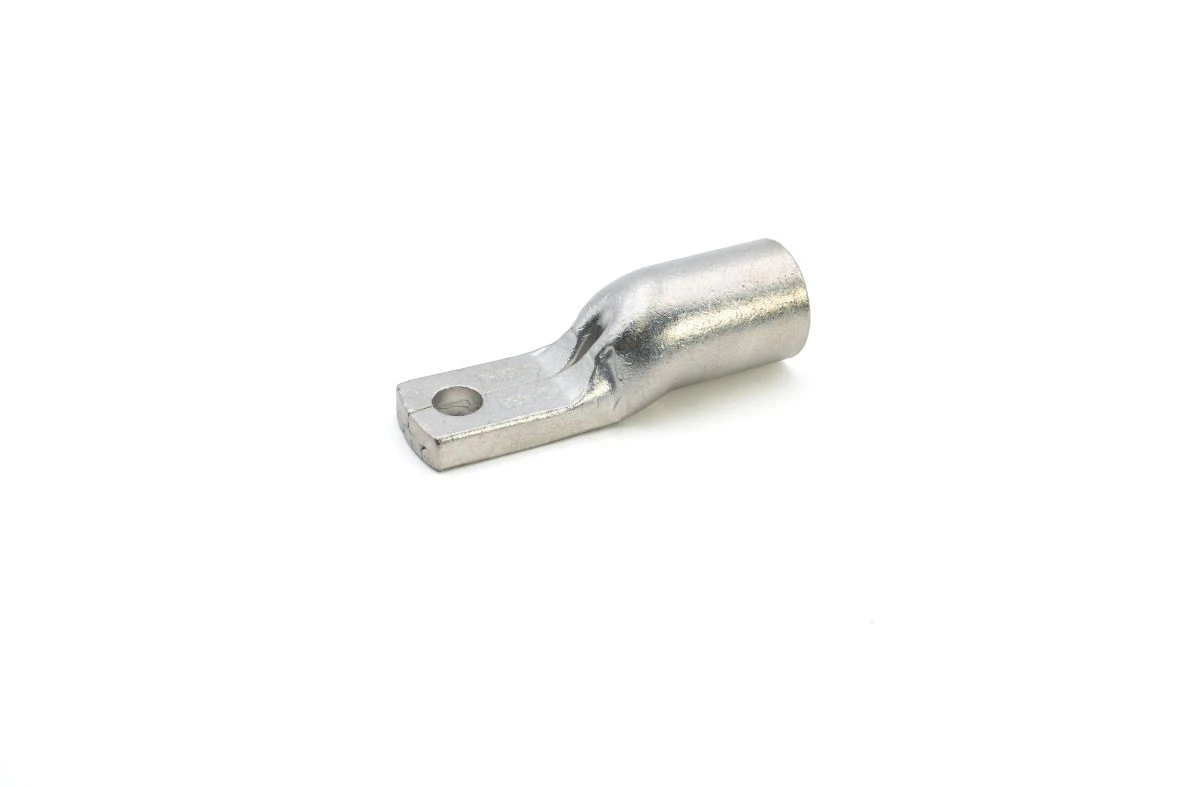

A-M Ring Tongue Terminal Contained Palm 120mm² 10mm Stud - 75 Pack
A-M Ring Tongue Terminal Contained Palm 120mm² 10mm Stud - 75 Pack
A-M Ring Tongue Terminal Contained Palm 120mm² 10mm Stud - 75 Pack - Image 2
A-M Ring Tongue Terminal Contained Palm 120mm² 10mm Stud - 75 Pack - Image 3
A-M Ring Tongue Terminal Contained Palm 120mm² 10mm Stud - 75 Pack - Image 4

A-M Ring Tongue Terminal Contained Palm 120mm² 10mm Stud – 75 Pack

£4.58 Incl. VAT

120mm² Copper tube crimping lug with contained palm M10 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Contained Palm

139 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A24B-M10/19 Categories: , , Brand: Part Number: 1050131088

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Material Copper Surface protection Tinned Conductor category Class 5 = flexible AWG size 000 Flange shape Ring shape Bolt dimension (metric) 10 Number of fixing holes 1 Insulated No Nominal cross section 120 mm² With sight-hole No Slender flange model Yes · Technical Data Sheet – Click to Download
