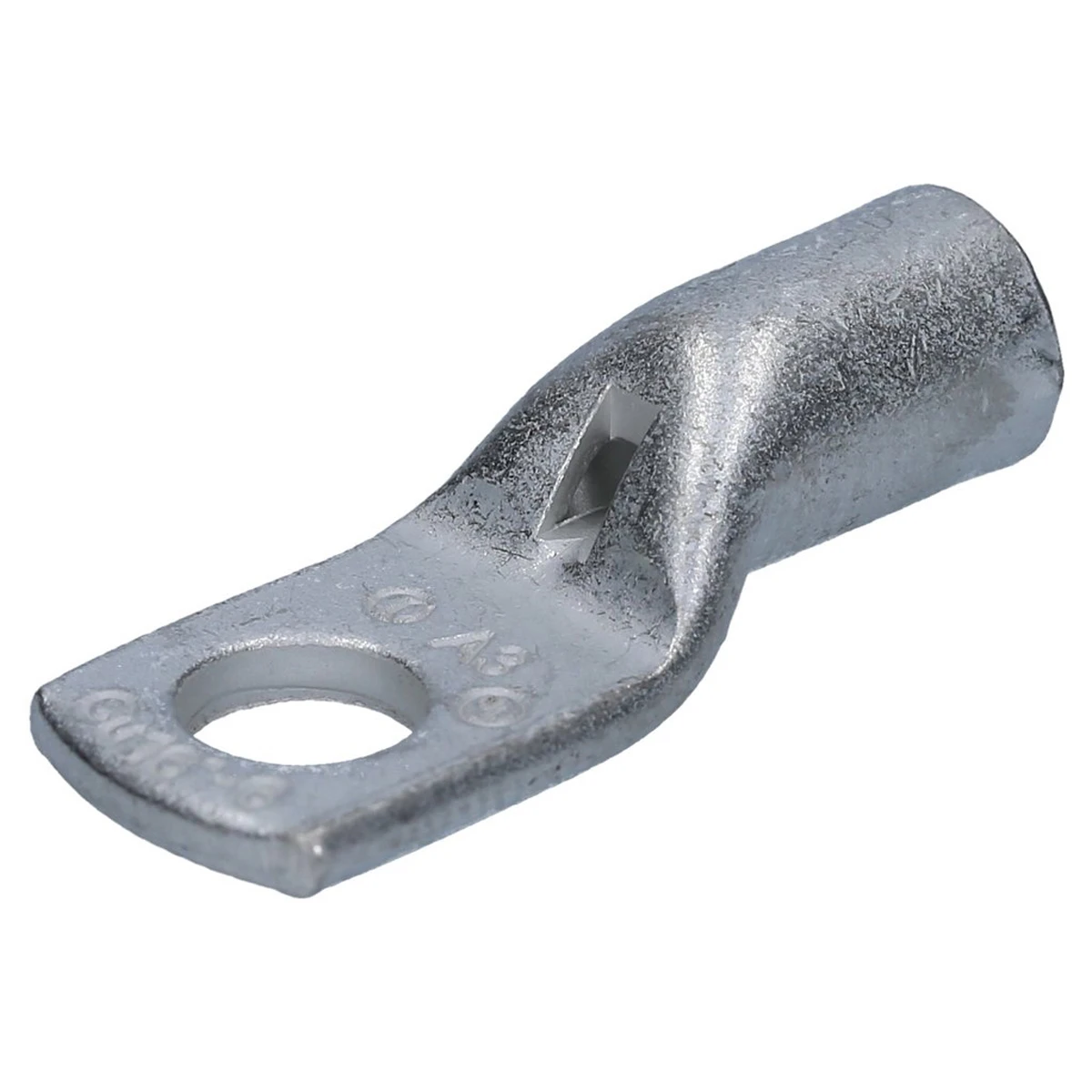

A-M Tube Crimping Lug Copper 16mm² 6mm Stud 1000/Pack
A-M Tube Crimping Lug Copper 16mm² 6mm Stud 1000/Pack
A-M Tube Crimping Lug Copper 16mm² 6mm Stud 1000/Pack - Image 2
A-M Tube Crimping Lug Copper 16mm² 6mm Stud 1000/Pack - Image 3
A-M Tube Crimping Lug Copper 16mm² 6mm Stud 1000/Pack - Image 4

A-M Tube Crimping Lug Copper 16mm² 6mm Stud 1000/Pack

£0.47 Incl. VAT

16mm² Copper tube crimping lug M6 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation

250 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A3-M6 Categories: , , Brand: Part Number: 2500003102

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Material Copper AWG size 6 Surface protection Tinned Conductor category Class 5 = flexible Flange shape Ring shape Bolt dimension (metric) 6 Number of fixing holes 1 Nominal cross section 16 mm² With sight-hole Yes Slender flange model No Insulated No · Technical Data Sheet – Click to Download
