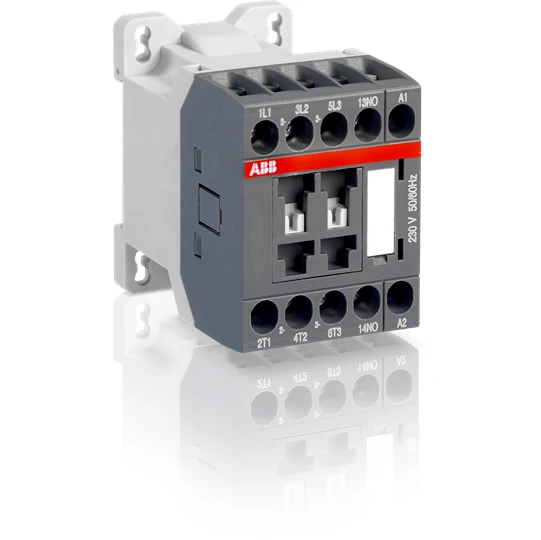

Product image supplied by the manufacturer
Contactors

ABB AS09-30-10-26 230V50/60Hz Contactor

Product code: 1SBL101001R2610Go Magpie Ref: 5060062361089

AS09 Contactors Are Mainly Used For Controlling 3-Phase Motors And Generally For Controlling Power Circuits Up To 690 V AC Or 220 V DC. They Are Mainly Used For Controlling 3-Phase Motors, Non-Inductive Or Slightly Inductive Loads. The AS.. Series 1-Stack 3-Pole Contactors Are Of The Block Type Design. – Main Poles And Auxiliary Contact Blocks: 3 Main Poles, 1 Built-In Auxiliary Contact, Front-Mounted Add-On Auxiliary Contact Blocks (Mechanically-Linked Auxiliary Contacts Compliant With Annex L Of IEC 60947-5-1. N.C. Mirror Contacts Compliant With Annex F Of IEC 60947-4-1) – Control Circuit: AC Operated With Laminated Magnet Circuit – Accessories: A Wide Range Of Accessories Is Available. · · · Block Contactor · · 3 NO Contacts · · 1 NO Aux · · Screw Terminal

£37.98inc VAT£31.65 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of main contacts as normally open contact 3 Number of normally closed contacts as main contact 0.00 Rated operation power at AC-3, 400 V 4 kW Number of auxiliary contacts as normally closed contact 0.00 Rated operation current Ie at AC-4, 400 V – A Rated operation power NEMA – kW Rated operation current Ie at AC-3, 400 V 9 A Rated operation power at AC-4, 400 V – kW Number of auxiliary contacts as normally open contact 1 Rated operation current Ie at AC-1, 400 V 22 A Rated control supply voltage at AC 50 Hz 230 – 230 V Rated control supply voltage at DC – – – V Modular version No Rated control supply voltage at AC 60 Hz 230 – 230 V · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1650526 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1650357 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1650358
