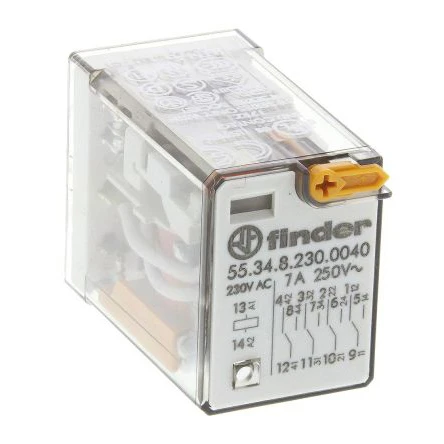

Finder Relay Plug-In 4P Co Lockable 7A 230V Ac Test Button&Mech In

Technical Specifications  Technical Specifications Switching relay Drive, switching attitude Mono stable Type of electric connection Plug-in connection Degree of protection (IP rating) IP40 Type of switch contact Single contact Drive, polarization Polarity free Voltage type for actuating AC Nominal current 7 A Width 20.7 mm Number of contacts as normally open contact 0 Number of contacts as normally closed contact 0 Number of contacts as change-over contact 4 Depth 27.7 mm Height 37.2 mm Rated control supply voltage at AC 50 Hz 230 – 230 V Rated control supply voltage at AC 60 Hz 230 – 230 V With detachable clamps No With forced-guided contacts No Complete with socket No With LED indication No · Technical Data Sheet – Click to Download
