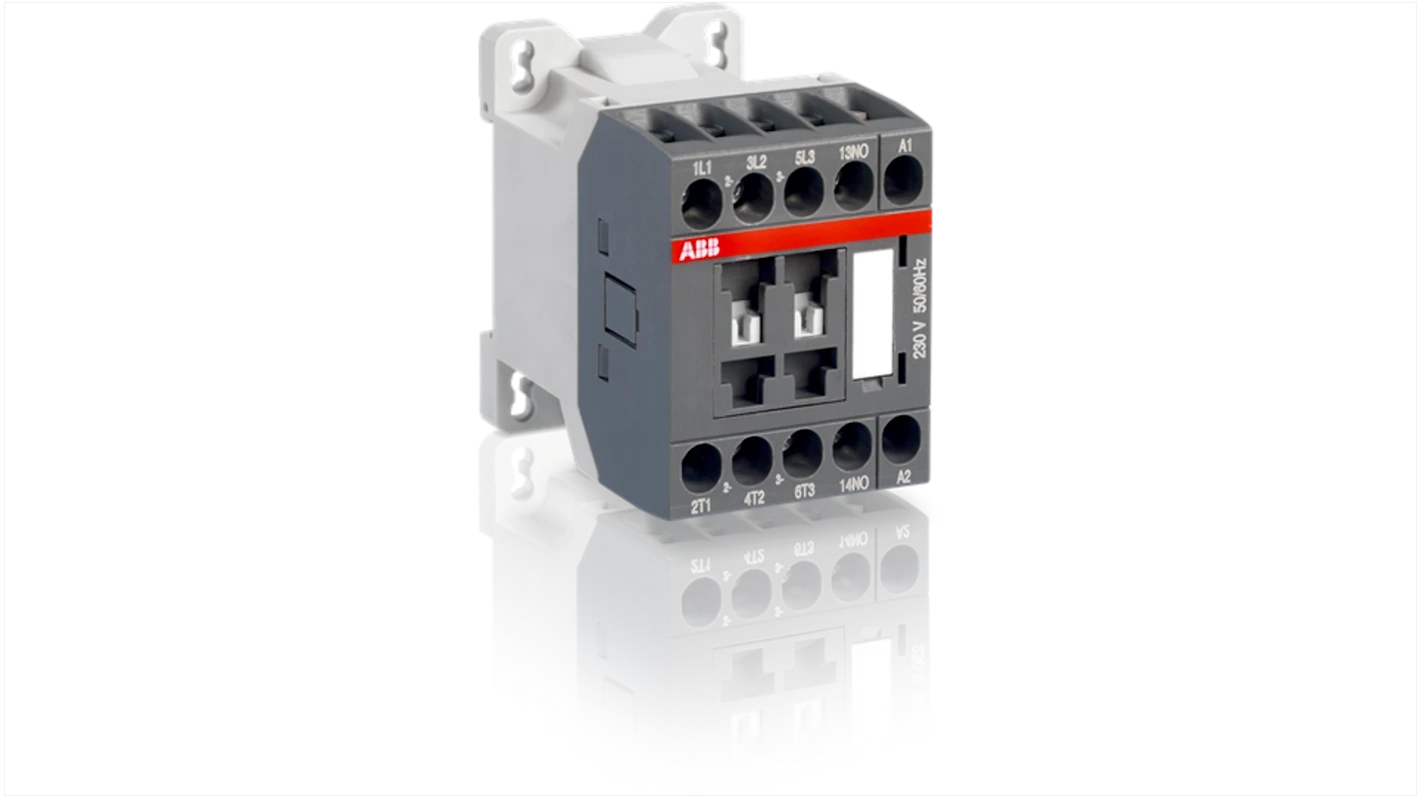

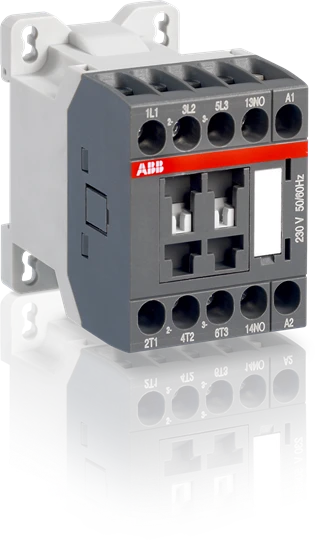

ABB AS16-30-01-20 24V50/60HZ Contactor
£72.42 Incl. VAT
AS16 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. They are mainly used for controlling 3-phase motors non-inductive or slightly inductive loads. The AS… series 1-stack 3-pole contactors are of the block type design. – Main poles and auxiliary contact blocks: 3 main poles 1 built-in auxiliary contact front-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) – Control circuit: AC operated with laminated magnet circuit – Accessories: a wide range of accessories is available. · · · acc. to IEC 60529 IEC 60947-1 EN 60529 Auxiliary Terminals IP20 · · 15.5A AC-3 · · 1 N/C Auxiliary built in
Out of stock
Description
Technical Specifications Technical Specifications Power contactor, AC switching Rated operation current Ie at AC-1, 400 V 24 A Number of normally closed contacts as main contact 0.00 Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 7.5 kW Number of auxiliary contacts as normally closed contact 1 Rated operation current Ie at AC-3, 400 V 15.5 A Rated operation power NEMA – kW Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-4, 400 V – A Number of auxiliary contacts as normally open contact 0.00 Rated control supply voltage at AC 50 Hz 24 – 24 V Rated control supply voltage at AC 60 Hz 24 – 24 V Rated control supply voltage at DC – – – V Modular version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
