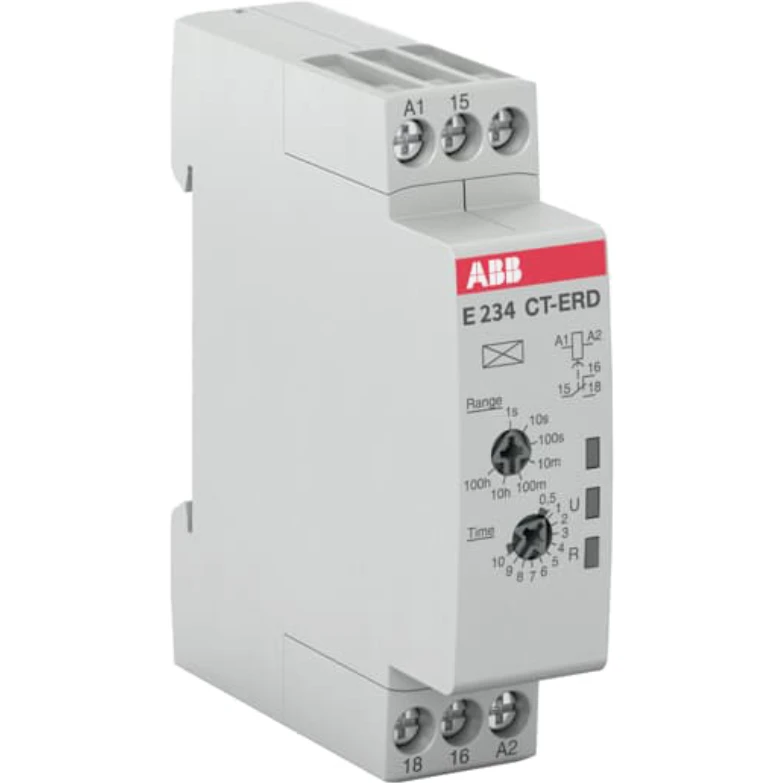

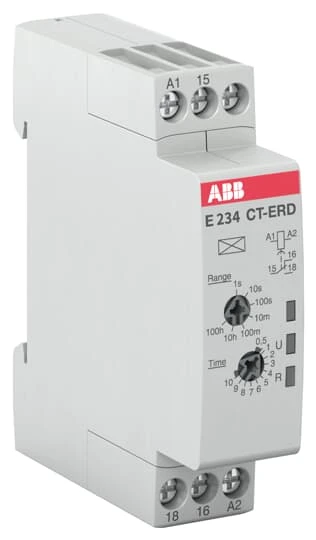

ABB CT-ERD.12 Time relay – ON-delay 1c/o – 24-240VAC 24-48VDC

Technical Specifications  Technical Specifications Timer relay Width 17.5 mm Height 70 mm Nominal current 6 A Depth 63 mm Number of outputs, undelayed, normally closed contact 0.00 Number of outputs, undelayed, normally open contact 0.00 Number of outputs, delayed, normally closed contact 0.00 Number of outputs, delayed, normally open contact 0.00 Number of outputs, undelayed, change-over contact 1 Number of outputs, delayed, change-over contact 1 Time range 0.05 – 360000 s Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at AC 60 Hz 24 – 240 V Rated control supply voltage at DC 24 – 48 V Suitable for DIN rail (top hat rail) mounting Yes With semiconductor output No Pluggable on auxiliary contact block No Outputs, reversible delayed/undelayed No Function delay on de-energization No Function floating contact on energization No Remote operation possible No Function delay-on energization Yes Function floating contact on de-energization No Function star-delta No Function pulse shaping No Function flashing, starting with pause, fixed time No Function flashing, starting with pulse, fixed time No Clock function, starting with pause, variable No Clock function, starting with pulse, variable No Suitable as remote control No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
