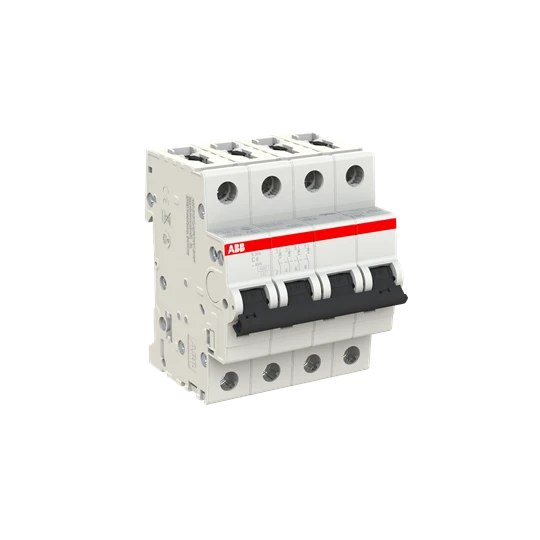

ABB S204-C6 Miniature Circuit Breaker - 4P - C - 6A
ABB S204-C6 Miniature Circuit Breaker - 4P - C - 6A

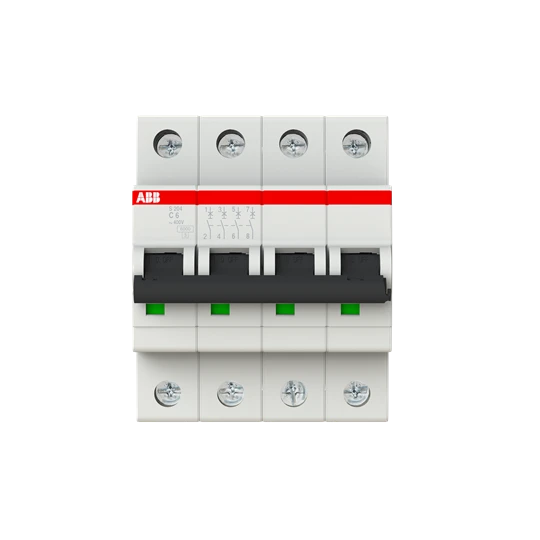

ABB S204-C6 Miniature Circuit Breaker - 4P - C - 6A - Image 2
ABB S204-C6 Miniature Circuit Breaker - 4P - C - 6A - Image 3
ABB S204-C6 Miniature Circuit Breaker - 4P - C - 6A - Image 4

ABB S204-C6 Miniature Circuit Breaker – 4P – C – 6A

£208.93 Incl. VAT

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B C D K Z) configurations (1P 1P+N 2P 3P 3P+N 4P) breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1 IEC/EN 60947-2 UL1077 allowing the use for residential commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. · · · IP20 · · (230 V AC) 15 kiloampere · · 4 Pole

2 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS254001R0064 Categories: , , Brand: Part Number: 2501531592

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Rated voltage 400 V Recess depth 69 mm Rated insulation voltage Ui 440 V Current limiting class 3 Over voltage category 3 Width in number of modular spacings 4 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Rated current 6 A Number of protected poles 4 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Pollution degree 3 Number of poles (total) 4 Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Frequency 50 – 60 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Ambient temperature during operating -25 – 55 °C Concurrently switching N-neutral No Additional equipment possible Yes Flush-mounted installation No Explosion-proof No Suitable for flush-mounted installation No · Technical Data Sheet – Click to Download
