Circuit Breakers & Devices

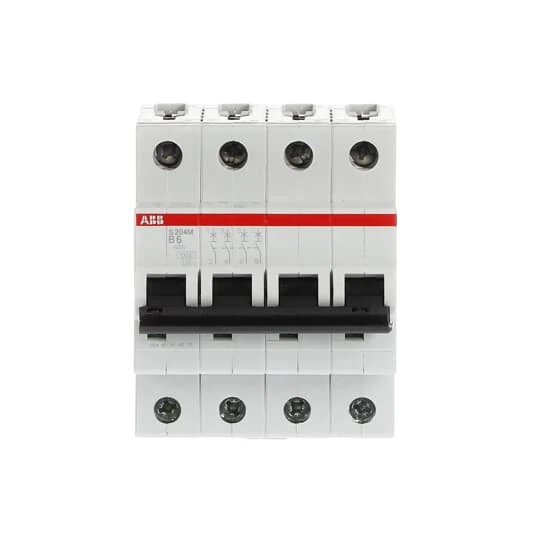

ABB S204M-B6 Miniature Circuit Breaker – 4P – B – 6 A
Product code: 2CDS274001R0065Go Magpie Ref: 5060062332993
System Pro M Compact S200M Miniature Circuit Breakers Are Current Limiting. They Have Two Different Tripping Mechanisms, The Delayed Thermal Tripping Mechanism For Overload Protection And The Electromechanic Tripping Mechanism For Short Circuit Protection. They Are Available In Different Characteristics (B,C,D,K,Z), Configurations (1P,1P+N,2P,3P,3P+N,4P), Breaking Capacities (Up To 10 KA At 230/400 V AC) And Rated Currents (Up To 63A). All MCBs Of The Product Range S200M Comply With IEC/EN 60898-1 And IEC/EN 609 47-2, Allowing The Use For Residential, Commercial And Industrial Applications. Bottom-Fitting Auxiliary Contact Can Be Mounted On S200M To Save 50% Space. · · · Miniature Circuit Breaker · · (230 V AC) 7.5 kiloampere · · 4 Pole
£151.12inc VAT£125.93 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 25 kA Over voltage category 3 Number of protected poles 4 Pollution degree 3 Number of poles (total) 4 Rated insulation voltage Ui 440 V Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated current 6 A Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Current limiting class 3 Width in number of modular spacings 4 Recess depth 69 mm Rated voltage 400 V Frequency 50 – 60 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Ambient temperature during operating -25 – 55 °C Explosion-proof No Additional equipment possible Yes Flush-mounted installation No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
