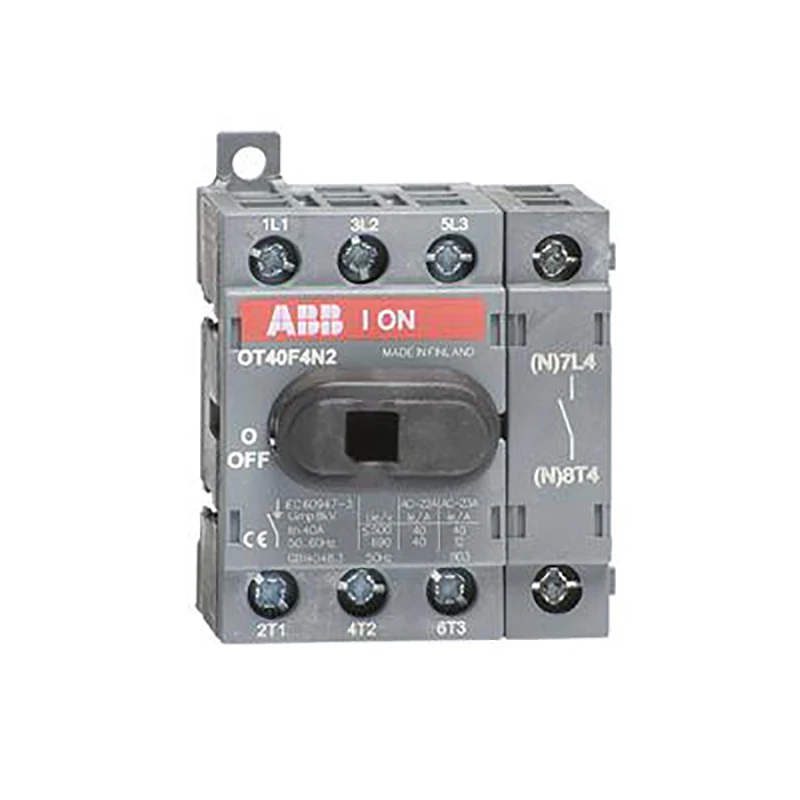

ABB Switch Disconnector Front Operated 4P Term Clamps 40A IP20

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Colour control element Black Type of control element Toggle Degree of protection (IP), front side IP20 Device construction Suitable for fixed installation Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Type of electrical connection of main circuit Screw connection Switching power at 400 V 11 kW Rated operation power at AC-3, 400 V 11 kW Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-21, 400 V 40 A Rated operation power at AC-23, 400 V 11 kW Number of poles 4 Conditioned rated short-circuit current Iq 0.705 kA Rated permanent current Iu 40 A Rated short-time withstand current lcw 0.5 kA Number of auxiliary contacts as change-over contact 0 Rated operating voltage 750 – 750 V Version as maintenance-/service switch No Version as safety switch No Version as emergency stop installation No Motor drive integrated No Interlockable No Suitable for distribution board installation Yes Version as main switch Yes Version as reversing switch No Motor drive optional No Voltage release optional No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for intermediate mounting No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
