ABB TF42-13 Thermal Overload Relay
ABB TF42-13 Thermal Overload Relay

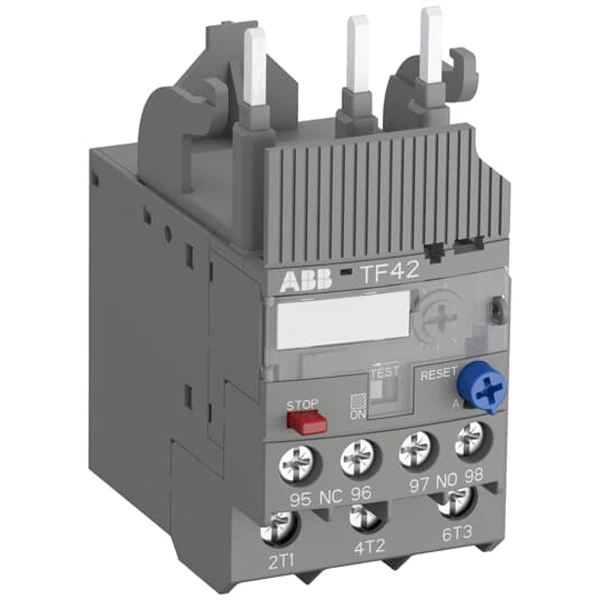

ABB TF42-13 Thermal Overload Relay - Image 2
ABB TF42-13 Thermal Overload Relay - Image 3

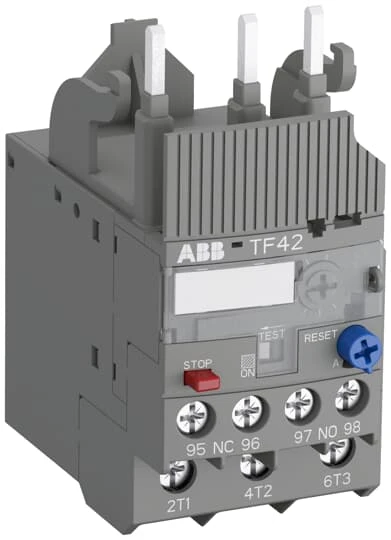

ABB TF42-13 Thermal Overload Relay - Image 4

ABB TF42-13 Thermal Overload Relay

£67.81 Incl. VAT

ABB 1SAZ721201R1045 3 Pole thermal overload relay is an economic electromechanical protection device for the main circuit, , 13A rated operational current. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory. · · · Current Rating: 10-13A · · Height: 88.3mm · · Range: TF42 · · Width: 45mm · · Weight: 130g · · Depth: 70.5mm · · Reset Type: Automatic/Manual

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SAZ721201R1045 Categories: , , Brand: Product Code: 2500385939

Description

Technical Specifications  Technical Specifications Thermal overload relay Number of auxiliary contacts as normally closed contact 1 Number of auxiliary contacts as change-over contact 1 Number of auxiliary contacts as normally open contact 1 Adjustable current range 10 – 13 A Max. rated operation voltage Ue 690 V Reset function input No Reset function automatic Yes Reset function push-button Yes · Technical Data Sheet – Click to Download
