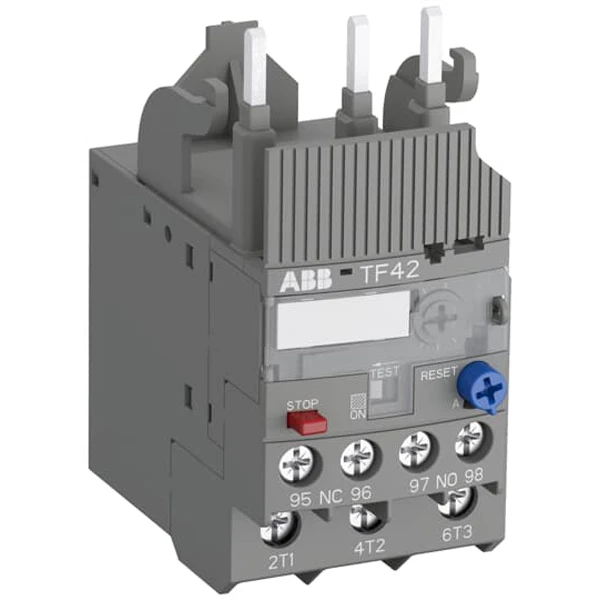

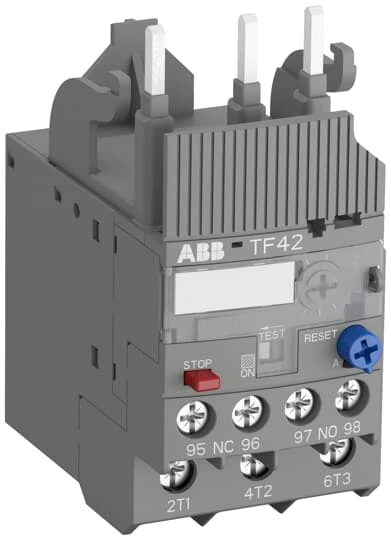

ABB TF42-20 Thermal Overload Relay

SKU: 1SAZ721201R1049Go Magpie ID: 5060062355356

ABB 1SAZ721201R1049 3 Pole thermal overload relay is an economic electromechanical protection device for the main circuit, 20A rated operational current. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory. · · · Current Rating: 16-20A · · Height: 88.3mm · · Range: TF42 · · Width: 45mm · · Weight: 135g · · Depth: 70.5mm · · Reset Type: Automatic/Manual · · Mechanical/Electrical durability: 100000 cycles · · Ambient temperature: -20°C to 60°C · · IP20/IK04 Degree of protection

£82.02inc VAT£68.35 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Thermal overload relay Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as normally closed contact 1 Max. rated operation voltage Ue 690 V Number of auxiliary contacts as change-over contact 1 Reset function input No Adjustable current range 16 – 20 A Reset function push-button Yes Reset function automatic Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
