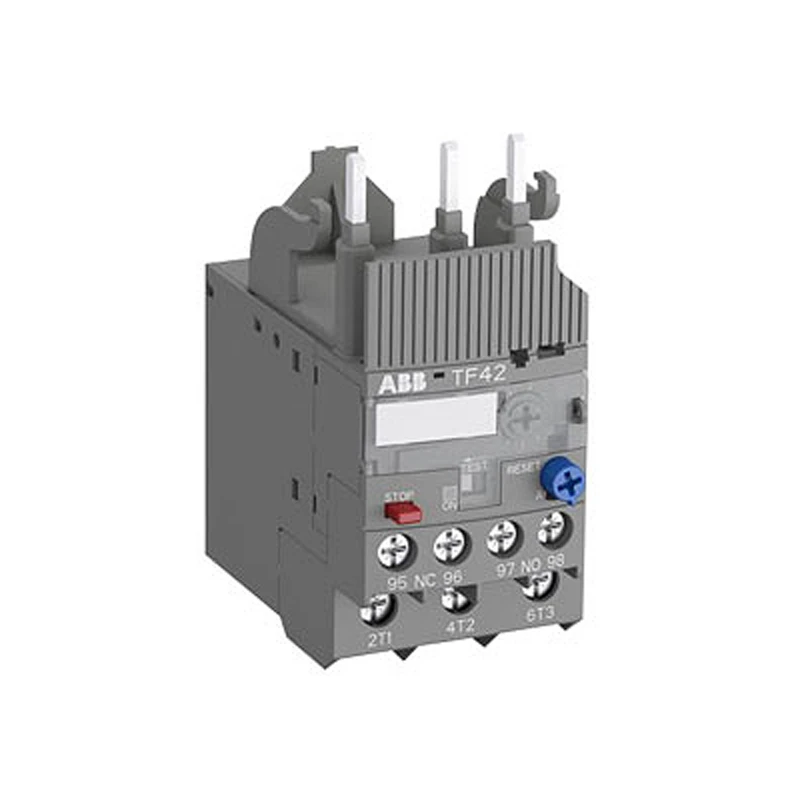

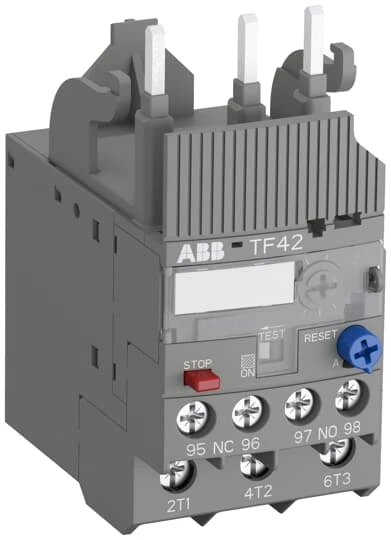

ABB TF42-5.7 Thermal Overload Relay

SKU: 1SAZ721201R1038Go Magpie ID: 5060062338782

ABB 1SAZ721201R1038 3 Pole thermal overload relay is an economic electromechanical protection device for the main circuit, 5.7A rated operational current. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory. · · · Current Rating: 4.2-5.7A · · Height: 88.3mm · · Range: TF42 · · Width: 45mm · · Weight: 130g · · Depth: 70.5mm · · Reset Type: Automatic/Manual

£63.49inc VAT£52.91 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Thermal overload relay Number of auxiliary contacts as normally closed contact 1 Number of auxiliary contacts as normally open contact 1 Max. rated operation voltage Ue 690 V Number of auxiliary contacts as change-over contact 1 Adjustable current range 4.2 – 5.7 A Reset function input No Reset function automatic Yes Reset function push-button Yes · Technical Data Sheet – Click to Download
