Acti9 Ic100Kp+ 2C (1 - 99000 Lux) Smart Programmable Twilight Switch
Acti9 Ic100Kp+ 2C (1 - 99000 Lux) Smart Programmable Twilight Switch
Acti9 Ic100Kp+ 2C (1 - 99000 Lux) Smart Programmable Twilight Switch - Image 2
Acti9 Ic100Kp+ 2C (1 - 99000 Lux) Smart Programmable Twilight Switch - Image 3

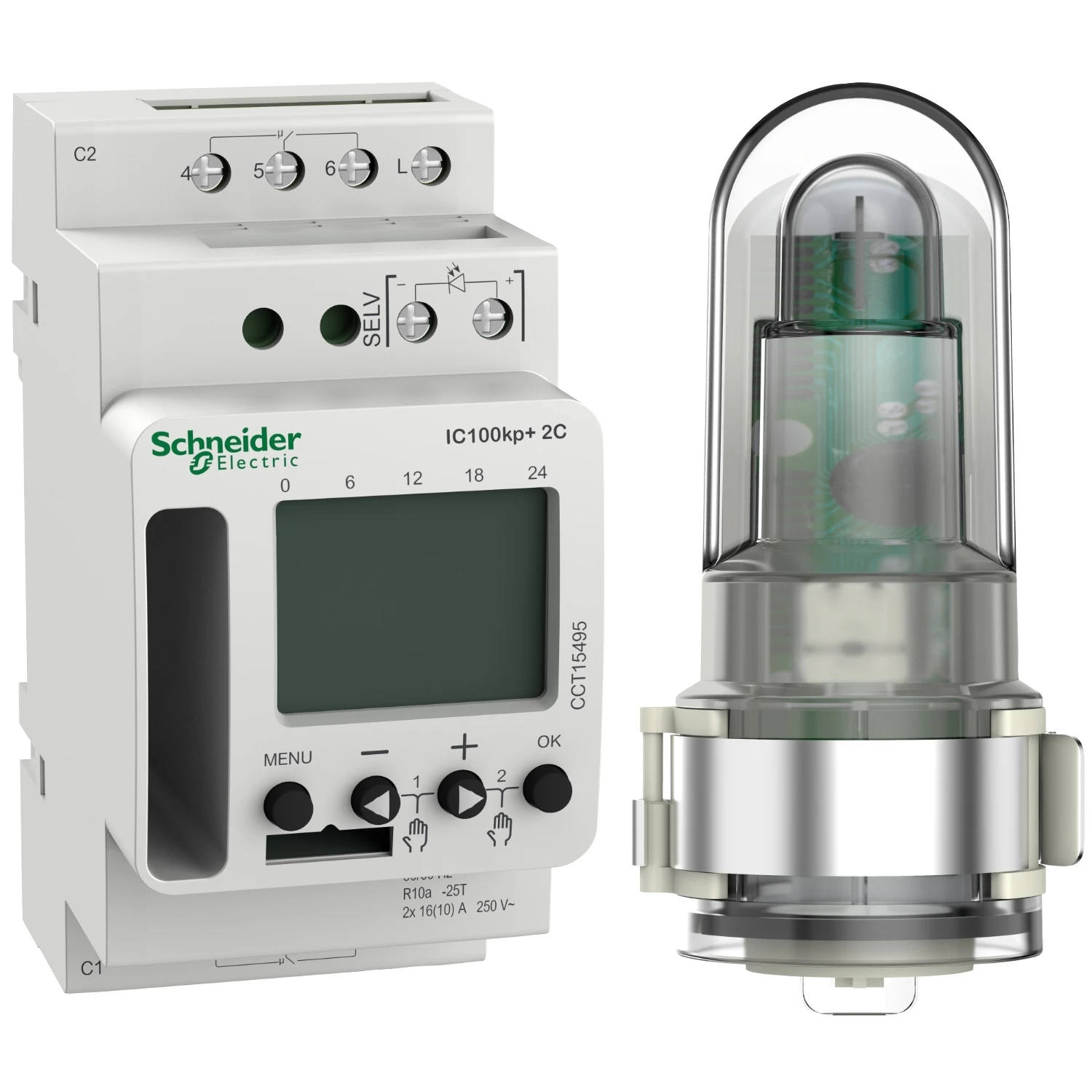

Acti9 Ic100Kp+ 2C (1 – 99000 Lux) Smart Programmable Twilight Switch

£508.19 Incl. VAT

IC100kp+ SMART digital twilight switch Width of 45mm (5 modules of 9mm) To start and stop an electric load according to measured light level between 1 – 99.000 lux. Integrated time switch with swiching cycle is 7 days (weekly) Number of switching operations: 84 Savings on mains cut off with battery reserve: 10 years Manual overrides are possible. Delivered with outdoor wall-mounted sensor 2 channel outputs Programming could be done also with memory key and PC software User manual holder on product left side allows to reach document easily · · · IC100kp+ SMART digital twilight switch · · Width of 45mm (5 modules of 9mm) · · To start and stop an electric load according to measured light level between 1 – 99.000 lux. · · Integrated time switch with swiching cycle is 7 days (weekly) · · Number of switching operations: 84

7 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CCT15495 Categories: , , Brand: Part Number: 2501267290

Description

Technical Specifications  Technical Specifications Twilight switch for distribution board Rated switch current 16.00 A Max. load fluorescent lamp (parallel compensated) 730.00 VA Max. conductor length light sensor 50.00 m Max. switching current (cos phi = 0.6) 10.00 A Width in number of modular spacings 2.50 Rated voltage light sensor – V Max. incandescent lamp load 2600.00 W Max. load fluorescent lamp 2300.00 VA Max. load fluorescent lamp (Duo circuit) 2300.00 VA Recess depth 67.00 mm Rated voltage 230.00 V Rated frequency 50.00 – 60.00 Hz Adjustment range brightness value 1.00 – 99000.00 lx With programmable overnight shutoff Yes Push button input Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191307
