Basec Approved 6242Y 2 Core 1mm² Copper Twin and Earth Cable 100m Grey
Basec Approved 6242Y 2 Core 1mm² Copper Twin and Earth Cable 100m Grey

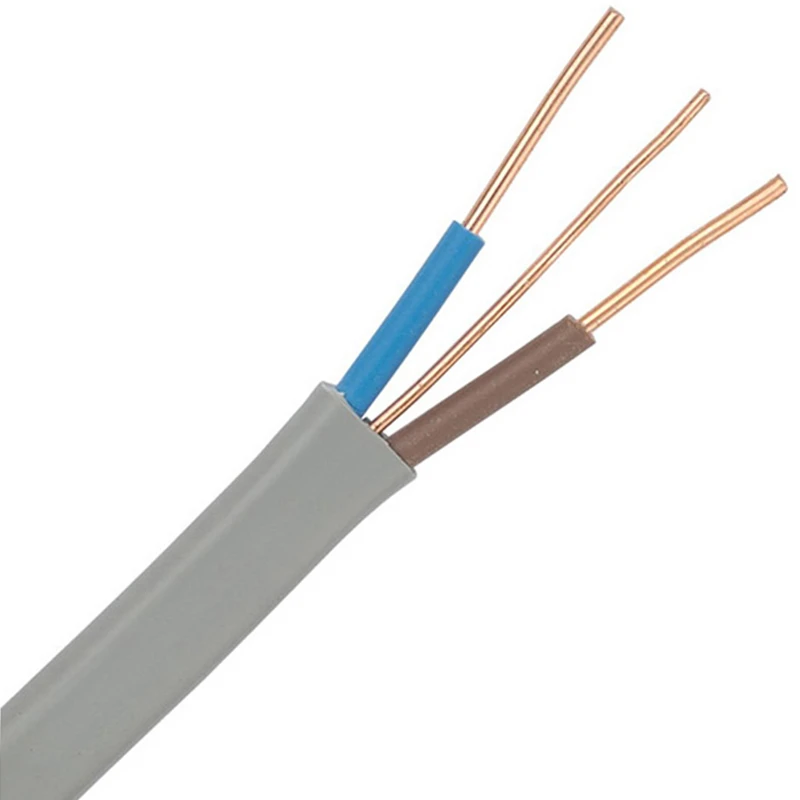

Basec Approved 6242Y 2 Core 1mm² Copper Twin and Earth Cable 100m Grey - Image 2
Basec Approved 6242Y 2 Core 1mm² Copper Twin and Earth Cable 100m Grey - Image 3
Basec Approved 6242Y 2 Core 1mm² Copper Twin and Earth Cable 100m Grey - Image 4

Basec Approved 6242Y 2 Core 1mm² Copper Twin and Earth Cable 100m Grey

£60.48 Incl. VAT

A premium flat copper wiring cable with bare CPC. This cable can be installed in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. · · · BASEC Approved · · Conductor Area: 1mm² · · Suitable for commercial and domestic applications · · Operating temperature: -15°C to 70°C · · Fixed bending radius: r=4D

Minimum order: 100 units.

1129100 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6242YH-1.0-GRY100 CABL-RX Categories: , , , Brand: Part Number: 2500142984

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Conductor category Class 1 = solid Sheath colour Grey Conductor Diameter 1 mm Nominal cross sectional area of conductor 1 mm² Core identification Colour Conductor surface Bare Core insulation material Polyvinyl chloride (PVC) Conductor material Copper Sheath material Polyvinyl chloride (PVC) Core colour Several Number of cores 2 Nominal voltage U 500 V Nominal voltage U0 300 V Max. conductor temperature 70 °C Permitted cable outer temperature during assembling/handling 0 - 60 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen No Drain wire Yes · Technical Data Sheet – Click to Download
