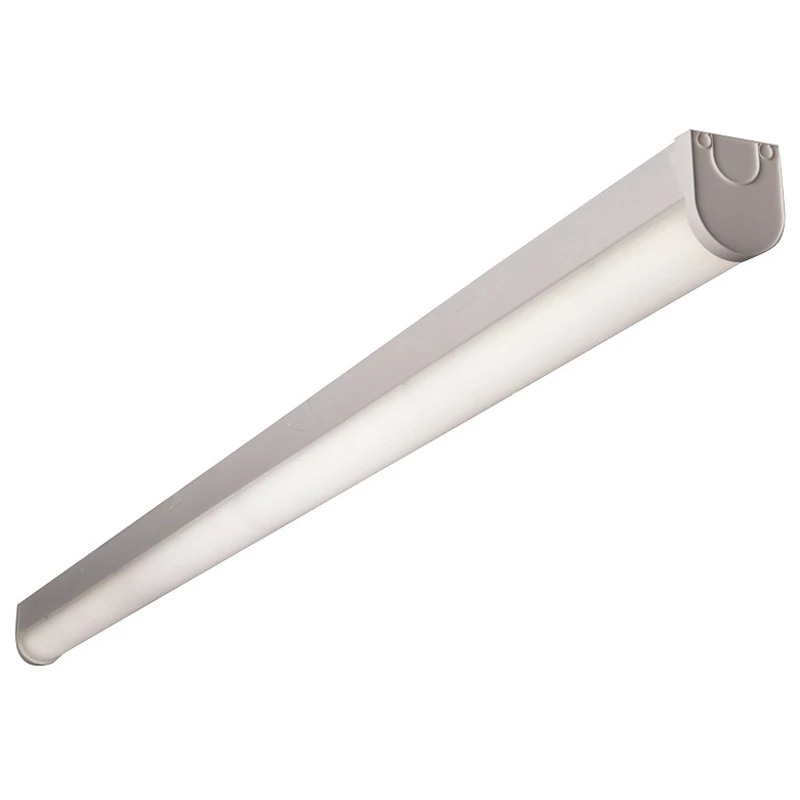

Batten LED IP20 48W 4000K 5060lm 1.5m

Description

Technical Specifications  Technical Specifications Batten luminaire Degree of protection (IP rating) IP20 Material Steel Width 62 mm Number of lamps – Number of poles – Length 1460 mm Rated luminous flux acc. IEC 62722-2-1 – lm Nominal voltage 220 – 240 V Rated life time L70/B50 at 25 °C 50000 h Luminaire efficacy 118 lm/W Height/depth 74 mm Power factor 0.97 Maximum system power 45.8 W Conductor cross section – mm² Lamp power – – – W Colour temperature 4000 – 4000 K Nominal current 240 – 240 mA Light source included Yes With movement sensor No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for emergency lighting No Dimming 0-10 V No Dimming sine wave reduction No Dimming potentiometer (integrated) No Dimming DMX No Luminaire may be covered with thermally insulating material No With light sensor No Dimming leading edge No Dimming manufacturer’s proprietary system No Bluetooth operated No Dimming trailing edge No Control gear included Yes Dimming DSI No Dimming with push-button No Dimming mains voltage modulation No No dimming function Yes Dimming 1-10 V No Dimming LineSwitch No Dimming DALI No Dimming RF No Dimming Zigbee No Dimming programmable No Dimming touch and dim No · Technical Data Sheet – Click to Download
