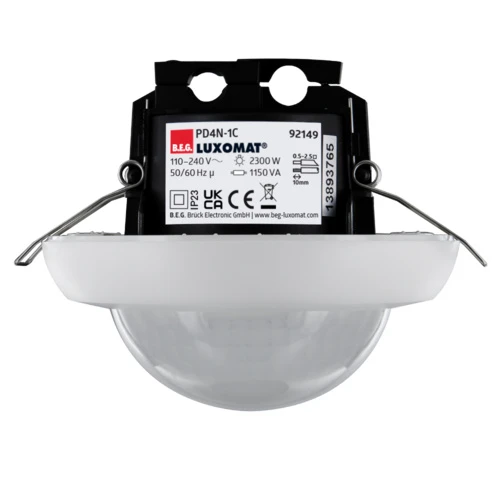

BEG Detector Occupancy Pd4 Ceiling White 1 Channel

Description

Technical Specifications  Technical Specifications Motion detector Material Plastic Mounting method Flush mounted Colour White Model Movement sensor Degree of protection (IP rating) IP23 Surface finish Not applicable Surface protection Untreated RAL-number (similar) 9010 Voltage type AC Max. starting current 10 A Max. reach sideways 12 m Max. reach frontally 4 m Max. switching power 2300 W Switch-off delay 1800 s Min. switch-on time 15 s Number of switching zones 1 Optimum mounting height 2.5 m Diameter reach on floor 24 m Control current 2.2 mA Max. duty cycle 30 min Frequency 50 – 60 Hz Detection angle horizontal 0 – 360 ° Response value luminosity 10 – 2000 lx Transparent No Bridging switch Yes With remote control Yes Staircase monitoring Yes Constant light control No Suitable for wireless transmission No Response value sensitivity adjustable No Creep-under protection Yes Halogen free Yes Auxiliary input No With signal unit No Dim function with dimmer basic element No Remote operation Yes Animal zone No Networkable No HVAC-control No Forced switch off Yes Response value luminosity adjustable Yes Suitable for C-load Yes Teach-function for response value luminosity Yes Alarm function Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
