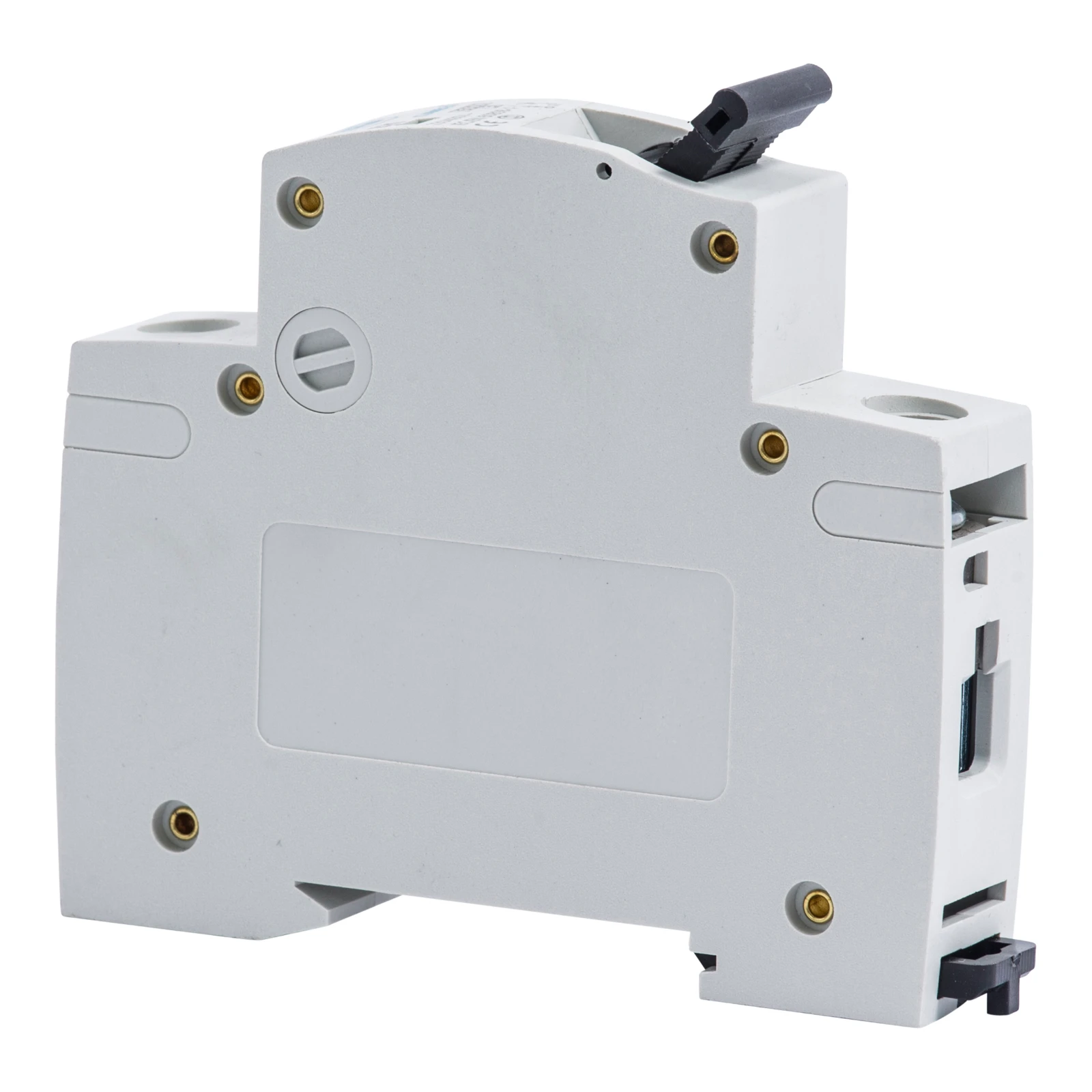

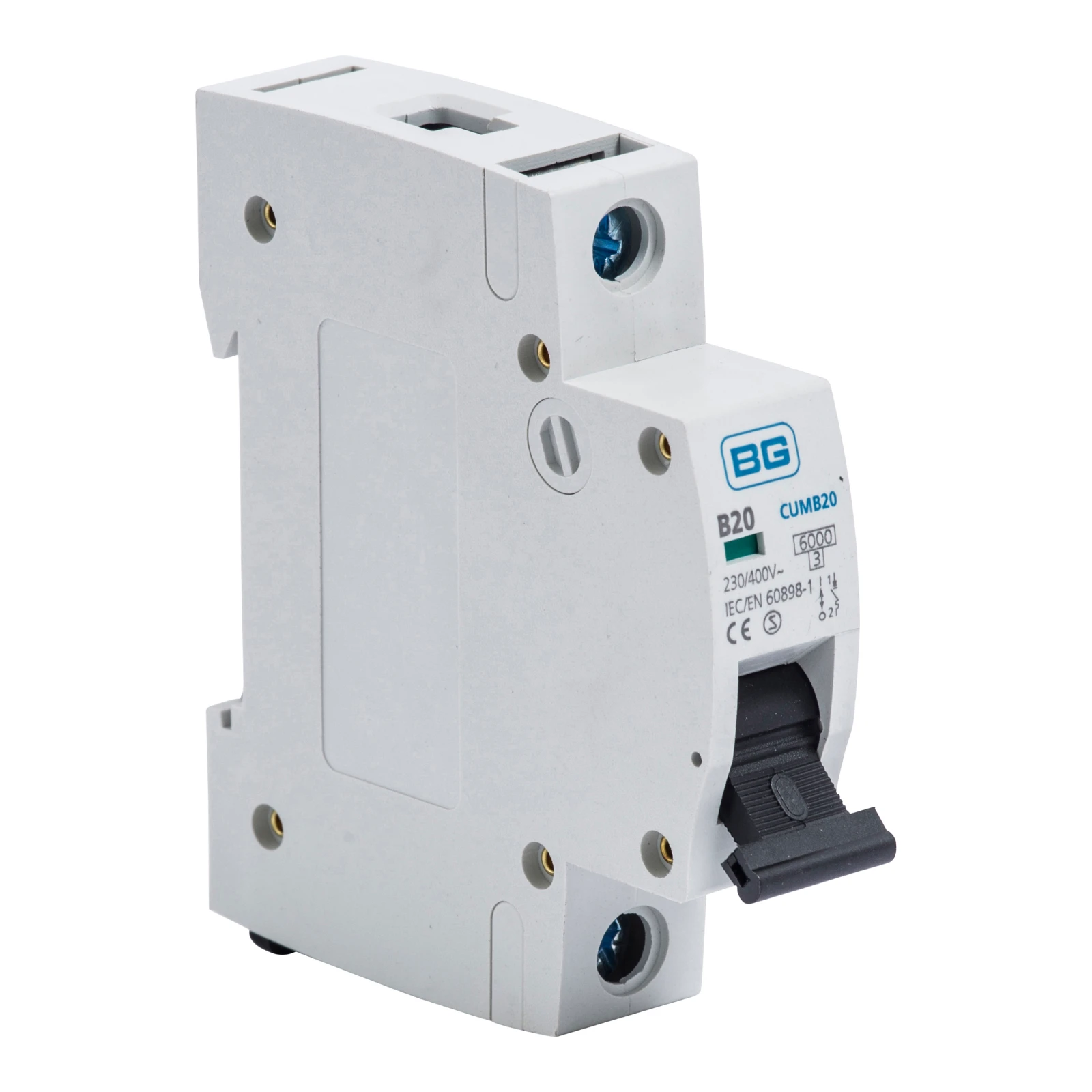

BG CUMB20 20A Single Pole Miniature Circuit Breaker
BG CUMB20 20A Single Pole Miniature Circuit Breaker
BG CUMB20 20A Single Pole Miniature Circuit Breaker - Image 2
BG CUMB20 20A Single Pole Miniature Circuit Breaker - Image 3

BG CUMB20 20A Single Pole Miniature Circuit Breaker

£3.13 Incl. VAT

A Miniature Circuit Breaker featuring thermo-magnetic tripping technology, current limiting MCBs available with type B operating characteristics, which provide overload and short circuit protection. All MCB have a positive contact status indicator, when green window is visible this indicates that there is a 4mm contact gap. · · · Positive contact status indication · · Device capable of being locked in ‘ON’ or ‘OFF’ position using a device lock · · Manufactured and tested to EN/IEC 60898 standards · · 6kA breaking capacity · · 20A · · B Curve

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CUMB20 Categories: , , Brand: Part Number: 2500354102

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Degree of protection (IP rating) IP20 Voltage type AC Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Number of poles (total) 1 Rated current 20 A Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Frequency 50 – 50 Hz
