Bizline Connexion SQUALE 6 Kit for Sealed Connection up to 4 Conductors of Wire Section 6 mm²
Bizline Connexion SQUALE 6 Kit for Sealed Connection up to 4 Conductors of Wire Section 6 mm²
Bizline Connexion SQUALE 6 Kit for Sealed Connection up to 4 Conductors of Wire Section 6 mm² - Image 2
Bizline Connexion SQUALE 6 Kit for Sealed Connection up to 4 Conductors of Wire Section 6 mm² - Image 3
Bizline Connexion SQUALE 6 Kit for Sealed Connection up to 4 Conductors of Wire Section 6 mm² - Image 4

Bizline Connexion SQUALE 6 Kit for Sealed Connection up to 4 Conductors of Wire Section 6 mm²

£27.16 Incl. VAT

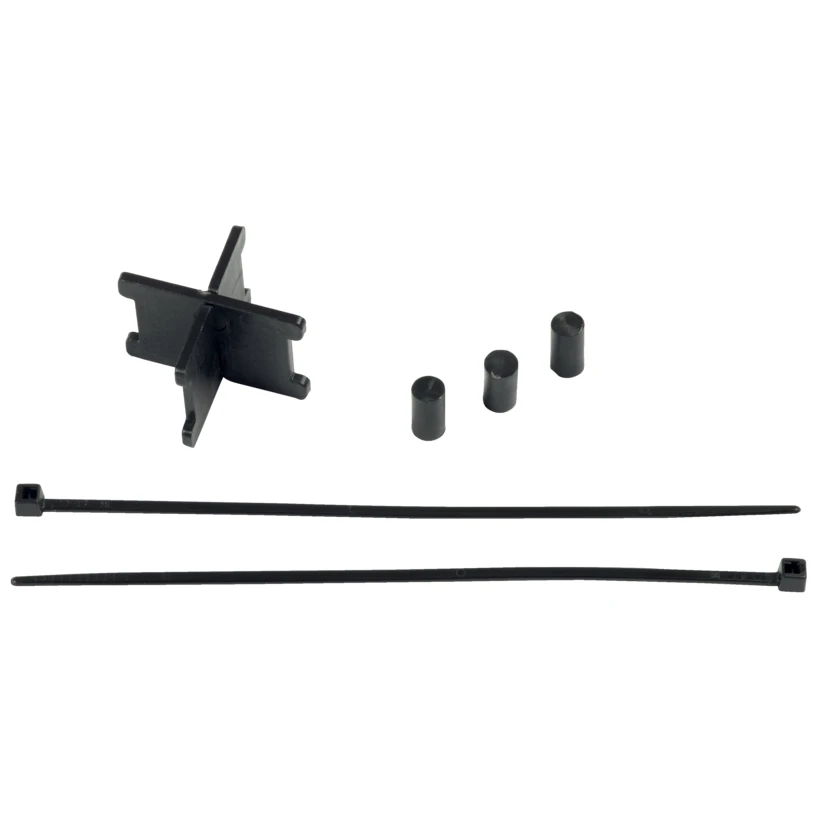

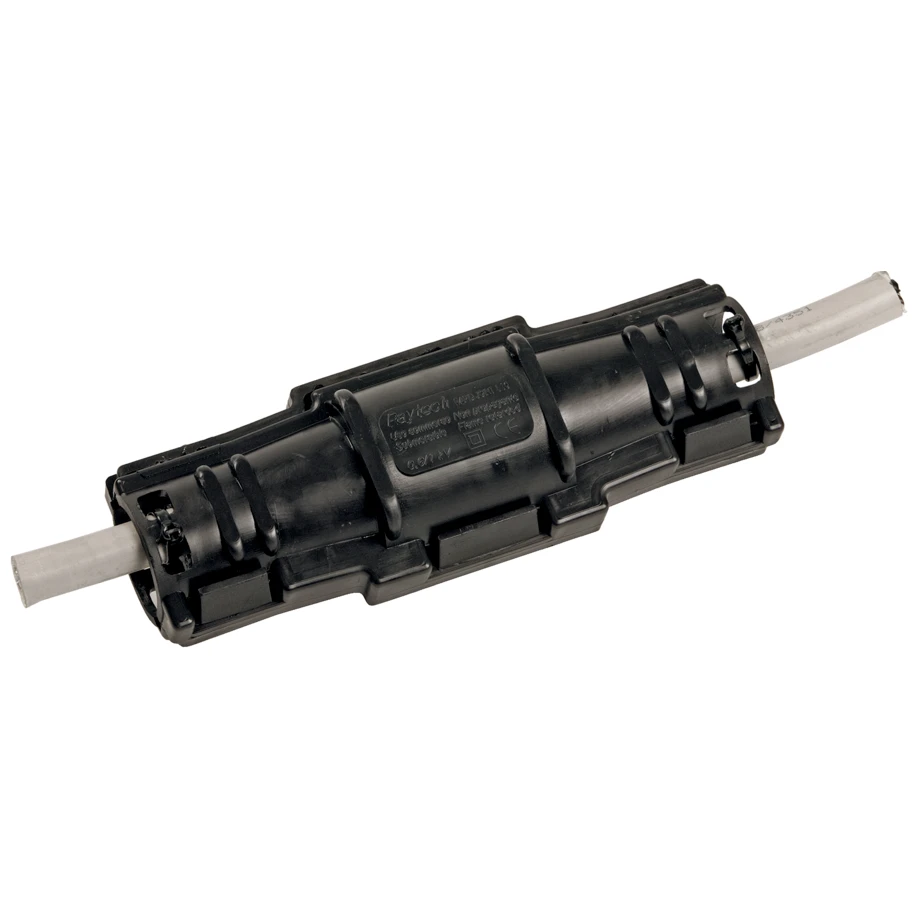

SQUALE 6 prefilled connection kit for cables up to 4 x 6 mm² with cable separator. Seals and insulates electrical connections. Non-toxic, no expiry date and can be resealed. Interior or exterior installation. · · · Voltage: 0.6 to 1 kV. · · For connecting, insulating, sealing and protecting copper electrical cables. · · Supplied with cable centring device and cable ties for holding conduits.

13 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: BIZ 710294 Categories: , , Brand: Part Number: 2501419614

Description

Technical Specifications  Technical Specifications Cable jointing kit straight Connection accessories None Insulation material type Plastic Model Gel Rated voltage U0/U (Um) 0.6/1 (1.2) kV Number of conductors 4 Nominal cross section conductor 2.5 – 150 mm² With concentric shielding No For connection of paper- with plastic insulated cables No With protective conductor No Halogen free Yes Mining sector approval No · Technical Data Sheet – Click to Download
