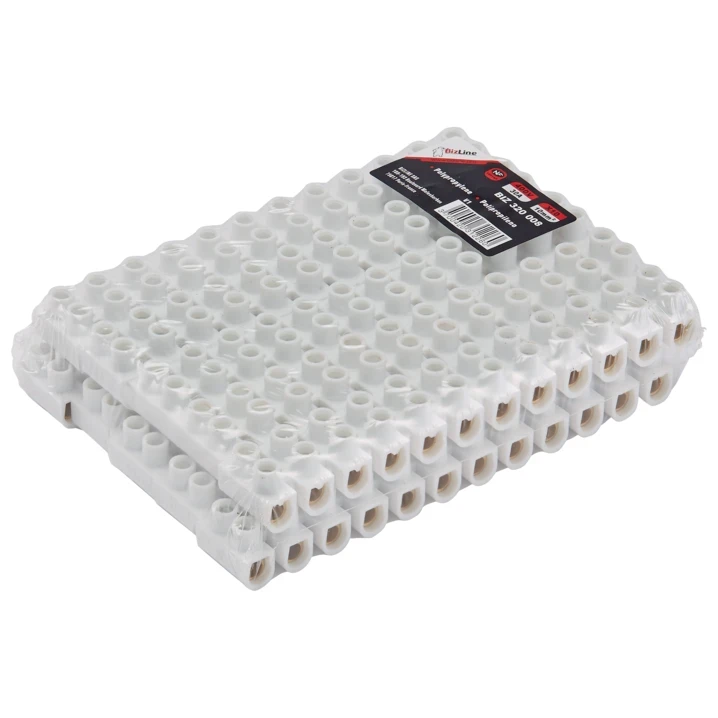

Bizline Terminal Blocks 25mm² White Polypropylene – 10 Pack
£54.68 Incl. VAT

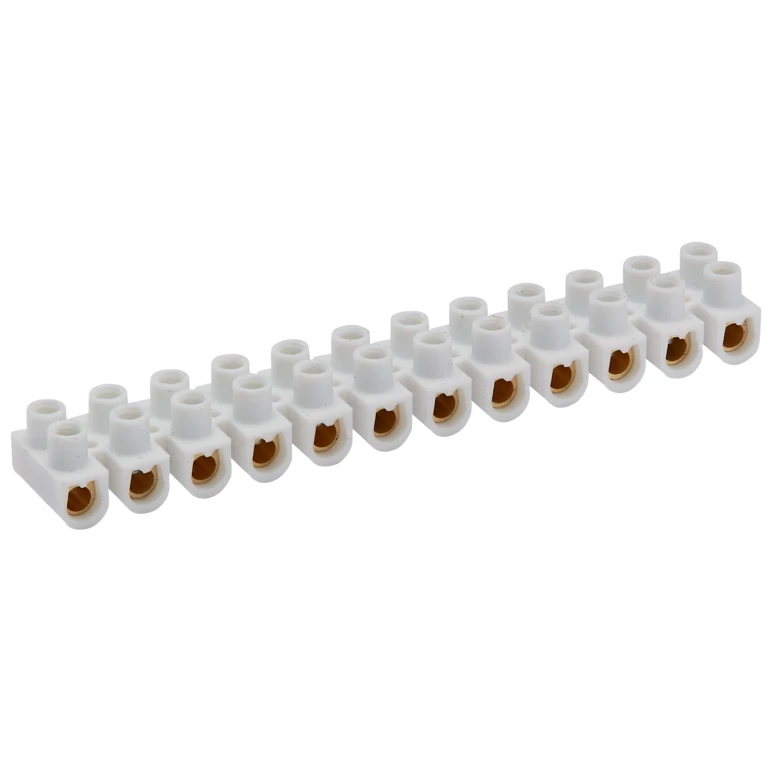

12-way white polypropylene 25 mm² terminal blocks, sold with screws engaged at 1/3. Ultra-flexible, the blocks can be separated with 1.5 turns without the use of tools. NF compliant. · · · 12-way polypropylene connector strips. · · Supplied with screws engaged at 1/3. · · Glow wire test: 960 °C.
52 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Single- and multi-pole terminal strip Connection position Sideways Material insulation body Thermoplastic Colour White Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Height – mm Rated voltage 400 V Width – mm Number of poles 12 Number of clamp positions per pole 2 Drill hole distance centrically 17.8 mm Height at lowest possible mounting height 24.4 mm Operating temperature -25 – 50 °C Connectable conductor cross section fine-strand without cable end sleeve 0 – 25 mm² Connectable conductor cross section fine-strand with cable end sleeve 0 – 16 mm² Length 206 mm Depth – mm Rated current In 101 A Width/grid dimension 31.8 mm Connectable conductor cross section solid-core 0 – 25 mm² Connectable conductor cross section multi-wired 0 – 25 mm² Explosion-tested version ‘Ex e’ No Closing plate required No Halogen free No Transparent No · Technical Data Sheet – Click to Download
